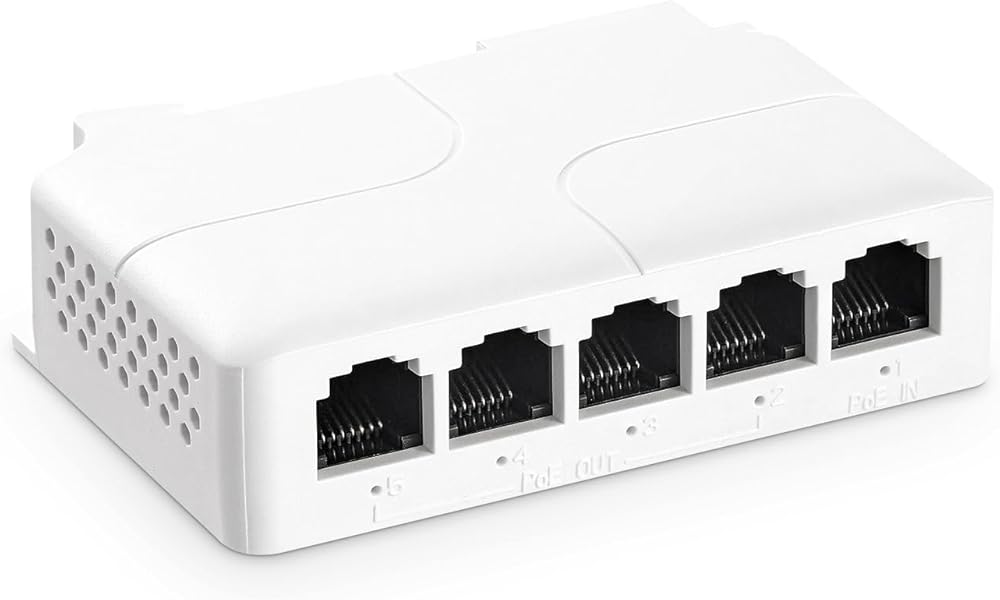

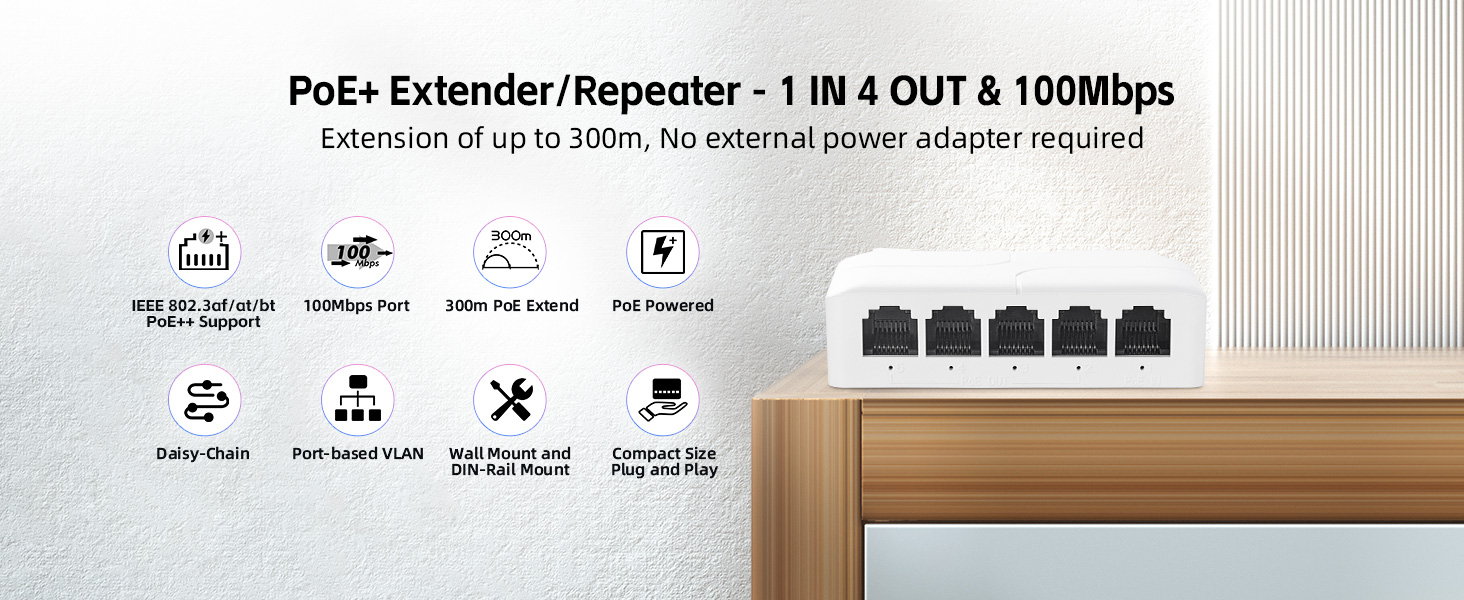

YuLinca 5 Port PoE Extender with 1 PoE in 4 PoE Out, IEEE 802.3 af/at/bt 90W PoE Repeater with 10/100Mbps, Wall and Din Rail Mount PoE Passthrough Switch

5 Channel PoE Extender: This 5 port PoE extender includes 4 PoE out and 1 PoE in. It can provides PoE power to up to four PoE devices, 10/100Mbps speed. Each POE transmission distance 100 meters (328ft), can extend to 250 meters at 10Mpbs.

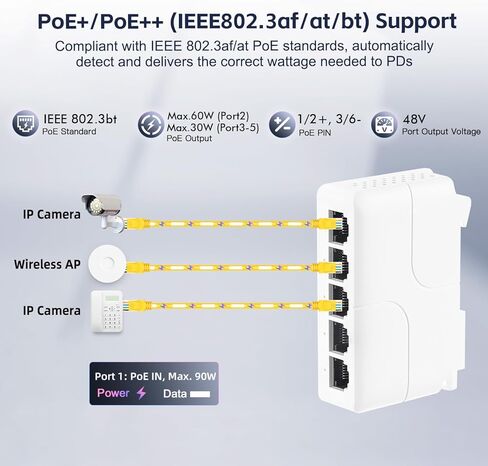

Compatible with IEEE802.3af/at/bt: This 5 port PoE extender works with standard IEEE802.3af/at POE switches.Input Port 1 IEEE802.3bt Max 90W, Output Port 2 IEEE802.3bt Max 60W, Output Port 3-5 IEEE802.3at Max 30W. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 4: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 3-5: 1/2 (+), 3/6 (-).
Unmanaged PoE Repeater: The passthrough PoE switch supports automatic detection of devices, no setup is required, no need for additional power adapter, powered by POE network, just need a network cable to expand PoE network, plug and play.

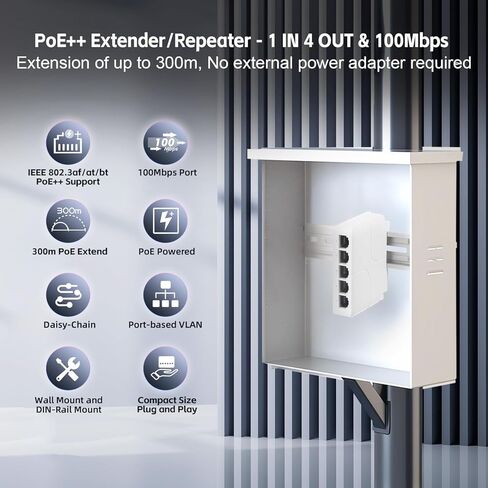

Flexible Installation: With its mini size, YuLinca PoE extender is supported wall mount and din rail mount, space saving, suitable for more positions.

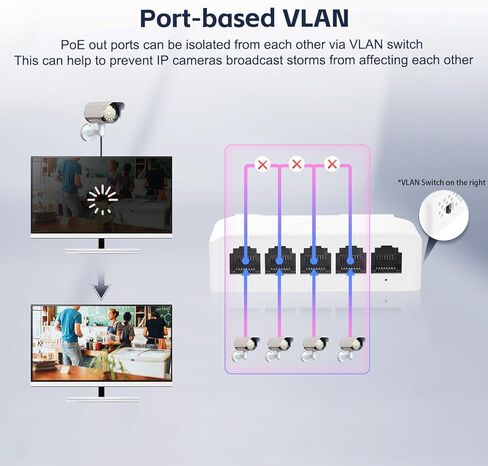

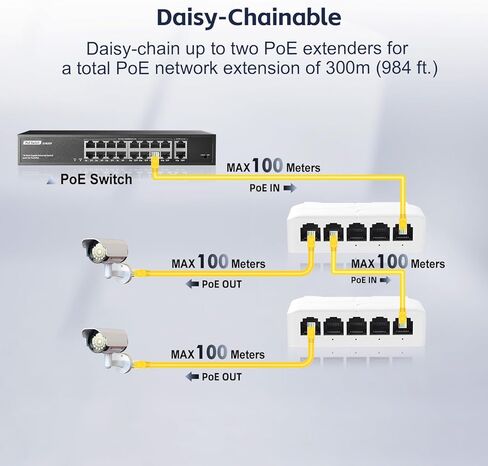

Widely Used: The passthrough PoE booster supports vlan mode and extend 250 meter, Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost.
