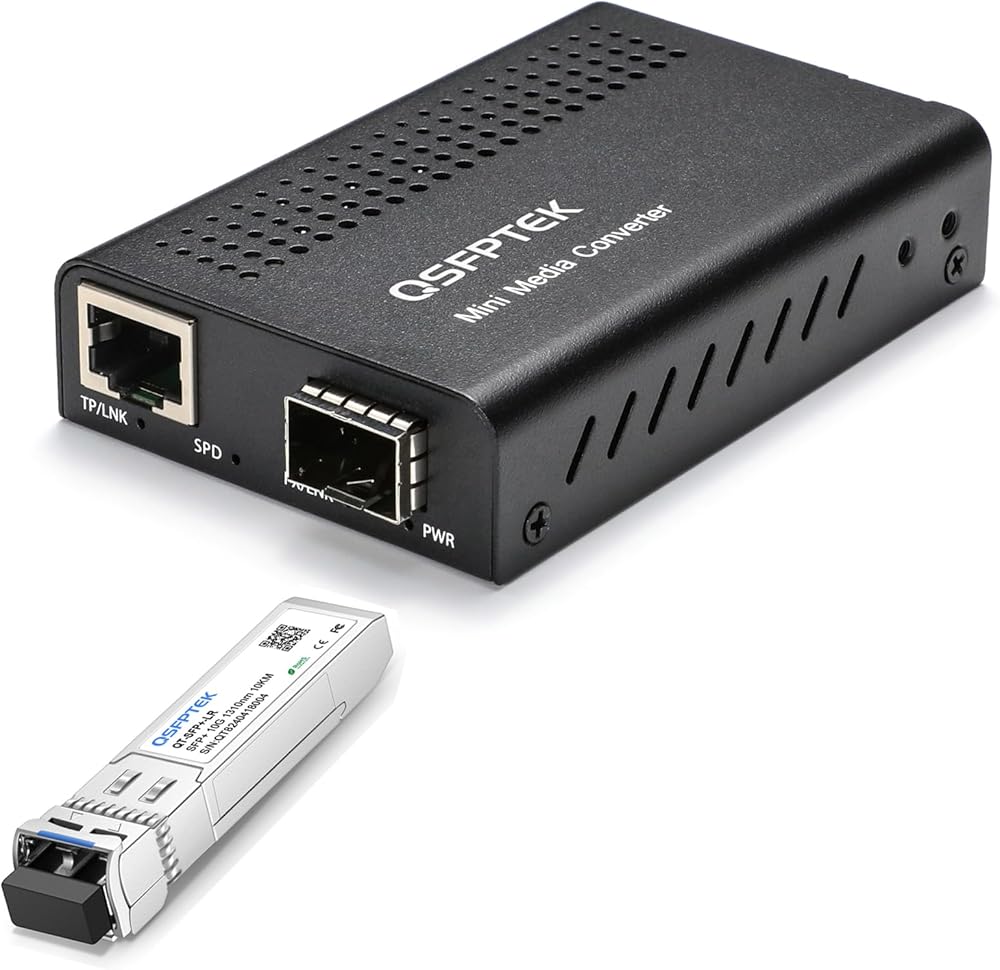

10G Media Converter with 10Gbse-LR SFP+ Module, RJ45 to SFP+ Fiber, 1 x 10G RJ-45 Port, 1 x 10Gbps SFP+ Slot, 10Gbe SFP Module for Cisco Power Adapter Included

KWD 61.500
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Supporting Auto-MDI/MDIX..10G base-T RJ-45 UTP port will autoadapt (autosense) to 1000Base-T, 2.5G Base-T, 5G Base-T and 10G Base-T connection at user side, but fiber port – slot accepts only 10G SFP+ (10 Gigabit) SFP+ transceivers only.

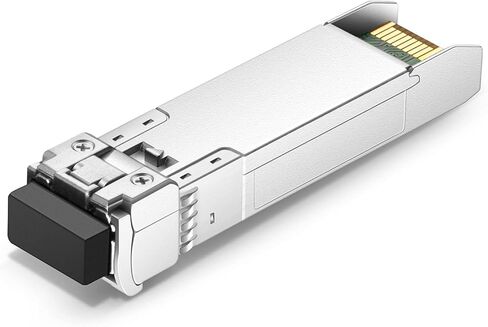

  • 10GBASE-LR SFP+ Module: 10Gb/s data rate, Single-Mode, duplex LC connector, 1310nm wavelength, the transmission distance up to 10km, working temperature: 0℃ ~ 70℃, Tx Power(dBm): -6.5 ~ -0.5, Rx Sens.(dBm): ＜ -14.4.
  • Support DDM: DDM (Digital Diagnostics Monitoring) allows you to monitor the critical information concerning the status of the transmitted and received signals of the transceivers in real-time to find out some potential problems.
  • Support IEEE 802.3x Flow Control, LFP/ALS Function & FX Speed are Optional. Support 1U 12 Slots Chassis & Stand-alone Use. Equipped with LED Indicates Diagnostic & DIP-switch Configurations Status
  • Convert & Extend: copper distance of your high speed 10gbps network connect far beyond – your SFP+ fiber transceiver distance is the only limit now.

Description

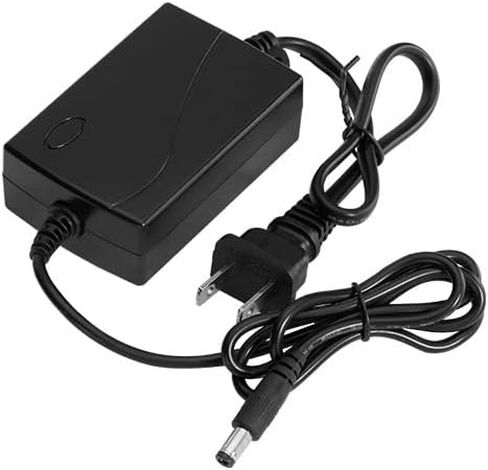

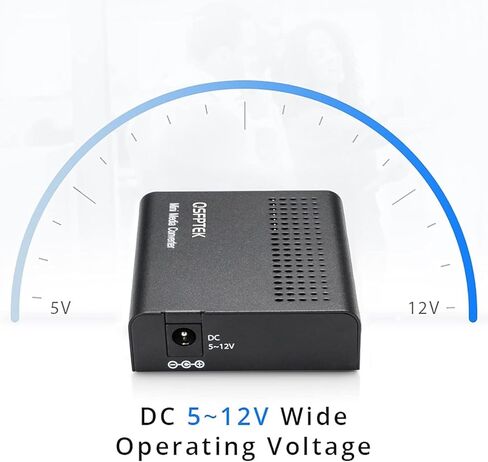

1x 10GBase-T to 1x 10GBase-X 1RJ45 and 1SFP+ Slots 10Gigabit Fiber Media Converter(10G, RJ45 to SFP+, AC 100V~240V or DC 5~12V）
Adpoted Optical - Electrical - Optical conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration.
On the existing network infrastructure, it can quickly improve the communication capacity in a cost-effective way, expand the bandwidth, while using ultra low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
The media converters are compatible with a wide range of SFP/SFP+ transceivers, such as 1000BASE SFP, 10G BIDI SFP, 10G CWDM SFP, 10G DWDM SFP+ transceiver modules, etc.

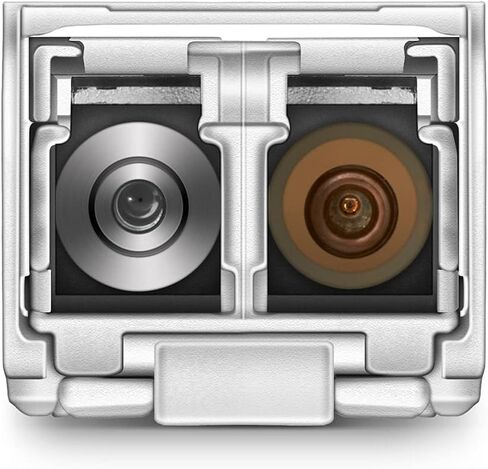

The SFP+ optical transceiver compatible Cisco SFP-10G-LR-S, it is equipped with an LC duplex connector, reaching a link up to 10km over OS2.

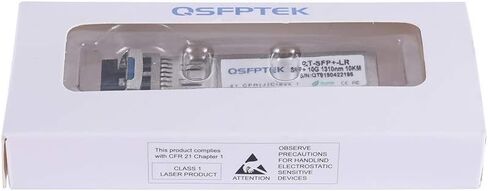

QSFPTEK manufactured 10GBASE-LR SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring.
This 10G SFP+ transceiver is applied in various application scenarios such as data centers, campus networks. It's also fully compatible with almost all Cisco devices.
