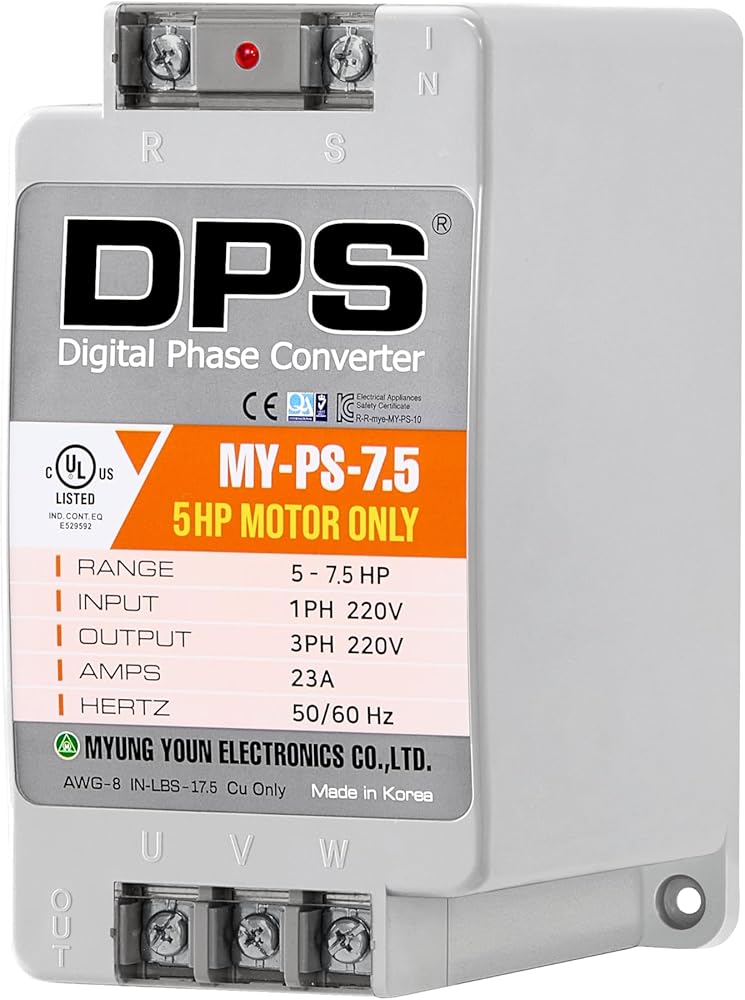

DPS Sinlge Phase to 3 Phase Converter, 7.5HP, 23A, Input/Output 200V - 240V My-PS-7.5 Model Used for 5HP(3.7kW) 15A Motor, DPS Must Be Used for 1 Motor Only, UL-Listed
Very easy to install and use/Compact size & lightweight
Safety covers are installed on the input and output terminals
Achieved UL listed(UL-US-2328605-1/UL-CA-2324527-1)
Even after the motor starts, 3-phase power continues to be supplied
Excellent starting power/Digital type phase converter
The sealed design blocks out dust, moisture and heat
No high frequency generation/Low power consumption
Designed for low failure rate/non-flammability
Efficiency is excellent versus others phase converters
Description

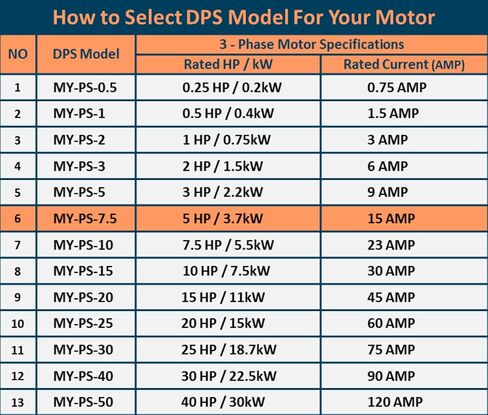

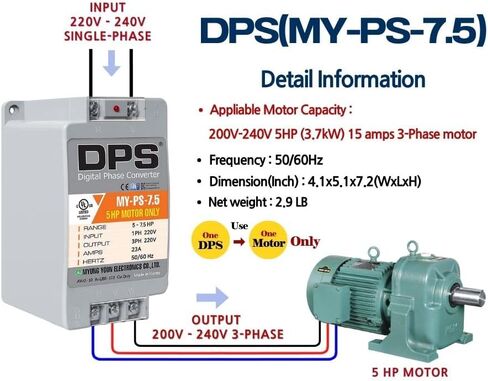

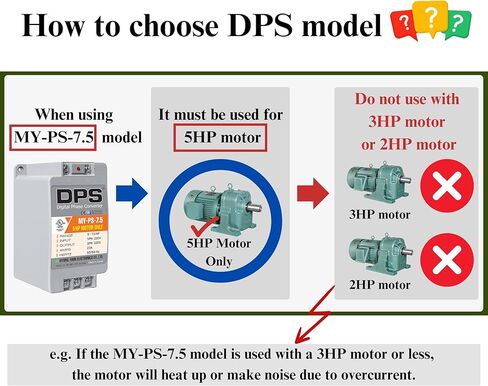

DPS is a device that supplies 3-phase 200V-240V to a 3-phase motor with a single-phase 200V-240V input. It is the first phase converter to receive UL certification, thereby enhancing safety, and is increasing customer satisfaction through strict quality control and customer management. MY-PS-7.5 model should be used for a 200V-240V 5HP(3.7kW) 15amps 3 phase motor. Check the motor's rated current(A), horsepower(HP), and voltage(V). DPS is a product that runs a 200V-240V 3 phase motor from single phase 200V-240V. The DPS is equipped with safety covers on the input and output for customer safety. One DPS must be used for only one motor. One DPS should never be used on multiple motors. If you are unsure about selecting a DPS model, contact the seller or manufacturer. After purchasing, thoroughly read the user manual enclosed with the product and then install the DPS on the motor. Installation method is simple. Simply connect the 2 input wires to the DPS input and the 3 wires of the motor to the DPS output.
