Driveway Security Sensor Doorbell

How to Use the Device

1.Insert the correct batteries (not included) into the detector.

2.Ensure the batteries are properly positioned.

3.Mount the detector in a suitable location, such as near the front door, window frame, driveway, walkway, backyard, or any other area where monitoring is needed.

4.Turn on the receiver and adjust the volume settings (high, medium, or low).

5.The remote detection system is now operational, utilizing infrared detection technology.

6.Place the receiver in an easily accessible location.

7.When the detector senses motion, the receiver will emit an audible alert, and the LED light will flash.

8.Allow 30 seconds after powering on the detector and receiver for the system to activate.

9.For optimal performance, install both units at least 3 feet above the ground.

Helpful Tips

● Avoid placing the detector in windy areas to prevent movement.

● Ensure there is a clear line of sight between the detector and the receiver for the best performance.

Care and Maintenance

1.Important: Keep the detector and receiver in sheltered areas to protect them from water and direct sunlight.

2.If the LED indicator does not light up, the batteries may be low or dead. Replace them as needed.

3.Regularly clean the detector with a damp cloth to prevent dirt or debris from blocking the sensor.

4.Avoid placing the device in areas where it may get wet. During heavy storms or snowfall, move the unit indoors or to a safe location.

5.Do not attempt to disassemble the units.

6.When not in use, remove all batteries, clean both units, and store them in a dry, cool place.

7.This device is not a toy and should be kept out of reach of children.

Specifications

● Receiver operating voltage: 110V-240V

● PIR sensor operating voltage: 4.5V (3 AAA batteries)

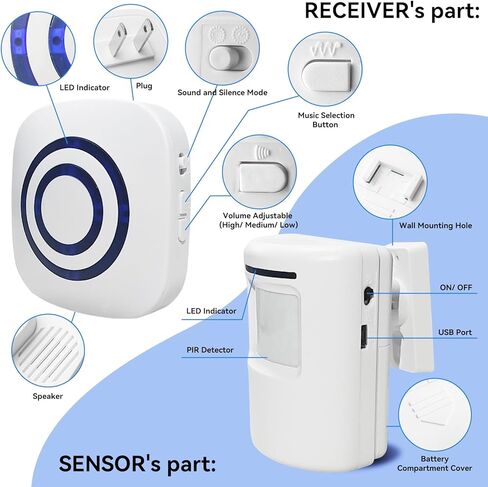

● Receiver settings:

a. Music source: 36 different songs available; use the external “music” button to select.

b. Volume adjustment: Three levels (high, medium, low).

c. Sound/silence mode: Adjustable.

● Working range: Up to 70 meters (230 feet)

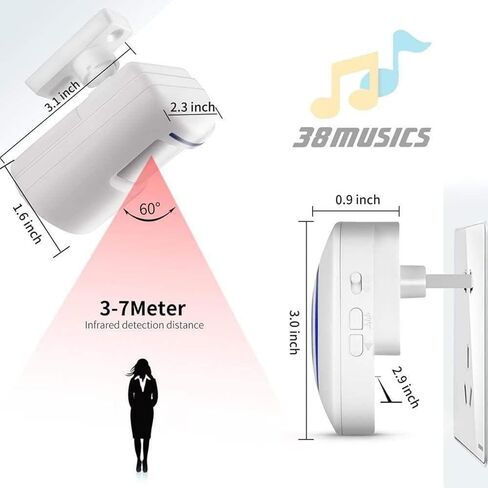

● Infrared sensing distance: 3-7 meters (10-23 feet)

● Receiver dimensions: 76 x 80 x 33 mm (3 x 3.15 x 1.3 inches)

● PIR sensor dimensions: 80 x 59 x 45 mm (3.15 x 2.3 x 1.8 inches)

● Package size: 17.5 x 11 x 7.5 cm (6.9 x 4.3 x 3 inches)

● Weight: 0.22 kg (0.49 lbs)
