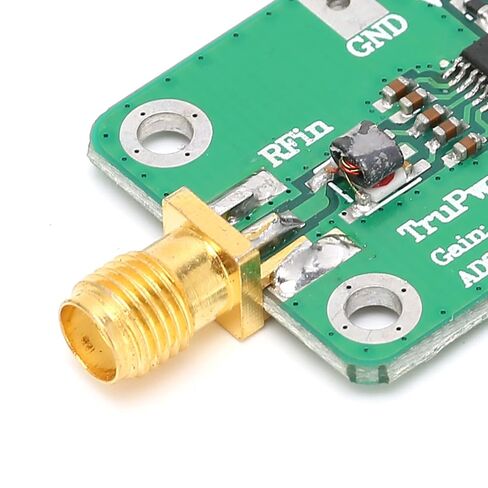

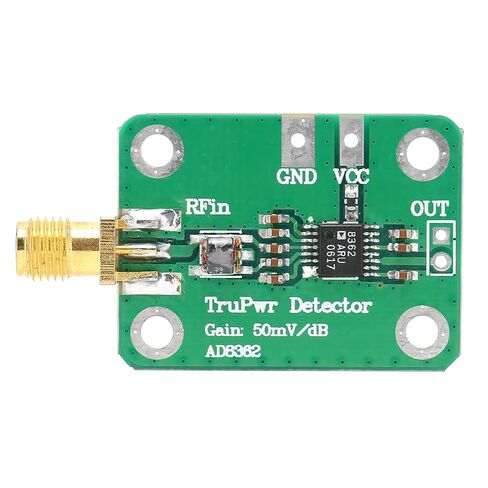

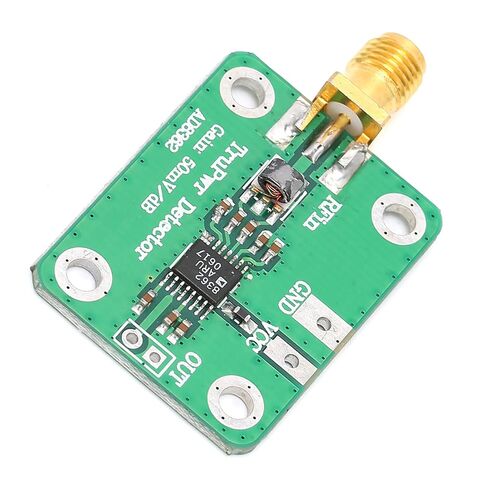

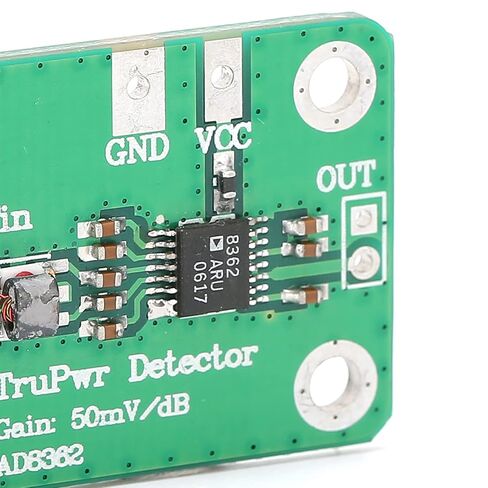

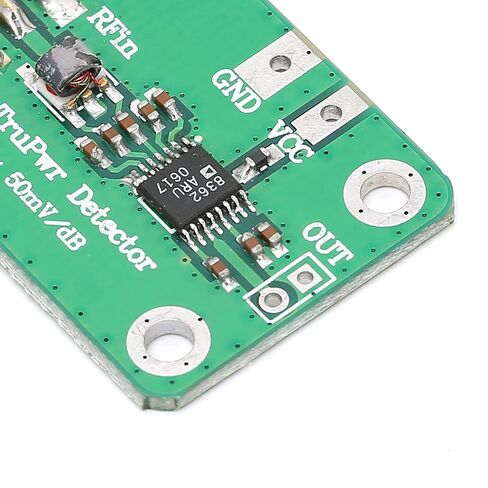

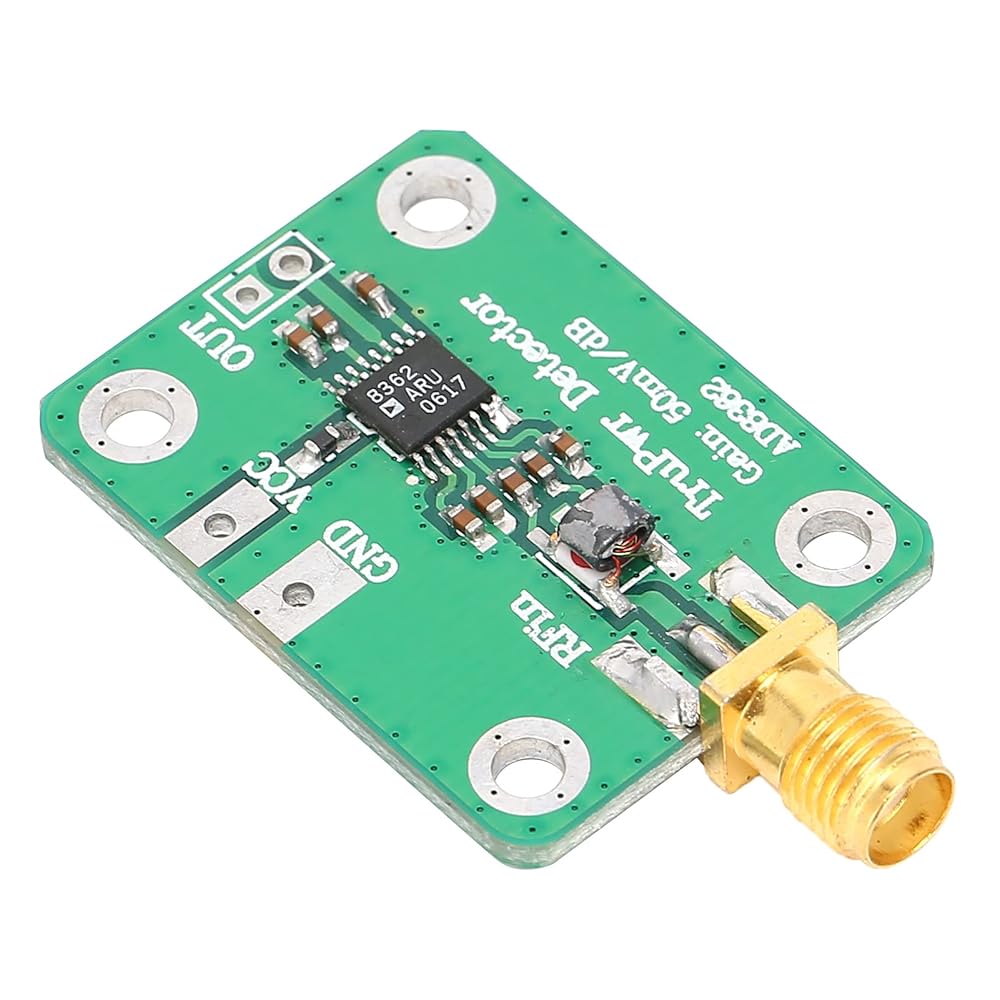

RF Detector Module, AD8362, 50Hz-3.8GHz, -52dBm to +8dBm, Green, Screw Connector, PCB Mount, 5.656V DC

KWD 5.500
Brand
Gemer
Category
Motion Detectors
Weight
6 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Premium Quality】The power meter can detect a RF of power from -52 dBm to +8dBm and convert the RF into a DC voltage output, which has passed strict quality control, you can use it with confidence. Suitable for IS95, CDMA2000, 3GPP, GSM/EDGE, MMDS and other broadband access equipment.
  • 【Product Brief】This logarithmic detector is used for RF power detection with detection Operating Frequency 50Hz-3.8GHz. The detection slope of this input can be from -52 dBm to +8dBm. The detector module is mainly used to detect some useful information in fluctuating.
  • 【Widely Applications】Widely used in RF detection, power measurement, environmental field strength detection, rf power detector can also be used as part of automatic gain control and automatic level control. The detector module is small and compact, easy to install and use, and has strong practicability.
  • 【Advantages】The larger the RF amplitude or power is, the higher the output voltage is, which is proportional to the logarithm of the input amplitude, thus enlarging the dynamic range of the detected. This module is suitable for wide‑band power detection, with flat input and output response.
  • 【EXCELLENT MATERIAL】The RF detector is made of high quality circuit board, stable and reliable. Can detect the RF power of complex modulated , including CDMA, W‑CDMA, 8PSK, QAM and OFDM. As a reliable seller, we always do our best to provide good quality and excellent service for our customers.

Description

1. The detector module is mainly used to detect some useful information in fluctuating .
2. This module is suitable for wide?band power detection, with flat input and output response.
3. Suitable for IS95, CDMA2000, 3GPP, GSM/EDGE, MMDS and other broadband access equipment.
4. Can detect the RF power of complex modulated , including CDMA, W?CDMA, 8PSK, QAM and OFDM .
5. The detector module is small and compact, easy to install and use, and has strong practicability.

Spec:
Item Type: Detector Module
Material: PCB
Model: AD8362
Operating Frequency: 50Hz-3.8GHz,
Input Range: 60dB, at 50?, the input can be from -52 dBm to +8dBm.
Working Mode: VOUT and VSET

PackageList:
1 x Detector Module

Note:
1. Do not use overload
2. Do not use over?voltage
3. Do not use over current
