Douk Audio L1-MiINI Stereo Line Level Booster Amplifier Audio Preamp 20dB Gain + Volume Control

KWD 16.500
Brand
Douk Audio
Category
Home Theater
Weight
301 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

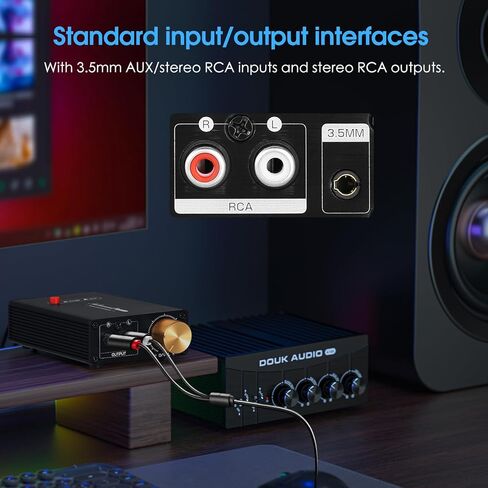

  • Standard input/output interfaces: with 3.5mm AUX/stereo RCA inputs and stereo RCA outputs, can be compatible with most low-volume audio sources such as ipod, ipad, phone, TV, MP3 player, potable CD player, computer, video game etc., and boost their output to the level needed to drive amplifier or speakers.
  • Adjustable gain and voltage boost circuit: with built-in amplification and voltage boost circuit, adjustable gain to match better with different audio sources, while L1 MINI can always work at a high voltage of 26V to provide ±12.5V high output amplitude and max 20dB high gain.
  • Unique design and HiFi clear sound: double-side PCB design, NE5532P op amp with pluggable socket design, convenient to upgrade other dual op amps to bring more playability. The high-quality sealed potentiometer ensures a wide frequency range and excellent dynamic response, delivering smooth, warm, and natural sound with ultra-low distortion.
  • Versatile application scenarios: perfect for boosting the volume of portable audio devices to match home stereo systems, enhancing karaoke or CD/DVD players for lively parties, and providing external volume control for audio sources lacking adjustments, ideal for mixer or speaker setup, audio recording, party, live stage event etc.
  • Super mini size with durability: with a compact size, it is easy to carry and fit into any audio system without taking up much space, perfect for on-the-go use. The all-metal design ensures durability while shielding electronics from electromagnetic interference and reducing noise.

Description

Introduction:

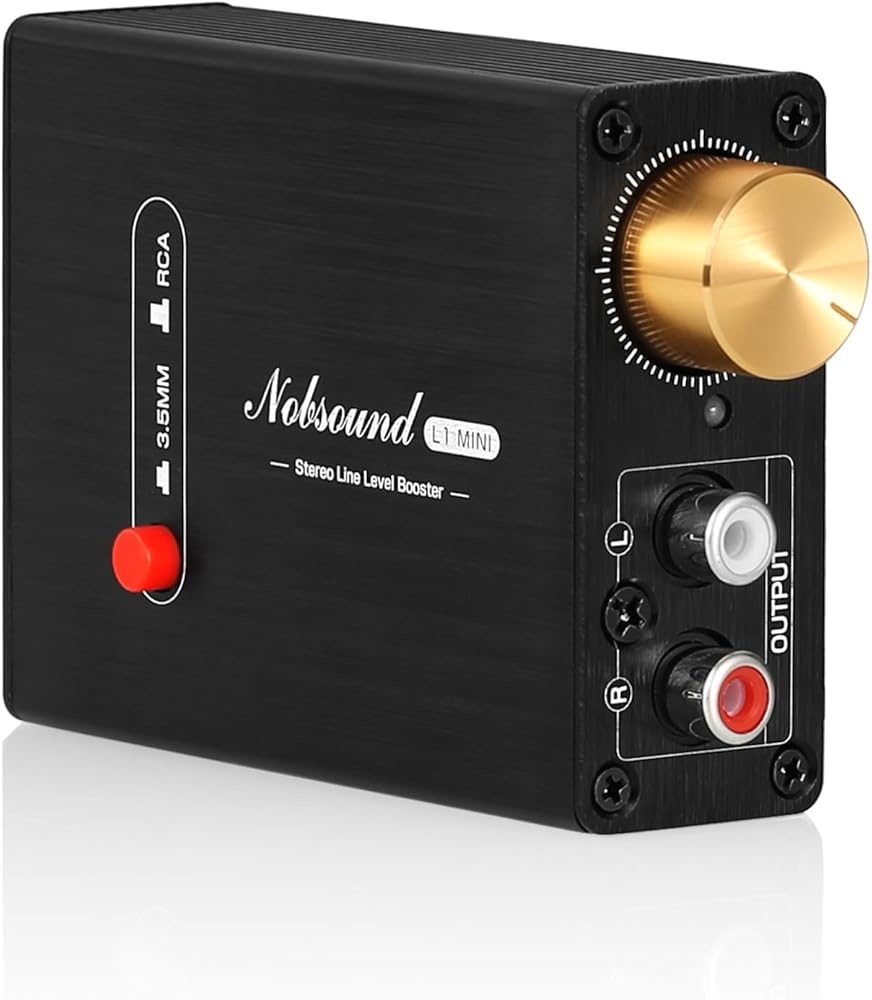

Douk Audio L1 MINI is an upgraded version of L1, featuring a more compact size and simplified interfaces. It is a stereo amplifier with built-in voltage boost and amplification circuits, designed to boost the output of virtually any line level audio source (such as TV, video games, MP3 players, iPod, phone, tablet, etc.) to max 20dB. L1 MINI features its wide gain range, wide frequency response, excellent S/R and HiFi sound, to bump the output level of the audio devices which are with an inherently low level output so as to match other sources, or to allow the use of a longer cable run than normal between components.

Warm Tips:

Equipped with USB to DC cable, NOT include power adapter, can use phone charger/power bank to power it.
It is not recommended to use computer to power L1 MINI, as it may cause noise interference.
Parameters:
Audio input: 3.5mm AUX / Stereo RCA
Audio output: Stereo RCA
Gain: 10 times, 20dB (adjustable)
Frequency response: 20Hz-20KHz
THD: 0.06% Max
S/N ratio: ＞90dB
Input sensitivity: 150mW/50KHz at 1KHz
Max output amplitude: ±12.5V
Input voltage: DC 5V (≥350mA)
DC plug size: 5.5*2.5mm
Working voltage of amplification part: DC 26V
Dimensions (W*D*H): 65 × 89 × 27mm / 2.56 × 3.50 × 1.06in
Package dimensions (W*D*H): 130 × 80 × 90mm / 5.12 × 3.15 × 3.54in
Net weight: 141g / 0.31lb
Package weight: 300g / 0.66lb

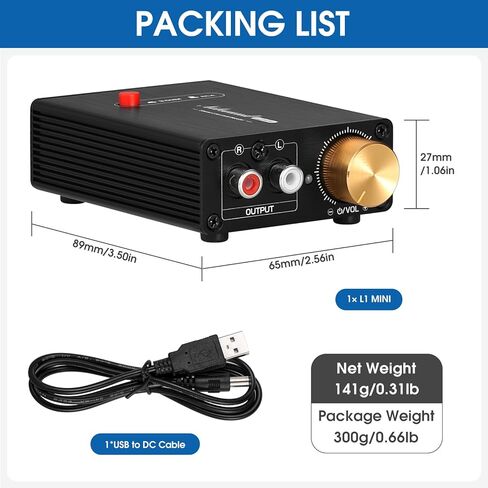

Packing List:
1 * L1 MINI Stereo Line Level Booster
1 * USB to DC Cable
Who Needs Douk Audio L1 MINI Stereo Line Level Booster?
Want to correct the sonic mismatch issues that often cause the output volume of portable players/MP3/computer lower than other home audio devices, resulting in distorted sound performance.
Want to enhance the output level of karaoke players or CD/DVD player to transform your stereo music to thrilled sound for party or outdoor events, provide low-noise and high musical accuracy for listening and recording.
Want to provide an external way of volume control for any audio source device or stereo amplifier that has no output level or volume adjustment of its own.
