34 mm Tube Model 3 - 20 MOA Elevation Compensation Black

KWD 13
Brand
WestHunter
Category
Shooting
Weight
230 g
– 1 +

Special Features

  • The offset cantilever design enhances shooter comfort with improved head positioning, visibility, and a wider range of eye relief adjustments to suit varying shooter preferences
  • Precisely CNC machined from 6061 T6 aircraft-grade aluminum alloy, finished with high-level anodizing for a distinctive appearance and enhanced durability, this mount has passed rigorous tests for accuracy and stability
  • The rigid unibody design, ensuring the solidity of the scope mount, incorporates additional CNC machining to remove excess aluminum alloy material, ensuring a lighter scope mount
  • Triple screw design ensures maximum stability, with three recoil lugs seamlessly fitting into standard Picatinny rail slots without wobbling, guaranteeing zero hold even under heavy recoil
  • Designed for a 30mm tube, this mount weighs 160g (5.64oz) and measures 133mm (5.24 in) in length. It offers over 2 inches of forward cantilever and a center height of 38mm (1.5 in). The upper and lower bolts need torque values of 18 in-lbs and 30 in-lbs respectively

Description

This WestHunter Optics scope mount series offers a range of options to tailor your scope for a perfect fit, providing choices like 20MOA elevation, Bubble Level, or a combination of both. Select from our Basic model or the Advanced model for enhanced features. Available in two sizes: 30mm tube and 34mm tube, with a center height of 38mm (1.5 inches).

Crafted from precision CNC machined 6061 T6 aircraft-grade aluminum alloy, this mount guarantees durability and longevity. Its triple screw structure at the base ensures maximum stability. Torque values for the upper and lower bolts are set at 18 in-lbs and 30 in-lbs respectively, ensuring a secure and stable installation. This mount is compatible only with standard 20mm Picatinny rails.

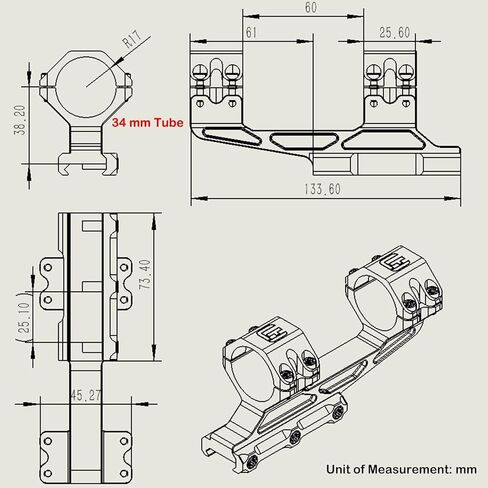

Details:
Model:
30mm Tube: WH-305/WH-305B/WH-305M/WH-305BM
34mm Tube: WH-306/WH-306B/WH-306M/WH-306BM
Net Weight: 160g / 5.64 oz
Length: 133 mm / 5.24 in
Forward Cantilever: 61 mm / 2.4 in
Center Height: 38mm / 1.5 in
Color: Black/Blue/Brown/Red(Magenta)
Tube Fit: 34mm/30mm (1.34 in/1.18 in)
Rail Fit: Standard Picatinny Rail
Material: 6061 T6 Aircraft Grade Aluminum Alloy
Package Includes: 1 x Scope Mount & 1 x "Allen Key"

Special Note:
Please note that due to lighting differences, the product in the image may slightly vary from the actual product. Additionally, manual measurements could result in minor deviations in product parameters.
