⭕⭕⭕Specification:

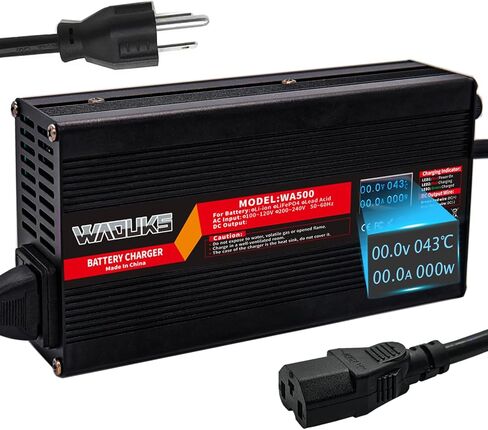

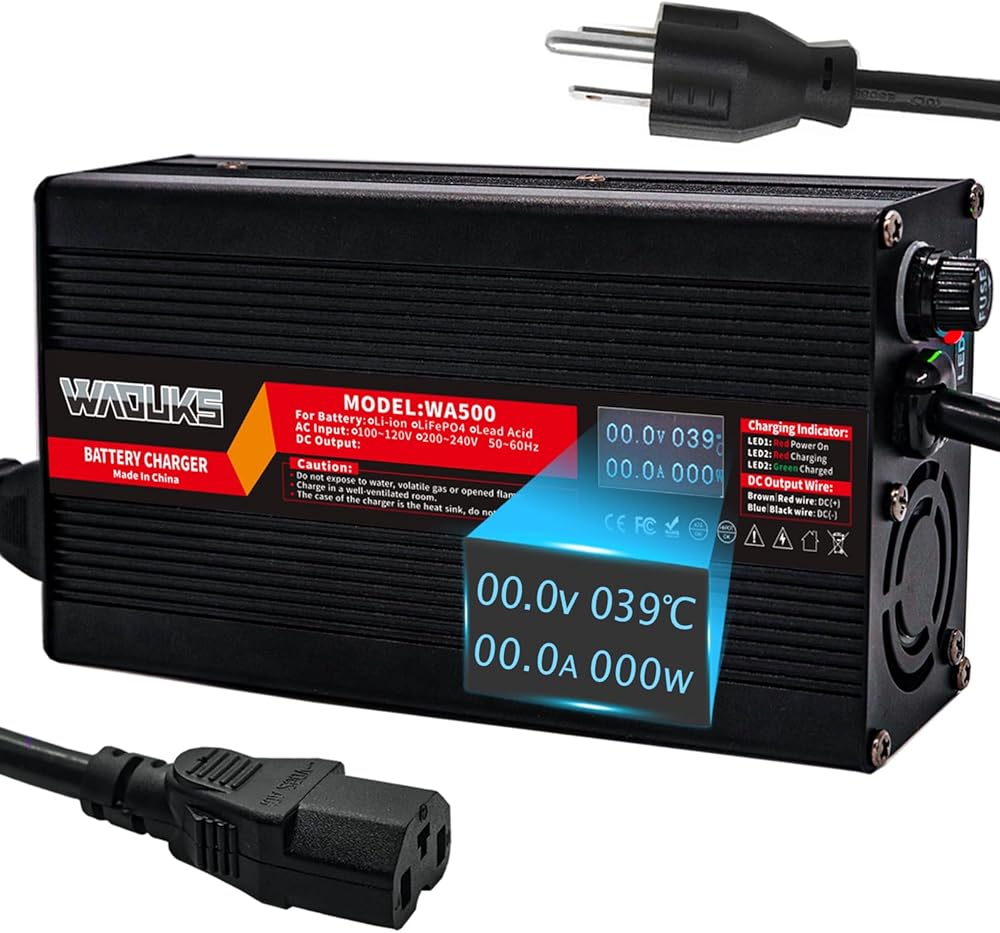

Product Name: 87.6V 5A Charger

Model: WA500-87605B

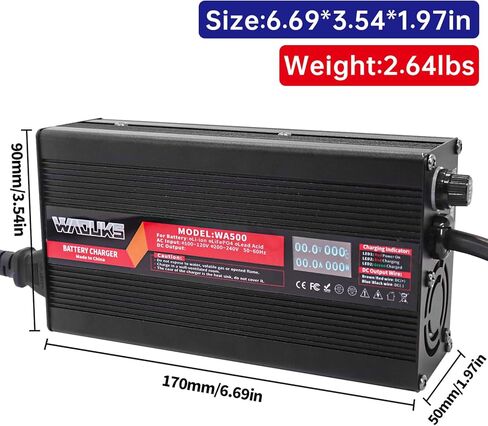

Dimensions: 170x90x50mm

Color/Material: Black/Aluminum Case

Product weight: 1.08 kg

Suitable for Battery type: 24S 76.8V LiFePO4 Battery

AC Input: 100~120Vac, 50~60Hz

Output Voltage: 87.6 Volt

Output Current: 5 Amp

Battery Protection: SCP,OVP,OCP,OTP

Charging Mode: Constant current - Constant Voltage - Trickle: three-stage intelligent charging

Charging efficiency: ≥85%

Working temperature: -5 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

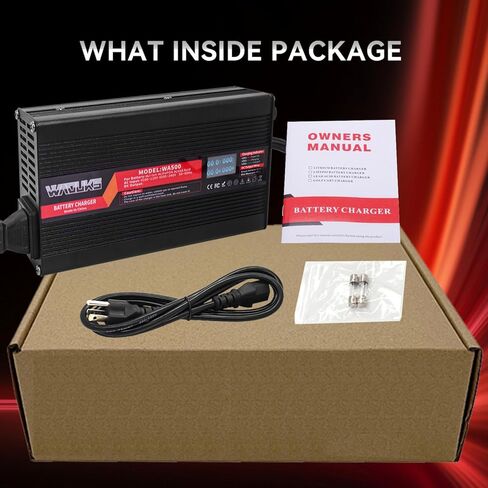

Package:

1* 87.6V 5A charger

1* US standard power cable

1* Operating manual

1* Fuse for replacing
✅✅✅
