Compatility - Widely compatible with 5G M.2(NGFF) modules like Quectel RM500Q Series, Fibocomm FM160 Series etc.
Application - Applicable for quick network connection which enables you to let your PC connect to 5G network directly after installing matched M.2(NGFF) module(EXCLUDED) and corresponding driver.
Reliability - Adopts industrial electric circuit design, DC-DC power chip and two external tantalum capacitors to make sure the module can always be working fine and never offline even under severe environment.
Principle - The interface definition of NGFF(M.2) is USB signal and 3.7V, the input voltage 5V by USB will be converted into 3.7V via DC-DC power chip to power on module and UIM/SIM card. (The working voltage of 3G/4G module is 3.3V-4.2V). Besides, it can be powered by Type-C but it only supports USB2.0.
Interfaces - Equipped with M.2 factor and USB3.0 connector, which can support Quectel RM500Q 5G M.2(NGFF) module. It also supports USB3.0 protocol and hot-plugging for SIM card. It adopts NANO socket in Push-Push type. It's recommended for users to buy antennas yourself.
Description
Advantages
This adapter's design is based on indutrial electric circuit, DC-DC power chip and 3.5 synchronized current.
It's well compatible with 5G IoT M.2(NGFF) module like Quectel RM500Q, FIBOCOMM FM160 Series etc.

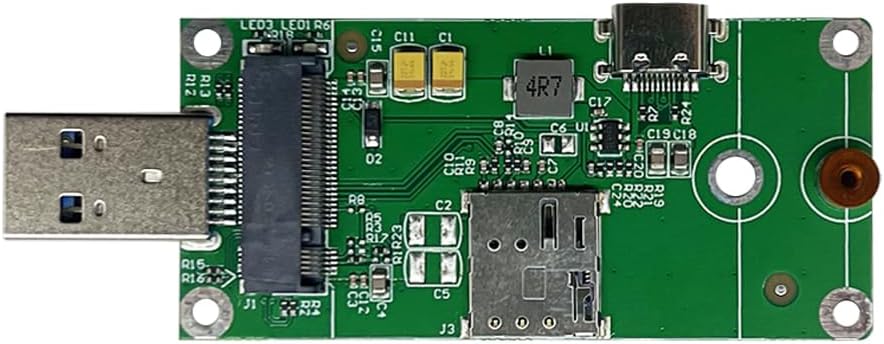

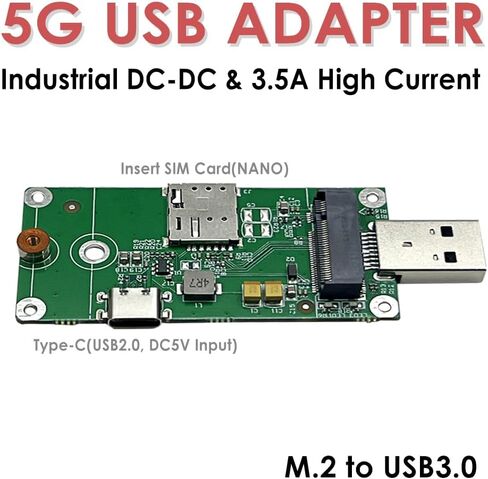

It's equipped with M.2(NGFF) factor, USB 3.0 connector(USB 2.0 compatible) and NANO SIM card slot(Push-Push Type), Type-C(USB2.0).
The hot-plugginig for SIM card is supported.
With DC-DC power chip equipped, the voltage source will be stable to power on module and UIM/SIM card continuously.
It also adopts high current as it is another key factor to make sure module is always online even under severe environment.
Specificiation
Basics
Model: 5GM2T
Dimension: 66mm(L)x32mm(W)
The design of NGFF(M.2) is compliant with industrial criteria.
Applicable for modems with dimension 2242 or 2252(4G/5G modems).
LED indicator will be always on when it is working.
Pure hardware desgin, but it's necessary to install related drivers which is depending the module you mount.
Package Contents
1x 5G LTE Industrial M.2(NGFF) to USB3.0 Adapter(Packed in Antistatic Bag)
1x Matched Screw
