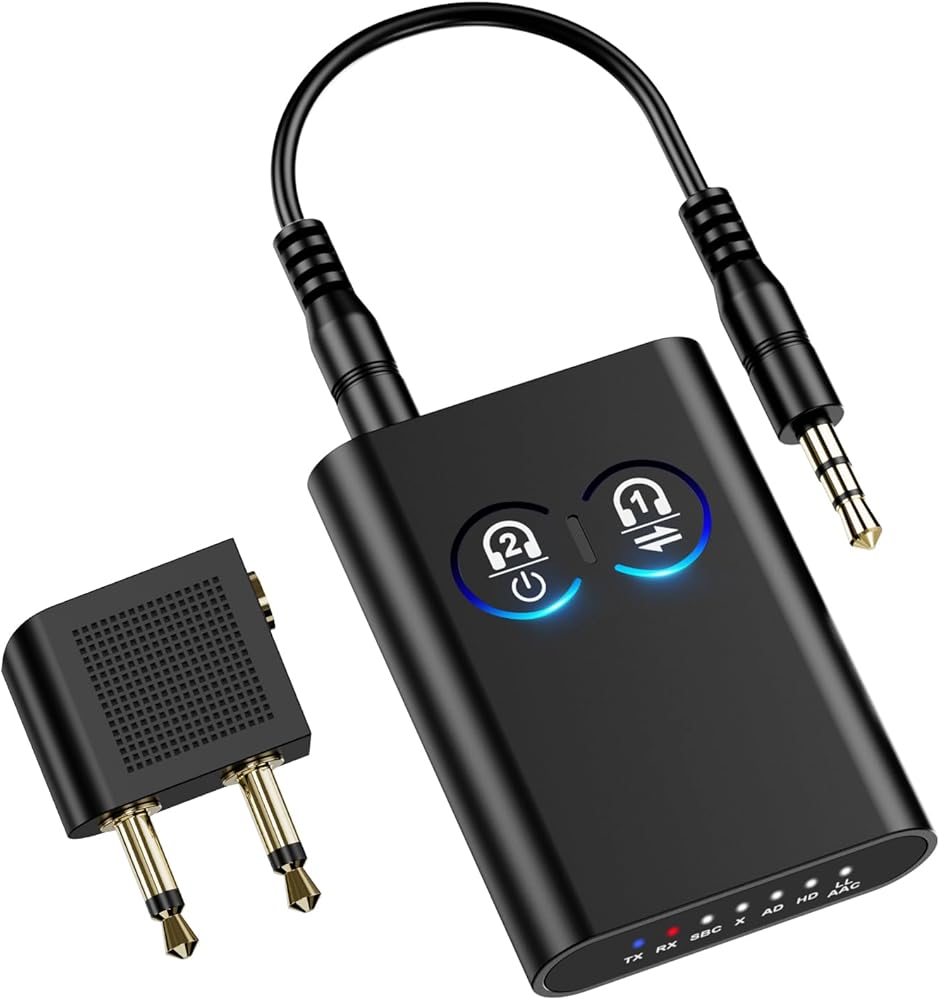

OQIMAX Bluetooth 5.2 Adapter – Transmit & Receive in One
Upgrade non-Bluetooth devices with seamless audio transmission. Includes an airplane headset adapter, no extra purchase needed.

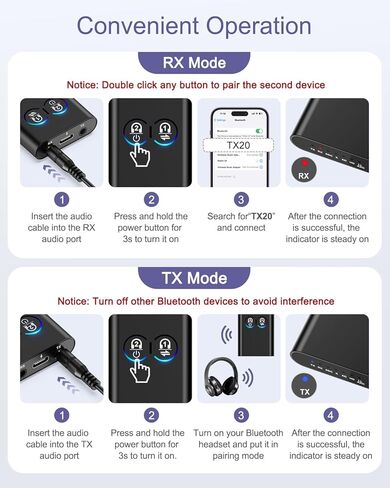

How to Use

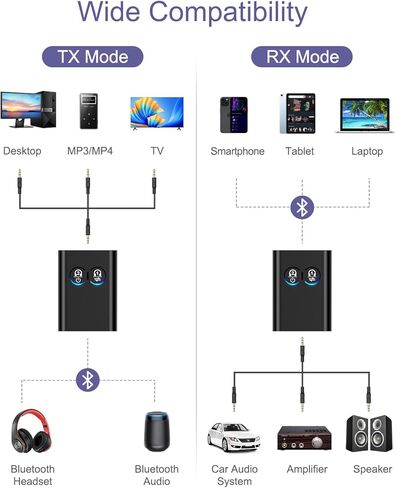

TX Mode (Transmitter)
1. Connect to the TV's 3.5mm jack via an audio cable.
2. Press 3s to turn on, then double-click to enter pairing mode (red & blue LEDs flash).
3. Set your Bluetooth headphones/speaker to pairing mode, wait for connection (blue LED stays on).
RX Mode (Receiver)
1. Connect to an amplifier or powered speaker via 3.5mm cable.
2. Press 3s to turn on, then double-click to enter pairing mode (red & blue LEDs flash).
3. Enable Bluetooth on your phone/tablet, select "YET-TX20", and wait for connection (blue LED stays on).
Pairing a Second Device
1. Double-click any button to enter pairing mode.
2. In TX mode, set the second receiver to pairing. In RX mode, search for "YET-TX20" on a second phone.
Specifications
Bluetooth version: Qualcomm 5.2

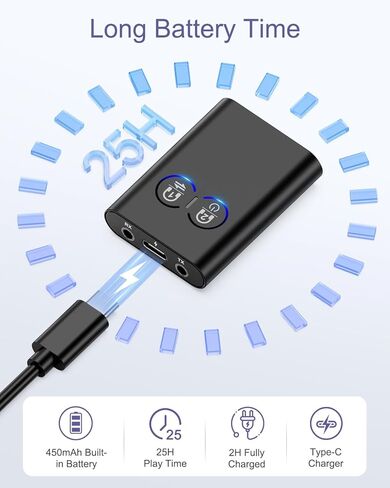

Playtime: 20-25H | Charging time: 2-3H
Range: 10m
Red LED on while charging, off when fully charged.
TX Input: AUX/USB | RX Output: AUX
Size: 52×38×11mm
Important Notes
1. Not compatible with S-O-N-Y devices.
2. To use aptX Low Latency, your Bluetooth device must also support it.
3. Not recommended for musical instruments (e.g., guitars, pianos).
4. Not recommended to use while charging.
5. To reset, hold the power button 7s (all LEDs will light up).

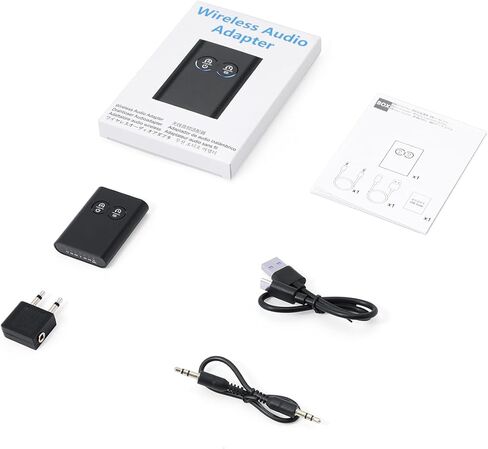

Package Includes
Bluetooth Adapter ×1
Type-C Cable ×1
AUX Cable ×1
Dual Audio Adapter ×1
User Manual ×1
