SUPERBAT 4G LTE Cellular GPS Combined Antenna Fixed Bracket Wall Mounting SMA Male MIMO Antenna Compatible with 4G LTE Industrial Gateway Mobile Router Trail Camera Modem Vehicle Real Time Tracking

KWD 11.500
Brand
Superbat
Weight
120 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Active GPS Navigation and MIMO 4G LTE Cellular Omni-directional Combined Antenna;Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 2 x Screws (As the Picture Shown)

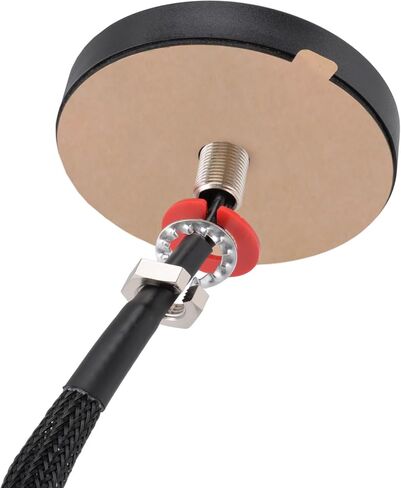

  • Feature: 2 x MIMO 4G LTE Cellular Antenna + 1 x GPS Antenna; Mounting: Through Hole Fixed Bracket Wall Mounting; Connector: SMA Male Connector; Cable Length: 3 bars 3 Meters/10ft Cable
  • Durable Design: The outer layer of the cable is added with high temperature resistant, high quality braided mesh, which is not easy to break during use and protects the coaxial cable from mechanical abrasion, prolonging its service life
  • Compatible with: Vehicle Car 4G LTE TCU Telematics; 4G LTE GPS Tracker Locator; Vehicle Car Real Time Tracking; Vehicle RV Bus Truck Boat Mobile DVR Camera Security Real Time Video Recorder; Bus Truck RV Van Security Alarm System
  • Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Industrial Vending Machine DTU Gateway Modem Terminal Server; Trail Camera;4G LTE Industrial Gateway Mobile Router;

Description

Specifications:

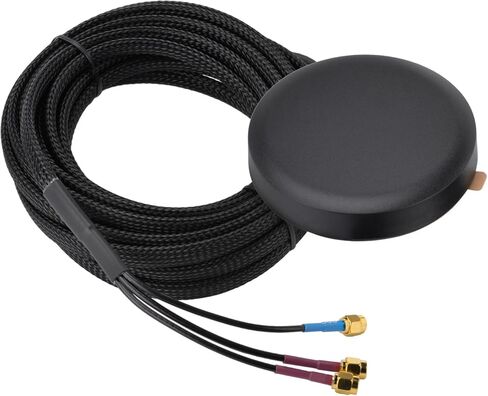

2 x 4G LTE Cellular MIMO + 1 x GPS Combined Antenna;
4G LTE Cellular Antenna Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: Polarization: Linear
Gain: 5dBi
Impendance: 50Ω
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width： >9MHz
Polarization: RHCP
Gain: 2dBic（Zenith）
V.S.W.R: Impendance: 50Ω
Axial Ratio: 3dB（max）
LNA Gain: 28±2dB
LNA Noise Figure: LNA V.S.W.R: LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA
Mechanical:
Cable: RG174 coaxial cable
Cable Length: 3 Meters/10ft

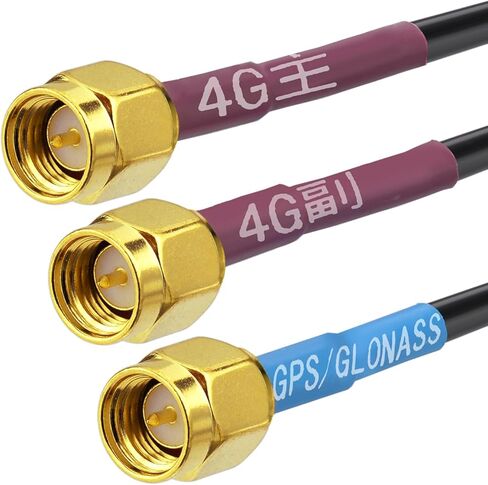

Connector: 3 SMA Male Connector
Material: ABS

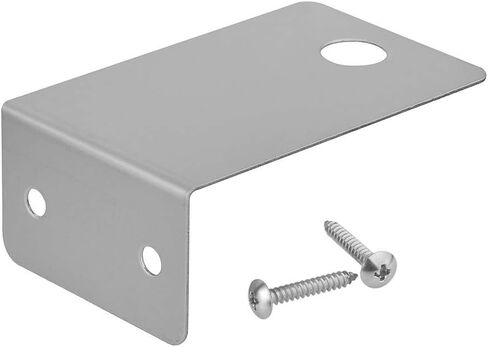

Mounting Method: L-Bracket Fixed Wall Mounting
Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 2 x Screws
