Feature:

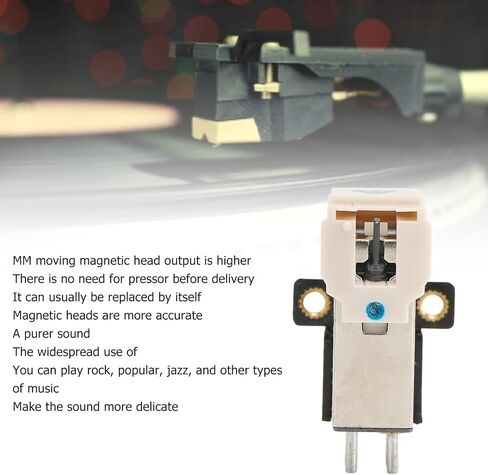

1. High Output, High Accuracy: MM moving magnetic pickup head has a high output, so it doesn't need a . Before shipment, the pickup needle can usually be replaced by itself. The magnetic head is more accurate and the sound is purer.

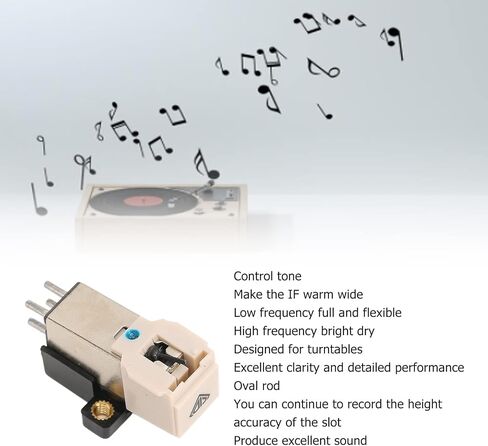

2. Delicate Sound: Cartridge plays rock, popular, jazz and other types of music to make the sound more delicate. The magnetic head can better control the timbre, making the intermediate frequency warm and wide, the low frequency full and flexible, and the bright and dry.
3. Fine Crafts: Cartridge is specially designed for turntable, with excellent clarity and detailed performance. Oval rod, can continue to record the height accuracy of the , and produce excellent sound. The clips are carefully assembled to improve durability.

Specification:
Item Type: Cartridge
Material: ABS

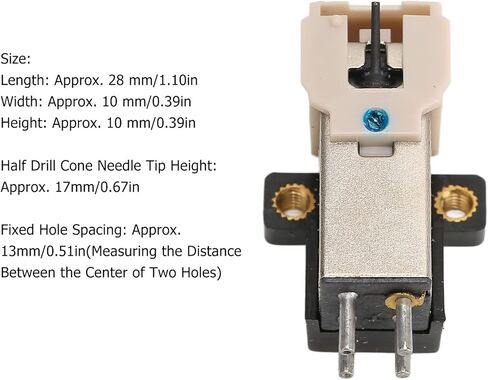

Size: Approx. 28x10x10mm / 1.10x0.39x0.39in
Fixed Hole Spacing: Approx. 13mm/0.51in (Measuring the Distance Between the Center of Two Holes)
Type: Magnetic Head, Pickup (Pickup)
Driving Mode: Electromagnetic
Number of Channels: Two Channels (Stereo)
Needle Tip: Half Drill Cone Needle Tip
Needle Bar: PPS
Height (mm): Approx. 17mm/0.67in
Output Level: 3. 2mV|(1khz. 5cm/s)
Dc Internal : 325Q
The Frequency: 20- 20KHz ±1dB
Channel Resolution: > = 23dB
Balance Between Left and Right Channels: Load Impedance: 47 KΩ
Load Capacitive Reactance: 100pF- 200pF
Recommended Needle Pressure: | 2.7g
Effective Needle Pressure Range: 2.3-3.3g
State Cycle: 20H

How to Use:
Takeouttheproductanduseit.

Package List:
1 xCartridge
2 x Screws

Note:
Please allow some error for manual measurement.
