67.2V 5A Charger 60V Li-ion Battery Smart Charger Output 3pin XLR Connector Used for 16S 60V Li-ion Battery with OLED Display

⭕DC Connector plug by default is sent by product image: 3pin XLR 1+ 2- ,✅
⭕AC Input: 100~120Vac, 50/60Hz; DC Output: 67.2 Volt/5 Amp, Provide 1* US standard power cable and 2* Fuse Can be Changed By Yourself✅
⭕Three-stage Intelligent Charging Mode: Constant Current - Constant Voltage - Trickle to Ensure Battery Fully Charged✅
⭕Fully charged Auto-stop,Over voltage,Over Current,Short Circuit Protection,and Reverse Protection✅
⭕With LED Indicator light and Cooling Fan, Aluminum Shell Beautiful and Durable, Cooling Faster✅

⭕⭕⭕

Specification:

Product Name:67.2V 5A Charger

Model: WA500-67205B-XLR

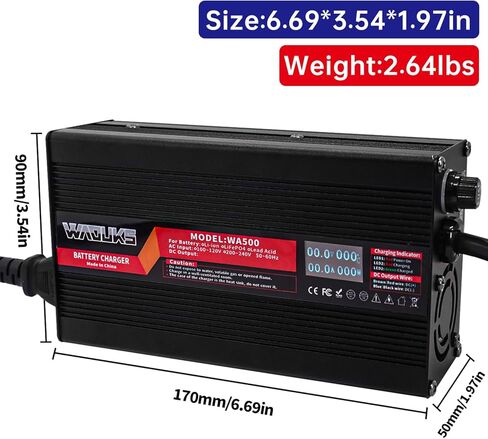

Dimensions: 180x90x63mm

Color/Material: Black/Aluminum Case

Product Weight: 1.2kg

Suitable for Battery type: 16S 60V Li-ion Battery Pack

AC Input: 100~120Vac, 50/60Hz

Output Voltage: 67.2 Volt

Output Current: 5 Amp

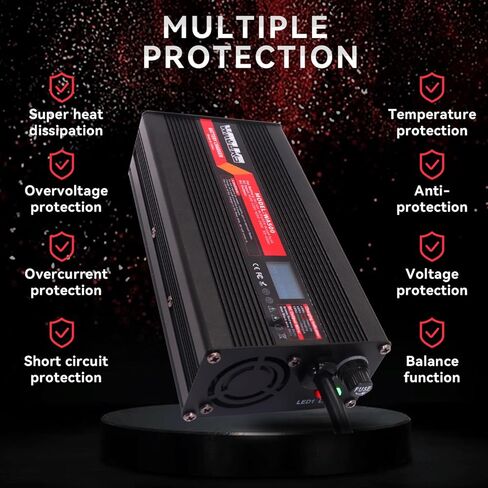

Battery Protection: SCP,OVP,OCP,OTP

Charging Mode: Constant current - Constant Voltage - Trickle : Three-stage intelligent charging

Charging efficiency: ≥85%

Working temperature: -5 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

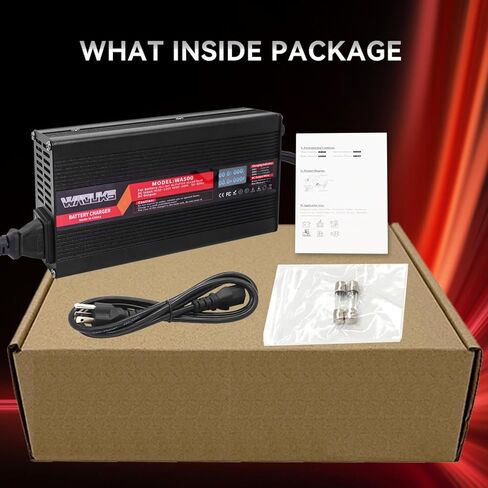

Package:

1* 67.2V 5A Charger

1* US standard power cable

1* Operating manual

2* Fuse for replacing
