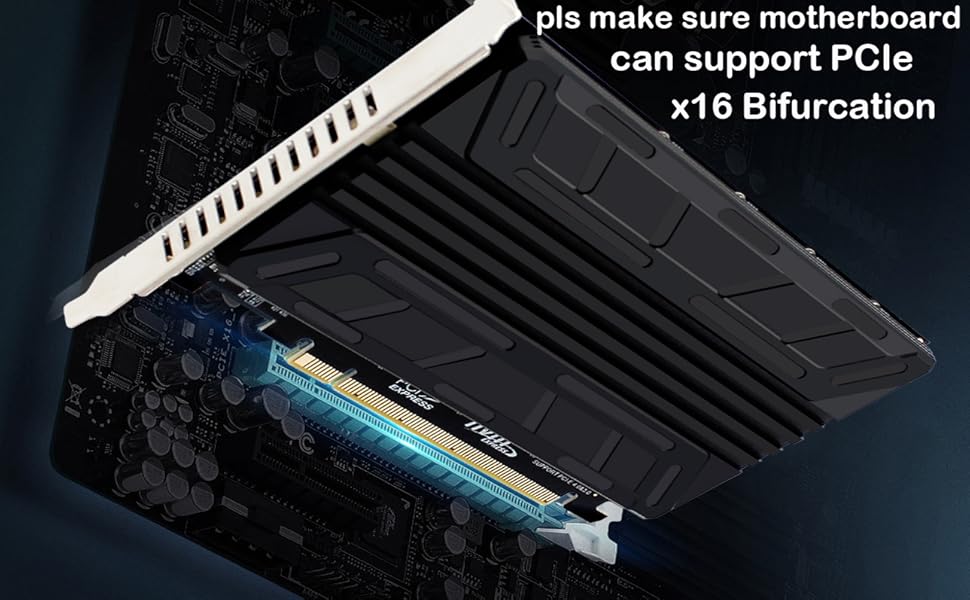

Sintech PCIe Quad nVME Card allowed to add 4x NVMe SSDs simultaneously via PCI-e 4.0/3.0 x16 slot on the MOBO which is required to support PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps.
✅【Wide Compatibility】Compatible with 4sizes M.2 NVMe SSDs: 2230,2242,2260,2280.(Not support M.2 SATA SSD); Motherboard: X299, X399 and Most Servers supporting PCIe x16 Bifurcation.
✅【Hardware requirement】1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo; 2. Motherboard support PCIe x16 Bifurcation itself which can be set as"PCI-e x4x4x4x4" in BIOS; 3. CPU has enough channels to support
✅【Heatsink & LED indicator Design】Big Aluminum heatsink cover ensure to keep low temperature of nVME SSD and will not cause a decrease in SSD transmission speed due to excessive temperature. The individual LED Indicator will show each SSD's Working Status.
【NOTICE】: Sintech PCIe Quad nVME Card does not Support Hardware Raid, only support the formation of soft raid in Win10 , or you may build raid via Third-party Software, and the 4 SSDs should be same model. The motherboard need support "PCIEX16 Bifurcation",otherwise, only one M.2 SSD can be recognized.
