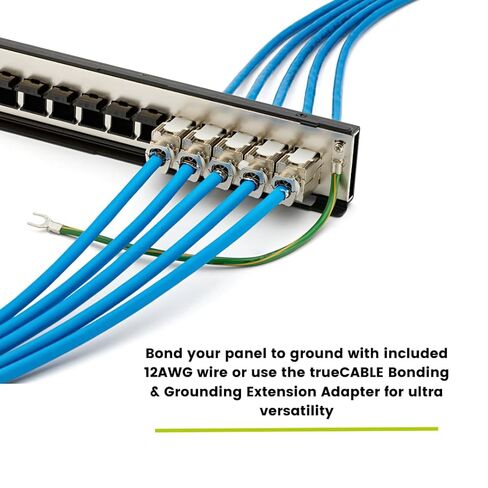

[Extreme Performance] EMI/RFI/ESD PROTECTION. Permits shielded Ethernet cable and shielded keystone jacks to drain off unwanted interference and static discharge to ground. Use the included 8.80” two position bond/ground wire or use our truePLUG (sold separately) for unparalleled flexibility in small business and residential applications.

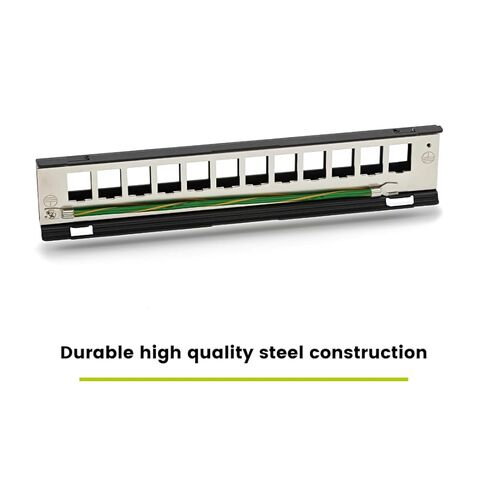

[Quality Guaranteed] The panel back is constructed of SECC nickel plated cold rolled steel while the panel front is SPCC black powder coated cold rolled steel. 89D wall mount bracket is ABS UL94V-0 rated. Meets EIA-310-E, FCC part 68-F & IEC 60603-7. UL Listed, TAA compliant, and RoHS compliant.

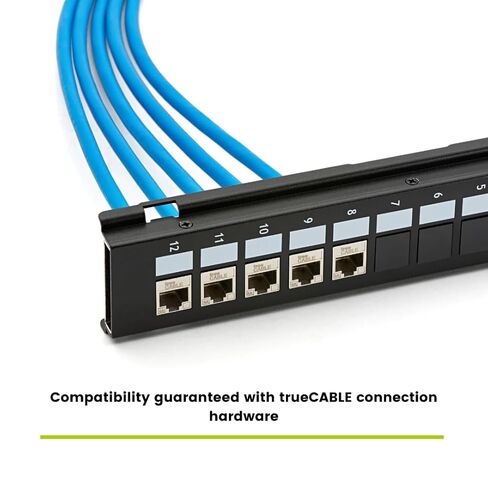

[Versatile] Use with Cat5e, Cat6, Cat6A, Cat7, and Cat8 shielded keystone jacks, couplers, and shielded Ethernet cable. Also compatible with Cat5e and Cat6 unshielded keystones and Ethernet cable. Accepts BNC, RCA, HDMI, USB, fiber optic, and snap-in Coaxial couplers, too. Not recommended for 10G+ high speed applications when using unshielded Cat6A or higher cable and hardware due to ANSI/TIA 568-2.D ANEXT (Alien Crosstalk) requirements.

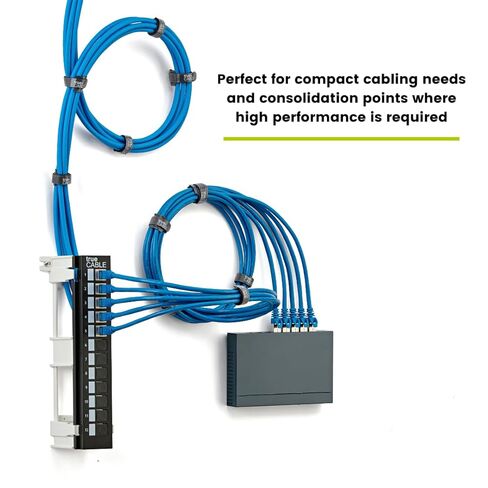

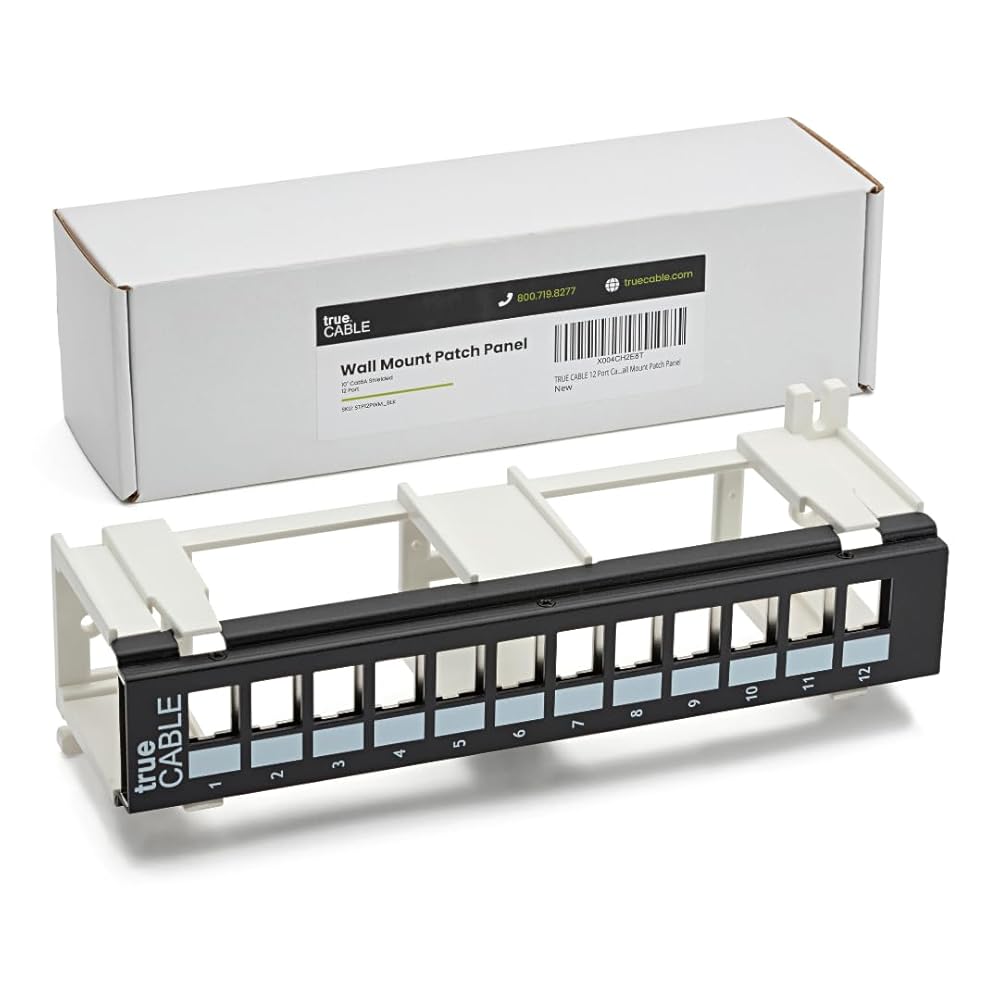

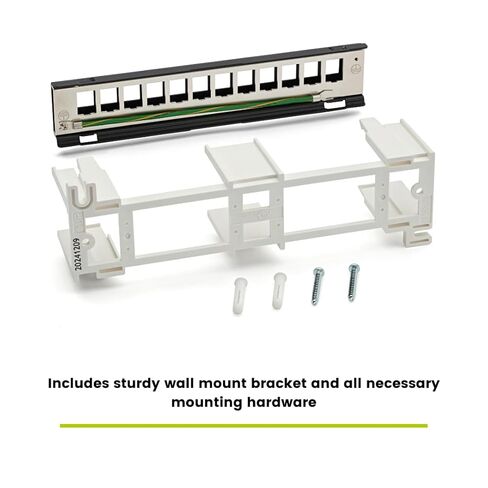

[Easy To Use] Snap-in 12 port modular design mounts to any wood or drywall surface with no need for a complex rack setup. Panel frame detaches from the 89D wall mount bracket for easy installation and maintenance. Enhanced depth offset panel design permits the use of long shielded keystone jacks (up to 41mm) with thick shielded Ethernet cable while avoiding clearance issues with the mounting surface.

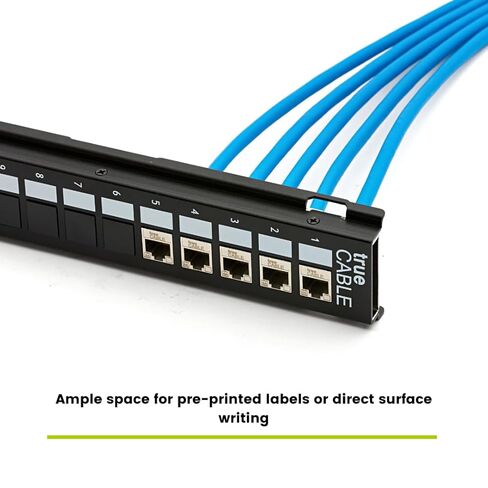

[✓ Field Tested, Customer Approved] Individually numbered ports with spacing provided for permanent labeling or temporary write-on port identification. Panel with 89D bracket measures 9.96” tall by 3.14” deep by 3.37” wide. Supplied with (two each) drywall anchors and screws. Includes 8.80” 12AWG green bond wire. Our 12 port toolless shielded modular patch panel has been thoroughly field tested by real installers for reliable performance. Backed by our FOREVER WARRANTY.
