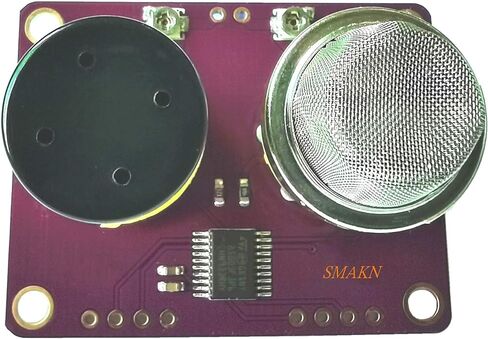

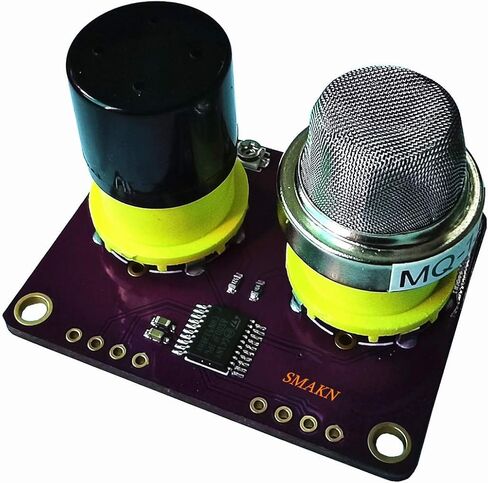

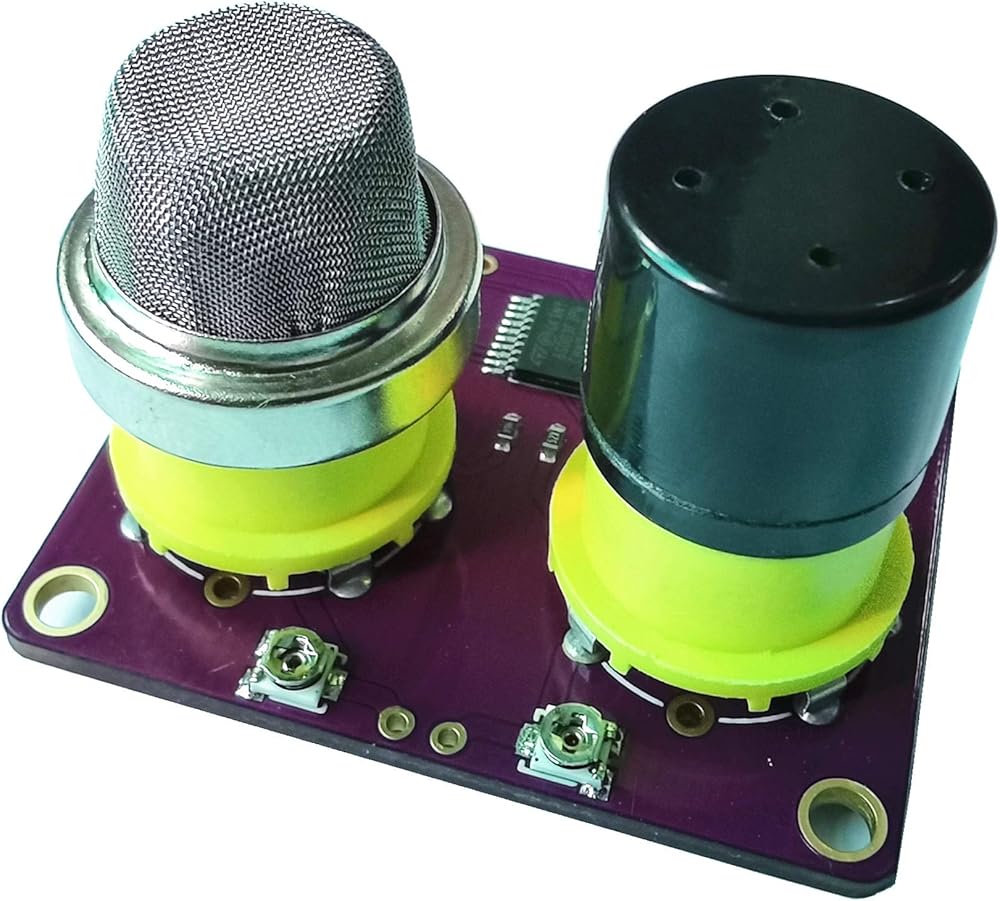

Size: 32mm * 22mm * 30mm (L * W * H)
Main chip: MQ131 gas sensing probe
Working voltage: DC 5V
With the signal output LED indicator;
Dual signal output (analog output, and TTL-level output);
TTL output valid signal is low; (lights lit when the output is low, which can be accessed microcontroller IO port)
Analog output increases with the concentration, the higher the concentration, the higher voltage;
High sensitivity for ozone gas(probe concentration range 10PPB-2PPM)
Long life and reliable stability;
Rapid response and recovery characteristics;
With mounting holes for easy fixed installation;
Probe can plug or unplug for easy experiment. Application: Atmosphere for families and ozone gas detection device
Package included: 1 pcs MQ-131 Ozone Gas Detection Sensor Module
