HDMI to SDI Converter Adapter, Supports 1080P for Camera, Home Theater

KWD 11
Brand
SAIZHUO
Weight
199 g
– 1 +

Special Features

  • HDMI to SDI Converter: The HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates from SD-SDI to 3G-SDI 2.970 Gbit/s to give you high resolution signal without any loss.
  • Supports HDMI Input Resolution: 480i; 576i; 720p@50Hz, 60Hz; 1080i@50Hz, 60Hz; 1080P@24/ 25/ 30/ 50/ 60Hz.
  • SDI Output Resolution: SDI interface operates at bitrates of 2.970 Gb/s, 2.970/ 1.001 Gb/s, 1.485 Gb/s, 1.485/ 1.001 Gb/s and 270 Mb/s.
  • Long output distancs: Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters(SD-SDI). When use coaxial cable, Please make sure it is 75Ohm and BNC Connect Type.

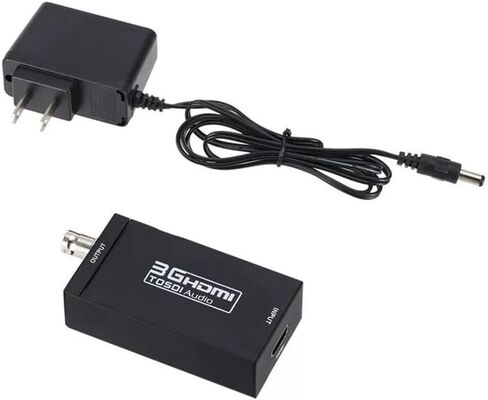

  • What You Get:3G HDMI to SDI Converter X 1, 5V/1A DC Power Supply Adaptor X 1, User Manual X 1.

Description

Overview:

The Wiistar HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.
Features

Input Port: 1 x HDMI
Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Connect with other units to extend your signal over long distances.
Power Consumption (Max): 5W

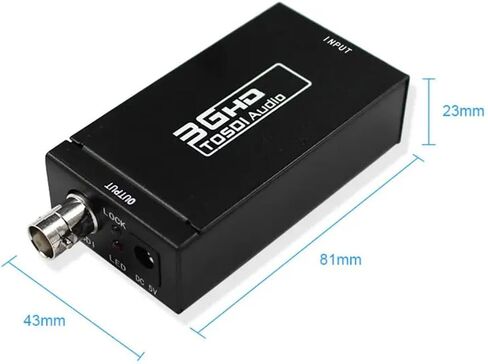

Product Dimension(mm): 95 x 45 x 22
Product Weight: 95g
