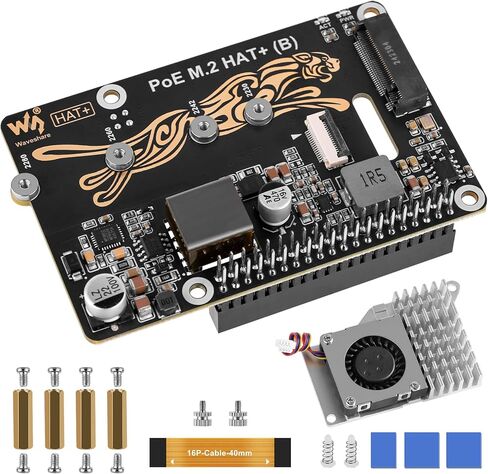

PCIe to M.2 NVM Express with PoE Hat Expansion Board with Official Pi 5 Active Cooler Multi-Specification SSD Interface Hard Drive for Raspberry Pi 5, Support 2230/2242/2260/2280
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

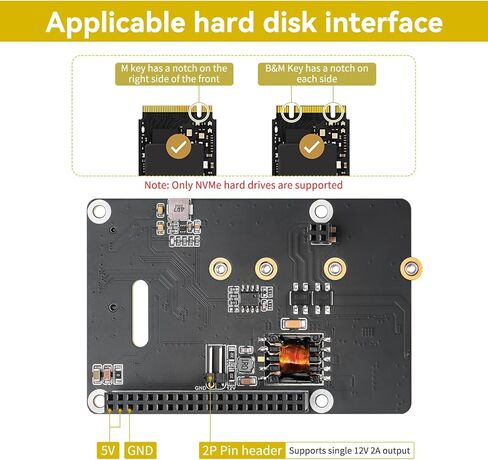

Specification: PoE power input: 37V-57V DC input; Power output: GPIO pin header: 5V 4.5A (MAX); 2P pin header: 12V 2A (MAX); Product size: 2.2 x 3.35 inch 56.0 x 85.0 (mm); Network standard: Support IEEE 802.3af/at PoE

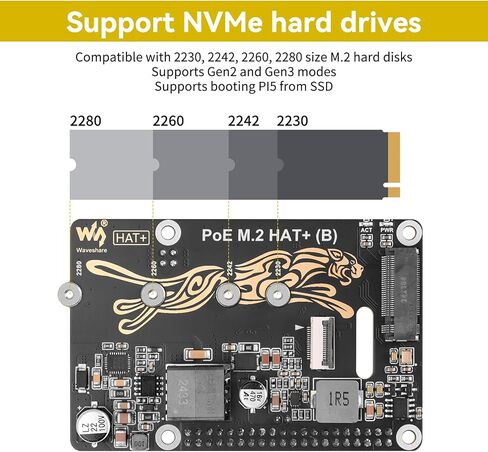

High-speed read and write: The theoretical transmission speed of GEN3 is 8Gbps, and the measured read and write speed is about 800MB/s. Supports NVMe hard disk protocol and is compatible with M.2 hard disks of 2230/2242/2260/2280 sizes. Supports Gen2 and Gen3 modes, supports booting PI5 from SSD, and supports PoE Ethernet power supply (only one network cable is required to connect the PoE device to connect the Raspberry Pi to the Internet and power it)

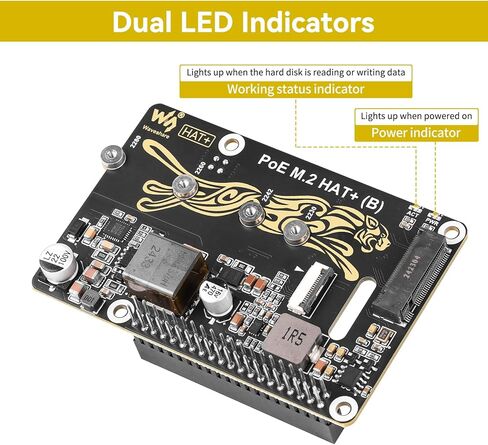

Sturdy and stable: This product is resistant to oxidation, corrosion, and has strong welding. It also comes with dual LED indicators to show the working status of the device at a glance. The product complies with the HAT+ standard and supports automatic detection of Raspberry Pi software and firmware

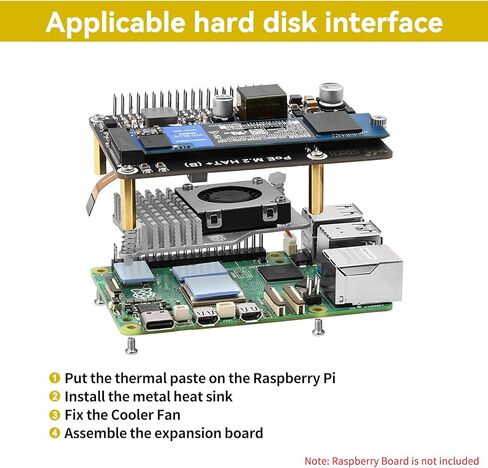

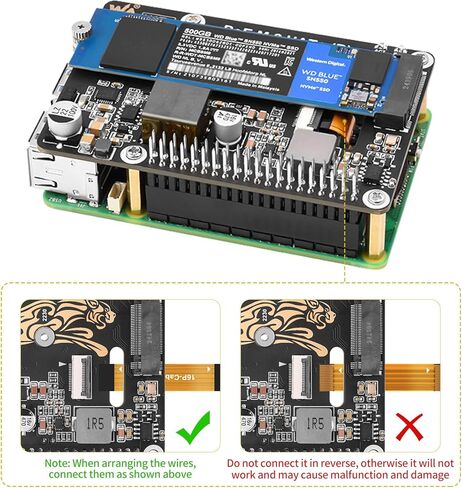

Installation: First, apply thermal paste to the surface of the Raspberry Pi, then install the metal heat sink, and then assemble the expansion board. (Note that this product does not include accessories such as the Raspberry Pi 5 motherboard)

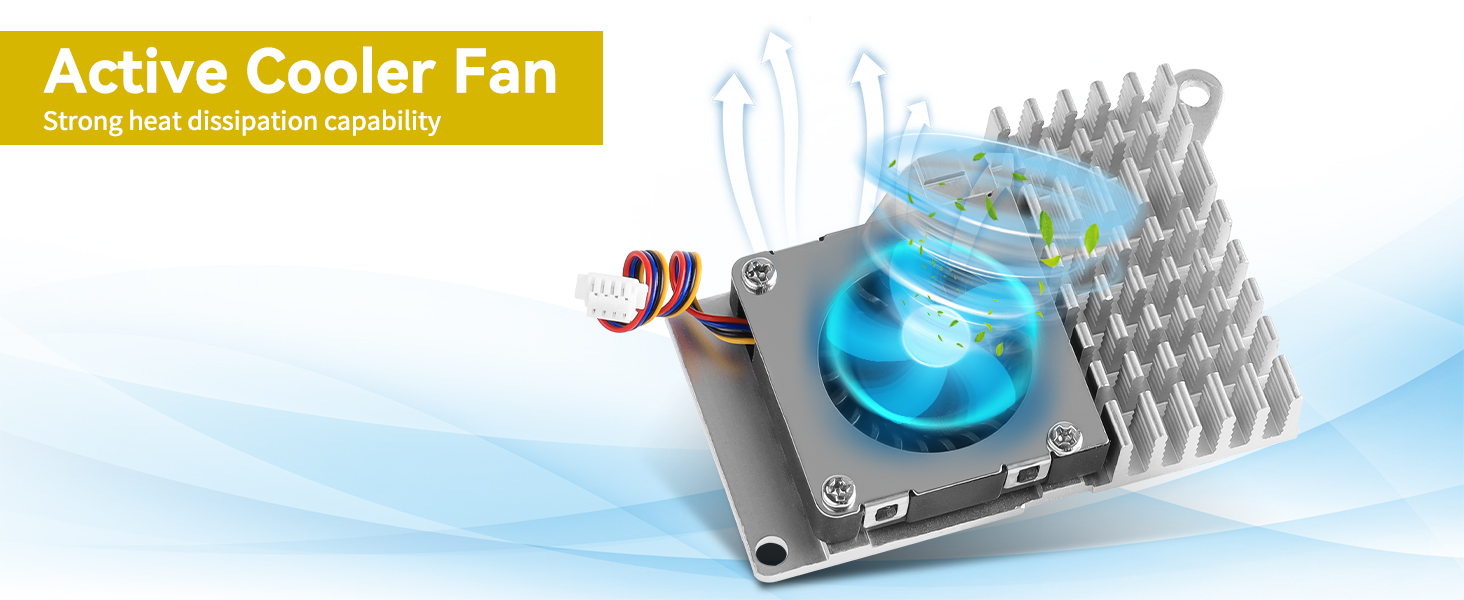

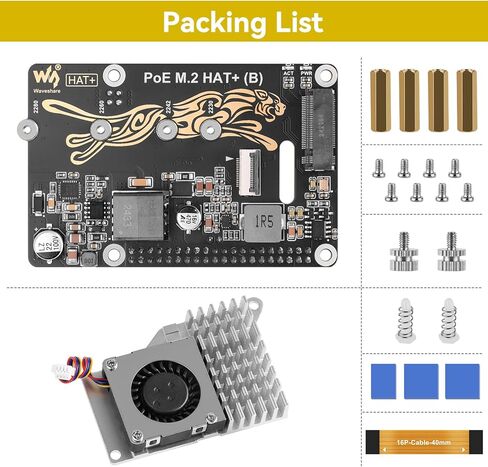

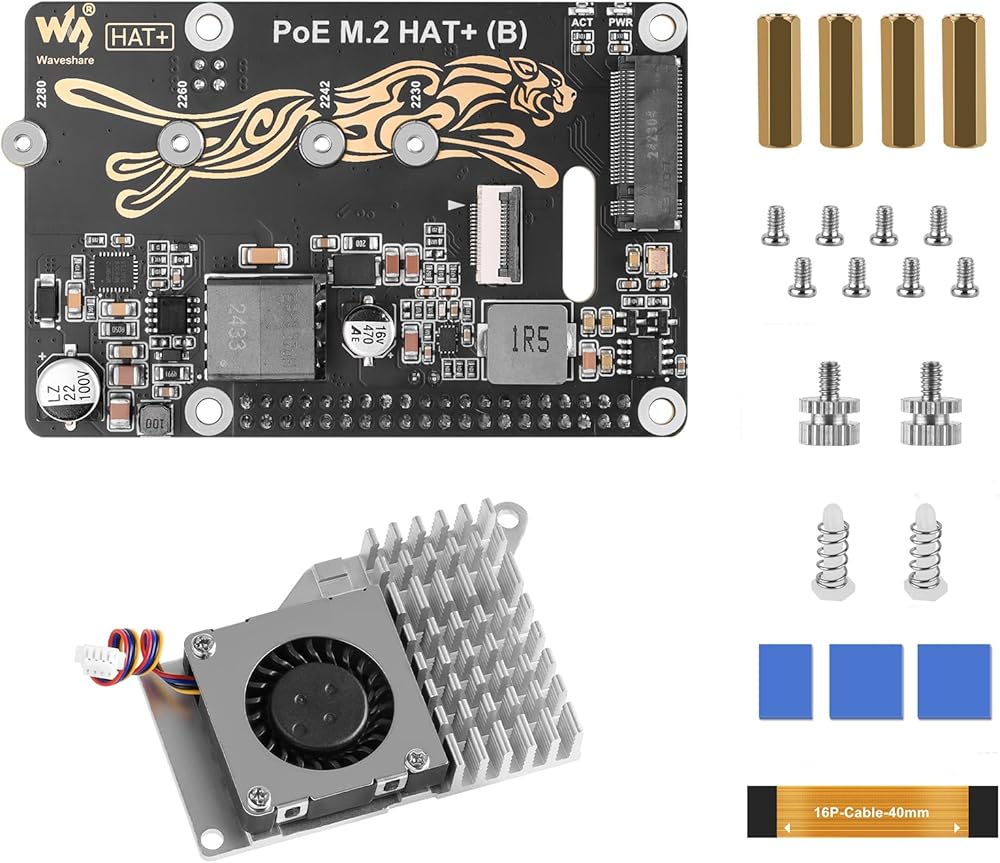

Active Cooler:The Pi 5 active cooler integrates an aluminum heatsink with a PWM fan to maintain optimal operating temperatures for the Raspberry Pi 5. This ensures reliable performance across a wide range of applications. Packing list: PoE M.2 Hat+ (B)*1, Active Cooler*1, 16PIN PCIe cable*1, screw column*1, screw bag*1
