SUPERBAT 4G LTE Cellular GPS Combined Antenna Fixed Bracket Wall Mounting MIMO SMA Antenna Compatible with 4G LTE Industrial Mobile Router Trail Camera Security Cellular IoT Gateway Modem

KWD 11
Brand
Superbat
Weight
120 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

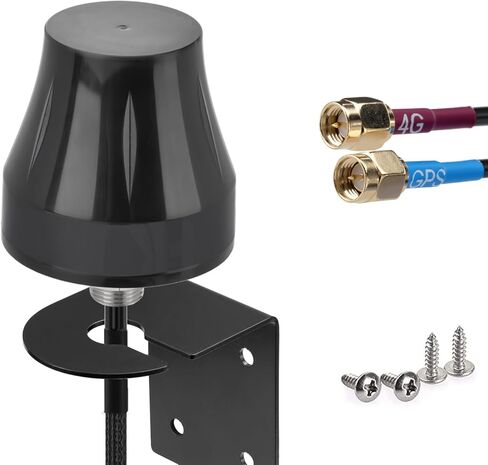

  • Active GPS Navigation and MIMO 4G LTE Cellular Omni-directional Combined Antenna;Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Screws (As the Picture Shown)
  • Feature: Through Hole Fixed Bracket Wall Mounting; Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm;Connector Type: Dual SMA Male Connector; Cable: Dual 3 Meters/10ft Coaxial Cable
  • Woven Mesh Sheath：The outer layer of the cable is added with high temperature resistant, high quality braided mesh, which is not easy to break during use and protects the coaxial cable from mechanical abrasion, prolonging its service life
  • Compatible with 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; 4G LTE Industrial Gateway Mobile Router;Vehicle 4G LTE Telematics,4G LTE GPS Tracker Locator;Cellular IoT Gateway
  • Compatible with Vehicle RV Bus Truck Boat Mobile DVR Camera Security Real Time Video Recorder; 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker etc

Description

Specifications:
4G LTE Cellular Antenna Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: Polarization: Linear
Gain: 5dBi
Impendance: 50Ω
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width： >9MHz
Polarization: RHCP
Gain: 2dBic（Zenith）
V.S.W.R: Impendance: 50Ω
Axial Ratio: 3dB（max）
LNA Gain: 28±2dB
LNA Noise Figure: LNA V.S.W.R: LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA
Mechanical:
Cable: RG174 Coaxial Cable
Cable Length: 3 Meters/10ft
Connector: Dual SMA Male Connector
Material: ABS
Mounting Method: Through Hole Fixed Bracket Wall Mounting
Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws
