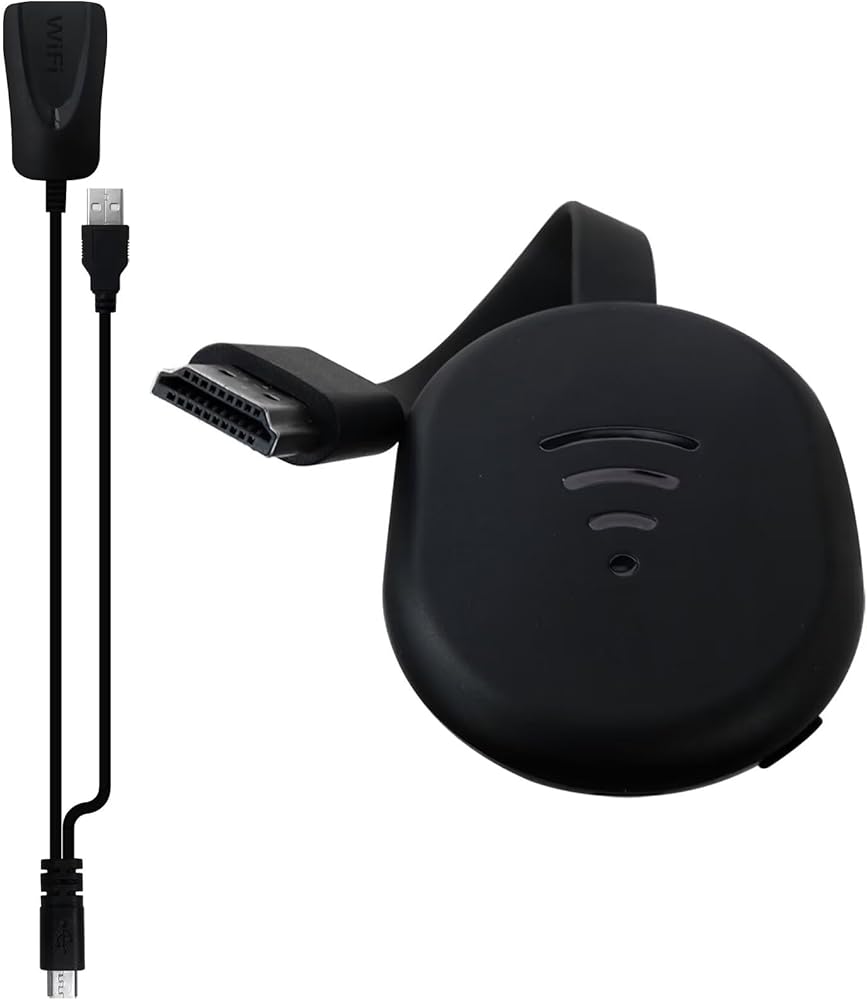

>>> Type: Wireless HDMI Display Dongle Adapter

>> Physical Setup:
1.Connect the dongle to the TV's HDMI port.
2.Connect the dongle's USB cable to the TV's USB port or a USB power block.
3.Turn on the TV and set the input to the dongle's HDMI port.
4.Make sure the device's blue main screen appears on the TV.

>> For Android System Mirroring
1.Confirm that the device's blue main screen appears on the TV.
2.In the "Cast " function, select the 'Cattv-XXXX' device, wait for a few seconds, and the phone screen will automatically appear on the TV after a successful connection.

>> For iOS System Mirroring
1.Go to Settings > Wi-Fi > OTHER NETWORKS > select "Cattv-XXXX" and enter the password "12345678"
2.Tap "Screen Mirroring" > choose "Cattv-XXXX"

>> Note: For Android systems can use the mirroring function while connected to home Wi-Fi, but for Apple devices need to have phone data enabled to use the mirroring function.

>> The DLAN function is the core feature of this product.
To set up DLNA, you first need to establish a network connection between the device and the router. The specific steps will be displayed on the blue main screen.

>> Note:
1.In DLNA mode, all you need to do is set up the network for the first time. After that, it will automatically connect to the WiFi you initially connected to whenever you turn it on.
2.If you have already established a network connection between the device and the router but cannot find "Casttv-XXXX" on your mobile device, you need to check if your router's name contains special characters such as spaces.
