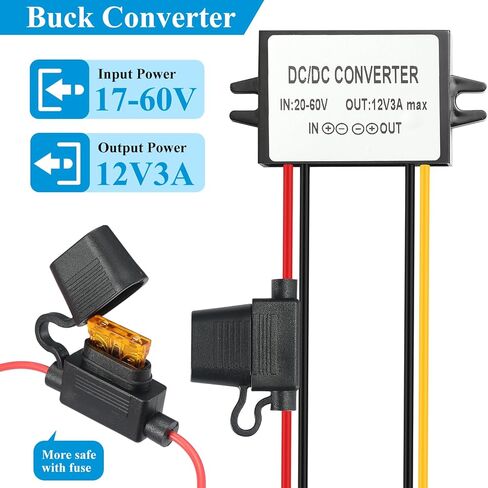

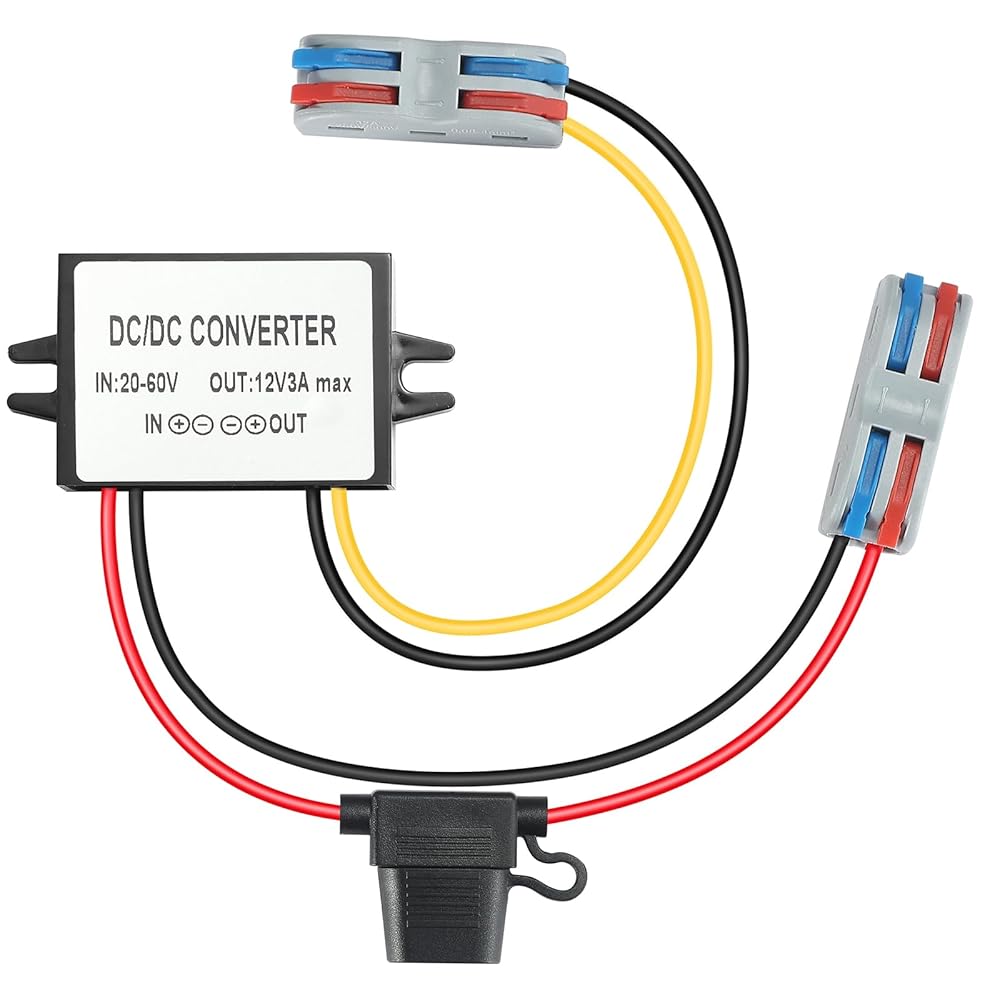

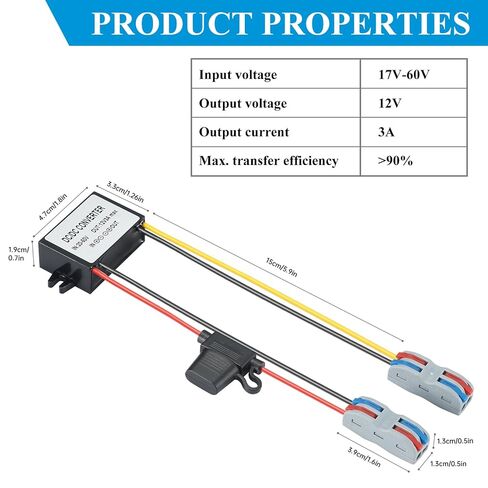

20V to 60V Step Down to 12V 3A 36W Power Converter
Input range: 17V to 60V

Nominal input voltage: 24V 36V 48V 60V

Transfer efficiency: 90%

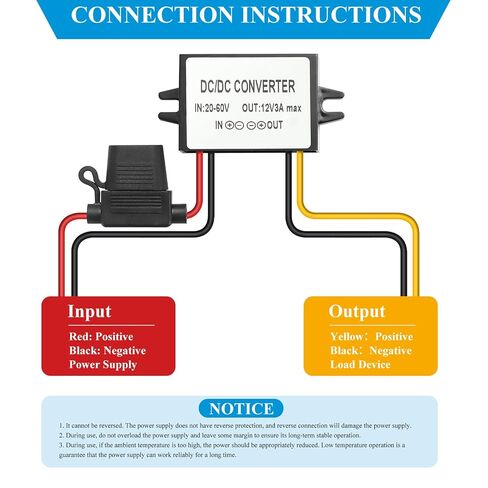

Input line: 15 to 16 CM, R+ B-

Output voltage: 12V

Output: 3A MAX

Maximum output: 36W MAX

Working temperature: -20 to 65°

Storage temperature: -40 to 85°

Working humidity: 10% to 90% RH

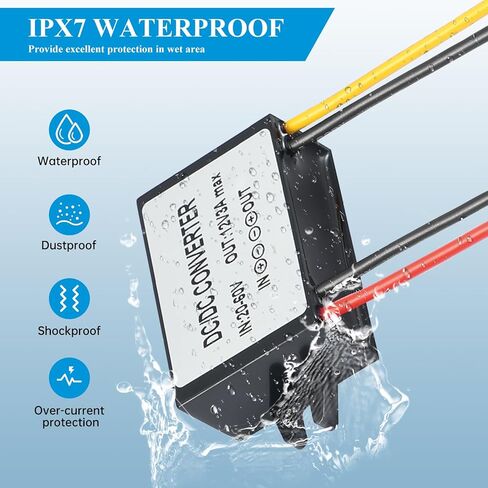

Waterproof classification: IPX7

Short-circuit protection: YES

Overtemperature protection: YES

Overcurrent protection: YES

Anti-connection protection: YES

Heat dissipation method: Natural heat dissipation

Attention

1.The products are stored in a dry and cool place with a temperature between 40℃ and 80℃, avoiding contact with corrosive substances and staying away from flames and heat sources

2.Do not use the device near a heat source, such as a fire or heater

3.Do not connect the input line to 220V electricity

4.Do not put the product in a fire or heat it

5.Do not short the positive or negative poles of the product with wires or other metal objects

6.It is forbidden for non-professional personnel to disassemble and repair the product by themselves
