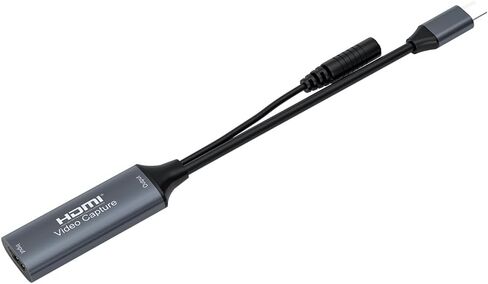

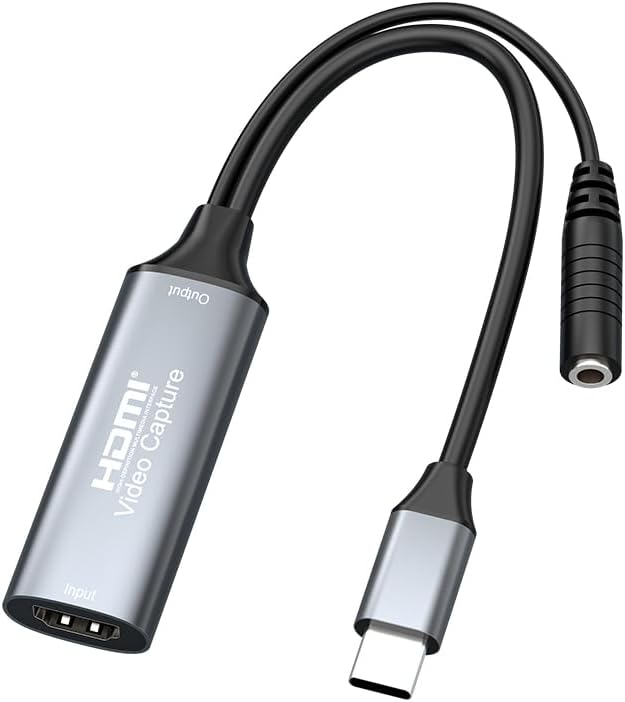

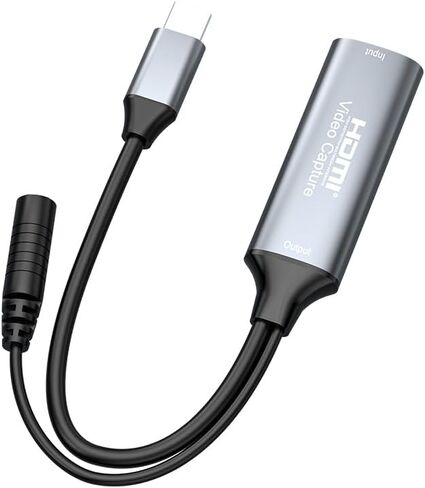

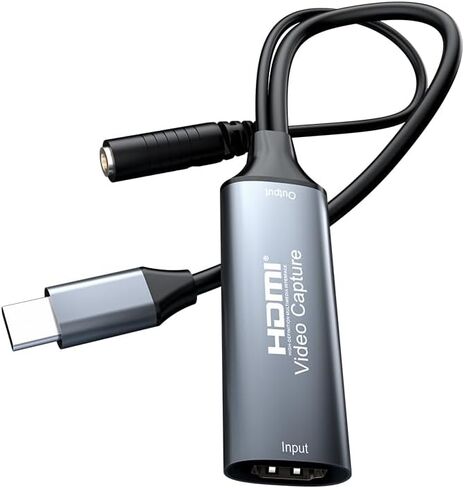

HDMI Video Capture with MIC Audio Mix,USB C 2.0 Video Capture Card,4K 30Hz Video Capture Output Resolution Up to 1080P 60Hz for Windows,Android,MacOS,VLC,OBS,Amcap,etc

Special Features

Support input max resolution 4K 30Hz;* Support video capture output resolution up to 1080P 60Hz;
Support video capture ultra-low latency 0-16ms;Support 8/10/12bit deep color;
Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);
Support most acquisition software, such as VLC、OBS 、Amcap, etc;Support Windows、Android and MacOS;
Conform to USB Video and UVC standard;Conform to USB Audio UAC standard;Without external power supply, compact and portable.

Description

Introduction :
The USB Type-C 2.0 video capture can capture HDMI video and HDMI audio with MIC audio mix. sending audio and video signals to computers and smart phones for preview andstorage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Specifications:
HDMI resolution:Max input can be 4K
Support video format:8/10/12bit Deep color
Video output format:MJPEG
Video output resolution:Max output can be 1080P
Support audio format:L-PCM
Input cable distance:1080P≤15m, 4K 30≤10m, AWG26 HDMI standard cable
Max working current:0.2A/5VDC
Operating Temperature range:(-10 to +55℃)
Dimension (L x W x H):11x23x240 (mm)
Weight:25g
