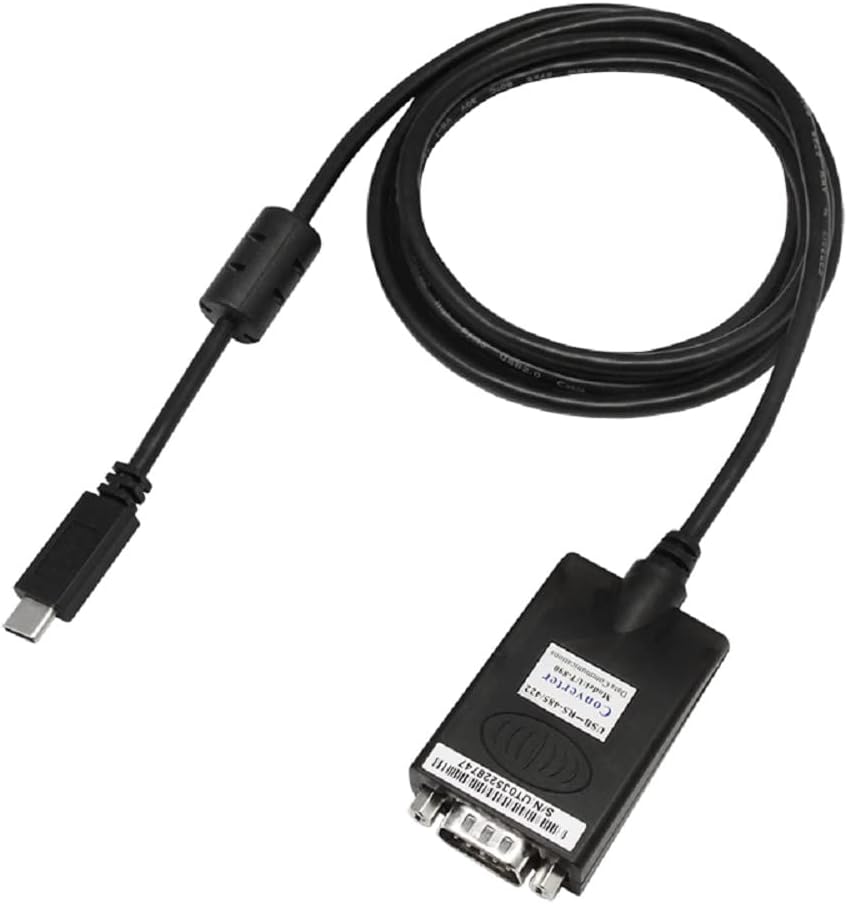

UOTEK USB Type-C to RS422 RS-485 Serial Port Converter Adapter Cable with FTDI chip Support Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux with ESD Protection

KWD 14.500

Brand
UOTEK
Weight
137 g
1 +

Special Features

  • 【Industrial grade】With high performance quality processor chip FTDI-FT232, strong compatibility, can be applied to modem, barcode machine, tax control machine, set-top box, PDA, CNC machine tools, industrial machines and meters, etc.
  • 【Port protection】RS485 Serial to USB adapter is ideal for industrial environment -provides 600w surge protection and 15KV ESD isolated protection on signal pins to protect costly and often sensitive control equipment against electrical damage
  • 【LED Indicators】Make the communication status more intuitive, always remind whether the link is normal or not.
  • 【Baud rate】921,600bps 300M/38,400bps 600M/9,600bps 1.2KM
  • 【Support system】USB to RS485/RS422 converter It easily lets you connect RS485 or RS422 device, Support Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux etc.

Description

● Standards: USB V1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA
● USB signal: VCC, DATA+, DATA-, GND, FG
● RS-485 signal: T/R+, T/R-, GND
● RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
● Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex
● Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction
● Baud rate: 300-921,600bps
● Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device
● Transmission distance: RS-485/422 1,200m(9600bps), USB no more than 5m
● Port protection: 600W surge, ±15KV ESD protection
● Connector: USB-C male, DB9 male
● Signal: TXD, RXD
● Transmission media: Twisted-pair or shielded wire
● Baud rate: 921,600bps 300M 38,400bps 600M 9,600bps 1.2KM
● Dimension: 55mmX36mmX18mm
● Working temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
