1X2 HDMI Extender Splitter 1x2, 165ft/50m 1 in 2 Out 50m, Over Cat5e/Cat6/7 Repeater Port Balun Ethernet Sender Transmitter Receiver Support Ultra HD 1080P@60hz 3D EDID Loop Out POC

KWD 15.500
Brand
BAISHUN
Weight
409 g
– 1 +

Special Features

  • HDMI Extender Splitter over CAT5e/6/7: The HDMI extender splitter can split 1 HDMI signal into 2 identical signals and transmit them to 2 HDMI Loop-Out local displays through Cat5e/Cat6/Cat7 cables, the transmission distance is up to 165ft, transmit high-resolution video and audio simultaneously.
  • Power on CAT: Supporting the POC function, only needs one power adapter to be connected to the TX(Transmitter), the RX(Receiver) can work through the network cable, simpler and convenient operation, safe and reliable. (Notes: 12V power adapter must be connected to TX, otherwise the device will be damaged.)

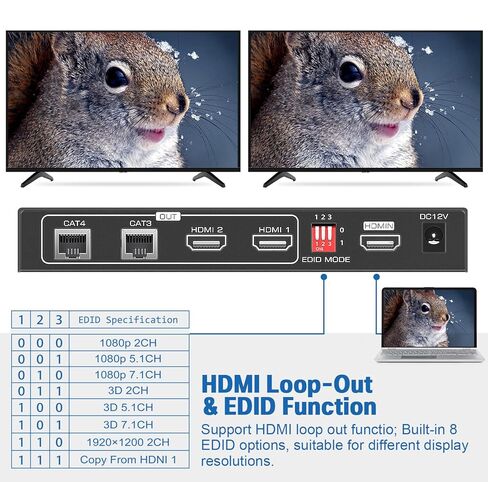

  • EDID Copy Function: According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, allows the signal source and the display to be connected without obstacles, and to obtain the best matching video and audio signal.
  • Lossless Transmission: This HDMI extender Support resolution up to 1920x1200@60Hz and 1080p@60Hz, backward compatible with 720P, 720i, 576p and other lower resolutions, data transmission speed up to 4.95Gbps; Support 3D; Support audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD/LPCM7.1.
  • Intelligent EQ Adjustment: Chip built-in automatic algorithm, no need to manually adjust the receiver equalization settings to compatibility with cable transmission distance. Compatible with various devices such as the PC, Blu-ray DVD player, PS4, PS5, TV box etc. Can be widely used in multimedia teaching, monitoring, video conference, home theater, outdoor LED screens etc.

Description

BAISHUN 1X2 HDMI Extender Splitter 50m from Cat5e/Cat6/Cat7 cable support 1080P@60Hz, Loop-out and POC Function
Specifications:
Support resolution:Up to1920x1200@60Hz/3D/1080p/1080i/720p/720i/576p/576i/480p/480i.
Support audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD/LPCM7.1.
Max transmission bandwidth: 4.65Gbps
Input/Output HDMI cable distance: 10m(32ft) AWG26 HDMI standard cable
Input: AC 100V-240V (50HZ, 60HZ)
Output: DC 12V
Dimensions:161 x 26.7 x 9.8 inches

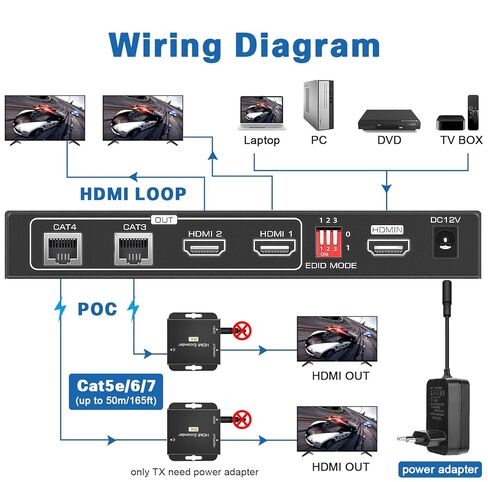

Instructions:

Connect one HDMI cable(AWG 26) up to 10m(32ft) between source device and TX Extender.
Connect one HDMI cable(AWG 26) up to 10m(32ft) between display device and RX Extender.
Connect single Cat6 cables up to 50m(165ft) instead of HDMI cable between TX and RX Extender.
Connect 12V power supply to the TX, one power supply can make the normal operation of the entire device.

Notes:

The HDMI extender must use oxygen free copper CAT5e/CAT6/CAT7 cable.
The extender transmits 1920x1200@60Hz HDMI signal, the longest distance can only reach 130ft.
The extender transmits 1080P@60Hz HDMI signal over Cat5e, the longest distance can only reach 130ft.
The extender transmits 1080P@60Hz HDMI signal over Cat5, the longest distance can only reach 100ft.
12V power must be connected to TX, otherwise the device will be damaged.

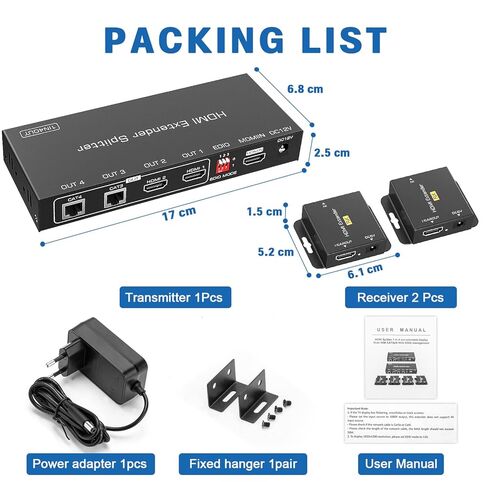

Package Includes:

1 x HDMI Transmitter
2 x HDMI Receiver
1 x 12V DC Power Adapter
1 x User's Manual
