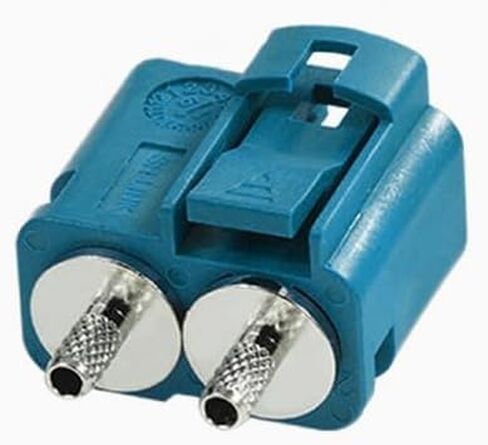

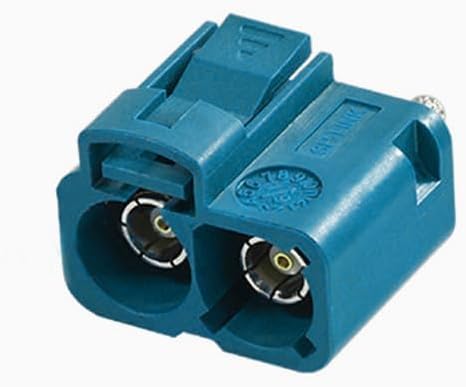

5 Pcs Fakra SMB Z Double Female RF Coaxial Adapter, Fakra Z Double Female RG316 RG174 Connector Short Body Length 15mm 50ohm for GPS Telematics or Navigation Ships

KWD 8
Brand
keisnoaja
Weight
19 g
– 1 +

Special Features

  • DURABLE DESIGN: Constructed from pure copper, this Fakra coaxial connector provides long-lasting conductivity and signal transmission for demanding applications.
  • VERSATILE COMPATIBILITY: Compatible with common low-loss coaxial cables like RG-174and RG-316, it can integrate into a wide range of electronic systems from car audio/video to security alarms.
  • SECURE CONNECTION: Featuring solder or crimp termination options, it firmly and reliably connects coaxial cables to devices for stable signal transfer without loss of quality.
  • ANGLED FORM FACTOR: The Fakra connector orientation allows for flexible installation even in space-constrained areas, tucking connections neatly out of sight.
  • NICKEL-PLATED SURFACE: Treated with a protective nickel plating, the connector resists corrosion and abrasion to maintain optimal performance over thousands of connections and disconnections.

Description

Appliance：
Wlan
Gps
Pc/Lan
Automotive
Base Station
Head End Equipment

Instrumentation
Telecom
Electrical Characteristics：
Impedance：50 Ohm
Frequency Range：0 to 6 GHz
Voltage Rating：225 Vrms
Dielectric Withstanding Voltage：1000 Volts
Insulation Resistance：5000 MΩ min
Mechanical Characteristics：
Engagement Force：20 n max.
Disengagement Force：10 n min.
Connector Durability：500 mating and unmating cycles min
Environmental Characteristics：
Temperature Range：-65⁰C to +165⁰C
Material:
Part
Material
Finish
Body
Brass
Nickel
Center Contact Pin
Phosphor
Gold
Insulator
Teflon
