Specifications:
Peak Wavelength: 650nm
Max Baud Rate:16Mbps
Output Cable Distance: less than or equal to 40m (Use the optical fiber cable loss less than 0.2Db/m)
Max working current:100mA
Power Adapter Format:
Input: AC (50Hz,60Hz) 100V-240V
Output: DC5V / 500mA
Operating Temperature Range: 0 to 40 degrees Celsius
Operating Humidity Range: 5 to 90%RH(No Condensation)
Operating and Connecting:
1.To use the optical fiber cable to connect the optical fiber signal source(such as blue-ray, the computer and so on)with the splitter input.
2.To let the splitter output port connect to the optical fiber signal receiver(such as amplifier, home theater and so on)by using the optical cable.
3.Connect 5V power supply to the splitters DC input port.

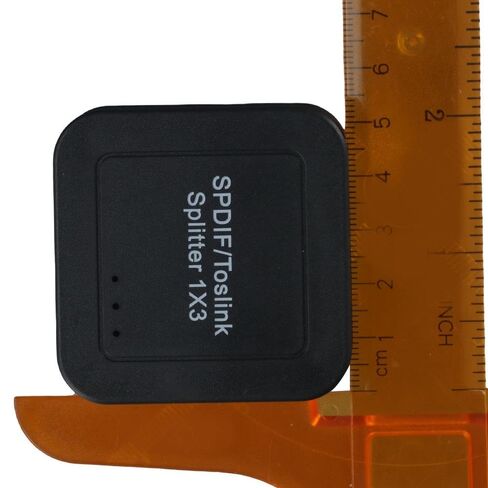

Dimension: 54 x 54 x 23.5mm
Splitter only, other device not included.
Features:
1.One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support: LPCM2.0/DTS/Dolby-AC3
3.Support signal retiming
4.Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
5.Over-voltage protection can keep the damage caused by connecting unmatched power adpater to the machine
6.No loss of quality
7.Installs in minutes
8.Need DC5V/500mA power supply

The accessories with the machines lists:
1.main unit-----------------------1PCS

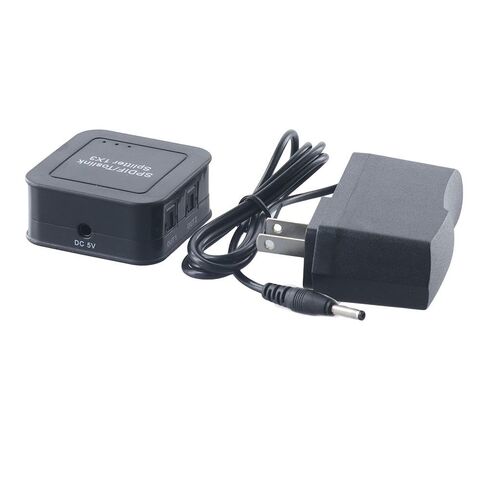

2.5V Power Adaptor--------------------1PCS
3. Operation Manual------------------------1PCS
