Contactless Smart Card Reader, Smart USB Interface RFID Reader Writer for ISO18000‑6C and ISO18000‑6B Standards at 915Mhz RF UHF

KWD 8.500
– 1 +

Special Features

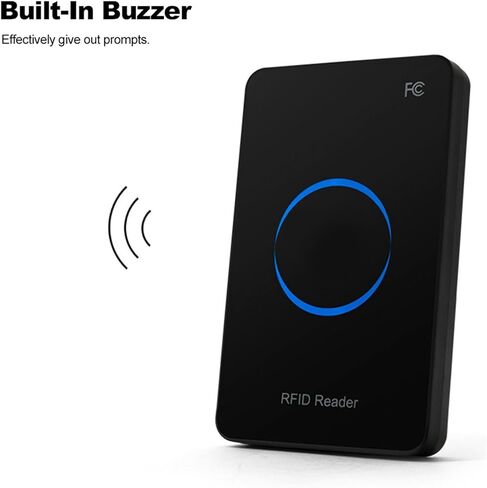

  • 【USB Card Reader】Our reader comes with a USB interface and a cable length of approximately 1 . 4 meters , providing seamless plug and play functionality . No driver installation is required to connect it to your computer . Moreover , the product features a built in buzzer , providing effective prompts to enhance reading efficiency .

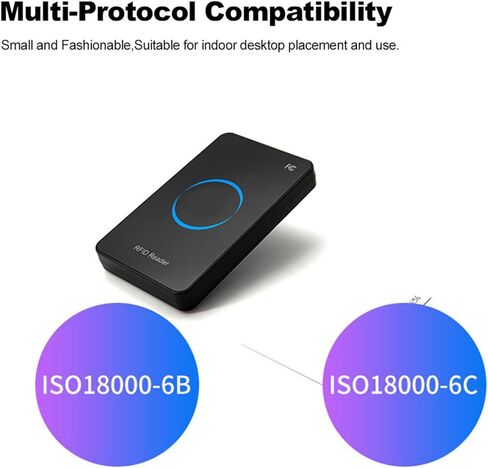

  • 【Wide Applicability】Designed to be multi protocol compatible , our reader supports ISO18000 6C and ISO18000 6B standards . It operates in either wide spectrum frequency hopping (FHSS) or fixed frequency mode , which can be conveniently set via software .
  • 【Stylish Desktop Reader】Our desktop reader features an elegant design combining blue and charcoal gray tones , adorned with an acrylic panel and PVC shell . The exquisite workmanship is evident in its compact and simple appearance . Its small and square shape makes it ideal for indoor desktop placement , while its portability allows for easy transport .
  • 【LED Reader Writer】Equipped with a round LED display , our reader exudes technological sophistication . The built in circular polarization antenna ensures efficient and performance . With an output power ranging from 12 . 5dBm to 26dBm (software adjustable) , it offers optimal signal strength for various applications .

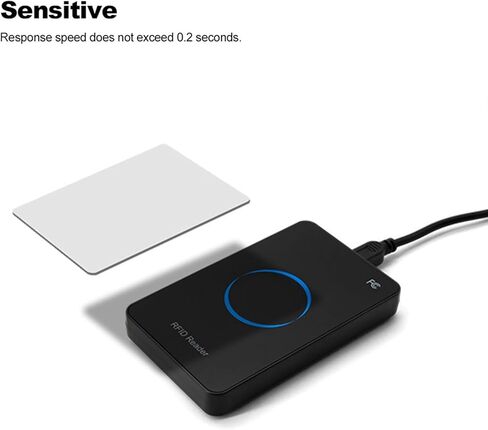

  • 【Contactless Reader】Experience the power of our 915MHz UHF Desktop Contactless Reader , designed to support the special ISO18000 6C (EPC GEN2) standard . With a fast response speed of no more than 0 . 2 seconds , this reader ensures quick and efficient data capture . It boasts a maximum reading distance of 50cm , showcasing its exceptional sensitivity (dependent on factors such as transmitting power , antenna type , tag type , and application environment) .

Description

Specification:
Condition: Brand New
Item Type: Smart Contactless Reader-Writer
Material: Acrylic, PVC

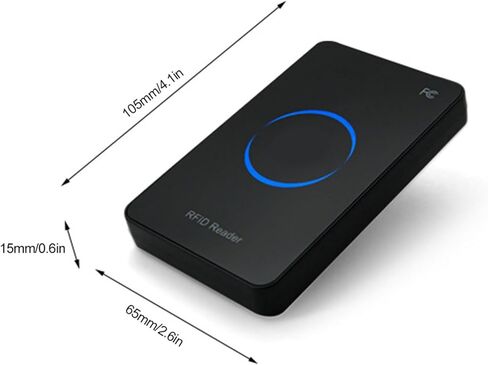

Size: Approx. 105 x 65 x 15mm / 4.1 x 2.6 x 0.6in
Working Frequency: CN Standard (920～925MHz)
US Standard (902～928MHz)
Other Multinational Frequency Standards (Customized)
Label Agreement: fOR ISO18000-6C (EPC GEN2)
fOR ISO18000-6B
FHOP: Frequency Hopping Spread Sprectrum (FHSS) or Fixed Frequency (Can be set by software)
Antenna Parameters: 2dBi Circular Polarization Antenna (Built-In)
Output Power: 12.5dBm～26dBm ()
Reading Distance: Maximum Reading Distance of Tag: 0.5m / 19.7in (Related to factors such as transmit power, antenna type, tag type and application environment.)
Maximum Distance for Writing Tag: 0.2m / 7.9in (Depending on factors such as transmit power, antenna type, tag type and application environment)
Operating Mode: Active Mode
Passive Mode
Answer Mode (Not Recommended)
External Interface Working Environment
Power Interface: DC +5V Operating Temperature: -20℃～55℃
Communication Interface: USB Virtual Keyboard Storage Temperature: -40℃～85℃
USB Virtual Serial Port (Need to be customized.)
Power Adapter: USB Powered RS-232 Wire: Equipped
Power Cable: Equipped Development Kit: Provide SDK

Package List:

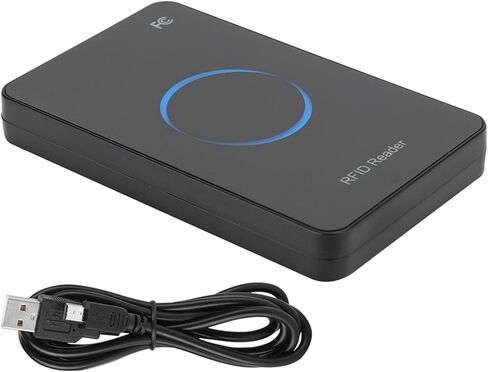

1 x Smart Contactless Reader-Writer
1 x USB Cable
