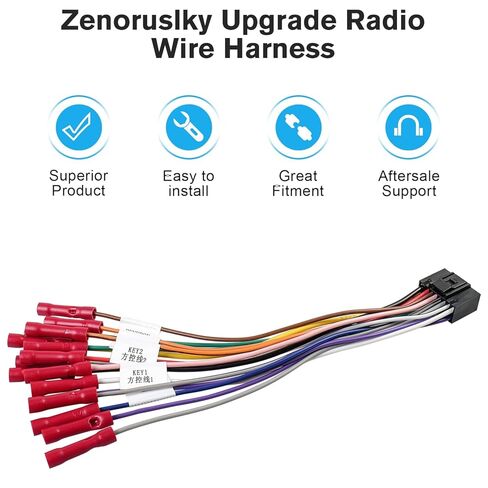

Zenoruslky 16 Pin ISO Radio Wire Harness Adapter

Product List

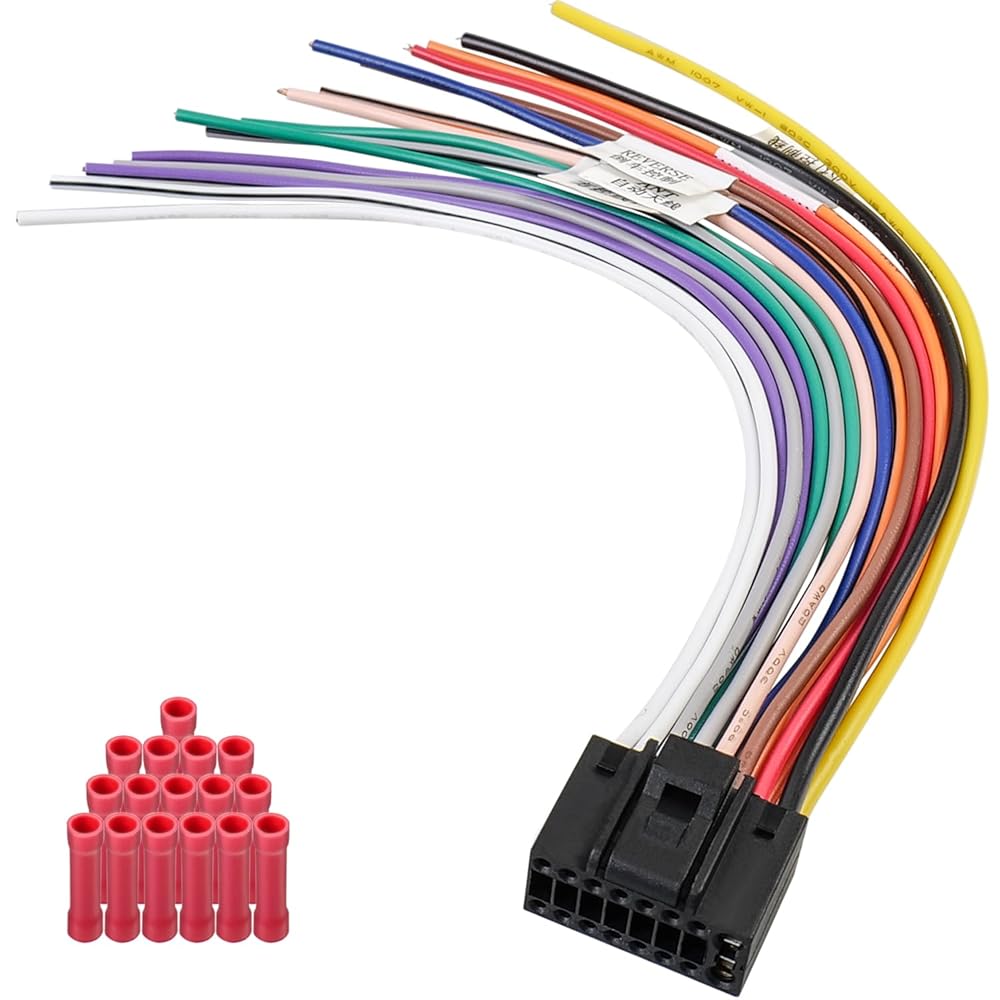

1 x 16 Pin Android Radio Harness

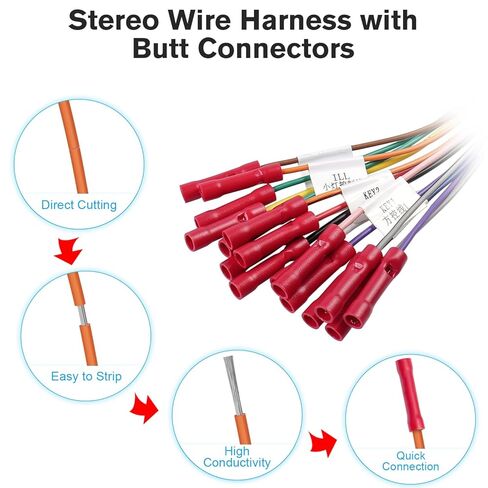

16 x Butt Connectors for Stereo Harness

16 Pin ISO Adapter Connection
1. ACC: to ignition switch, red color
2. B+: to battery positive DC 12V, yellow color
3. GND-: to battery negative, black color
4. ILL : to illuminate backlight positive, orange color
5. Reverse: to car camera detection cable, brown color
6. KEY1 : to steering wheel control line 1, pink color
7. KEY2 : to steering wheel control line 2, orange color
8. ANT : to auto ANT, blue color
9. Rear R+: to rear right speaker positive, purple color
10. Rear R-: to rear right speaker negative, purple and black color
11. Front L+: to front left speaker positive, white color
12. Front L-: to front left speaker negative, white and black color
13. Rear L+: to rear left speaker positive, green color
14. Rear L-: to rear left speaker negative, green and black color
15. Front R+: to front right speaker positive, gray color
16. Front R-: to front right speaker negative, gray and black color

Important Notice
a. Please check carefully whether your aftermarket android radio socket is standard universal 16pin iso plug
b. This 16 pin stereo wiring harness is not compatible with Pioneer,Boss,JVC,Kenwood,Alpine head unit
c. It does not work for car with premium amplifier or 6-speaker system, or you may need additional wire adapter to connect with vehicle
