WM8960 Audio HAT Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ Hi-Fi Sound Card HAT Stereo CODEC Playing and Recording I2S Interfac Stereo 3D Surrounding

KWD 11
Brand
Iiunius
Weight
199 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【40PIN GPIO extension header】RPi audio hat compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • 【Integrates WM8960】RPi speaker integrates WM8960 low power stereo CODEC, communicates via I2S interface
  • 【MEMS silicon Mic】Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
  • 【3.5mm earphone jack】Respeaker 2-mics pi hat onboard standard 3.5mm earphone jack, play music via external earphone; onboard dual-channel speaker interface, directly drives speakers Supports sound effects such as stereo, 3D surrounding, etc.
  • 【Development resources and manual】Comes with development resources and manual (python demo code for playing / recording)

Description

Description

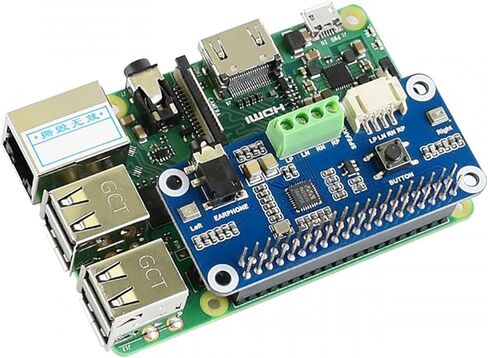

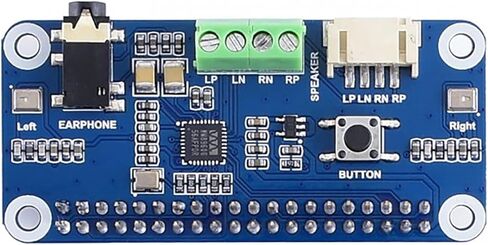

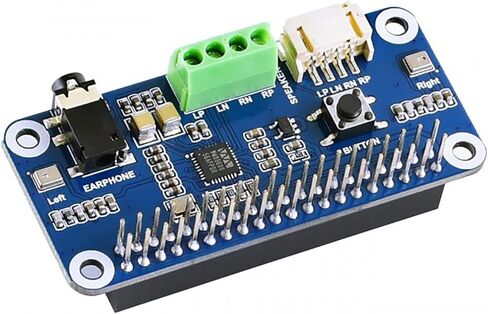

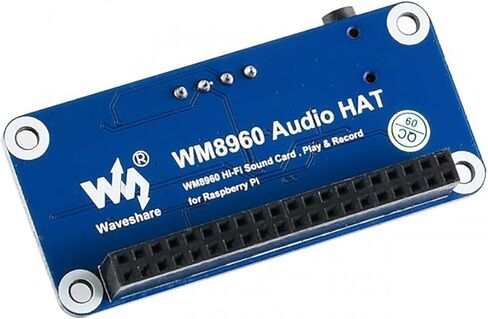

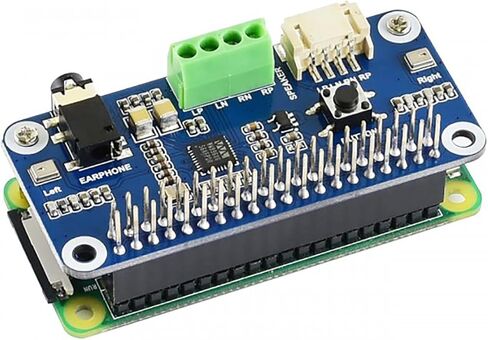

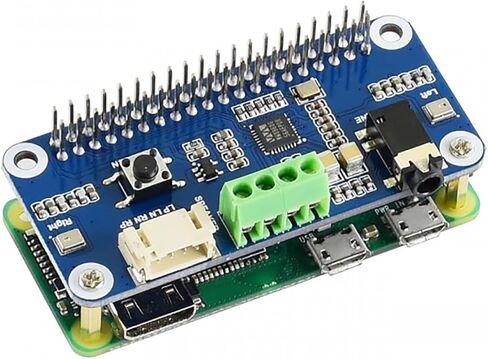

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

Specifications

CODEC: WM8960
Power supply: 5V
Logic voltage: 3.3V
Control interface: I2C
Audio interface: I2S
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16Ω@3.3V)
Speaker driver: 1W per channel (8Ω BTL)

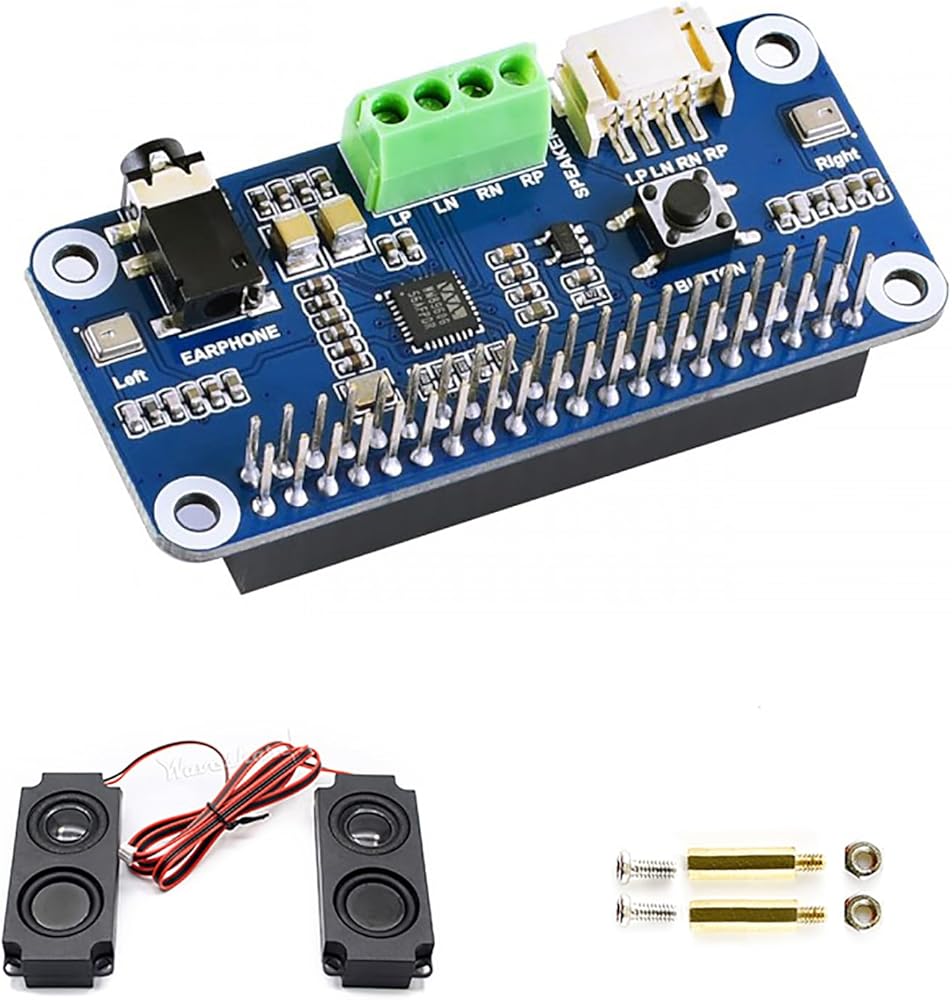

Packing List

WM8960 Audio HAT x1

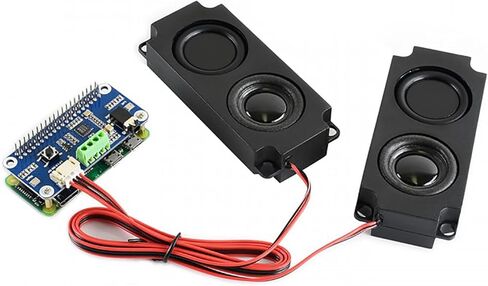

8Ω 5W Speaker x1
RPi screws pack (2pcs) x1
