-6%

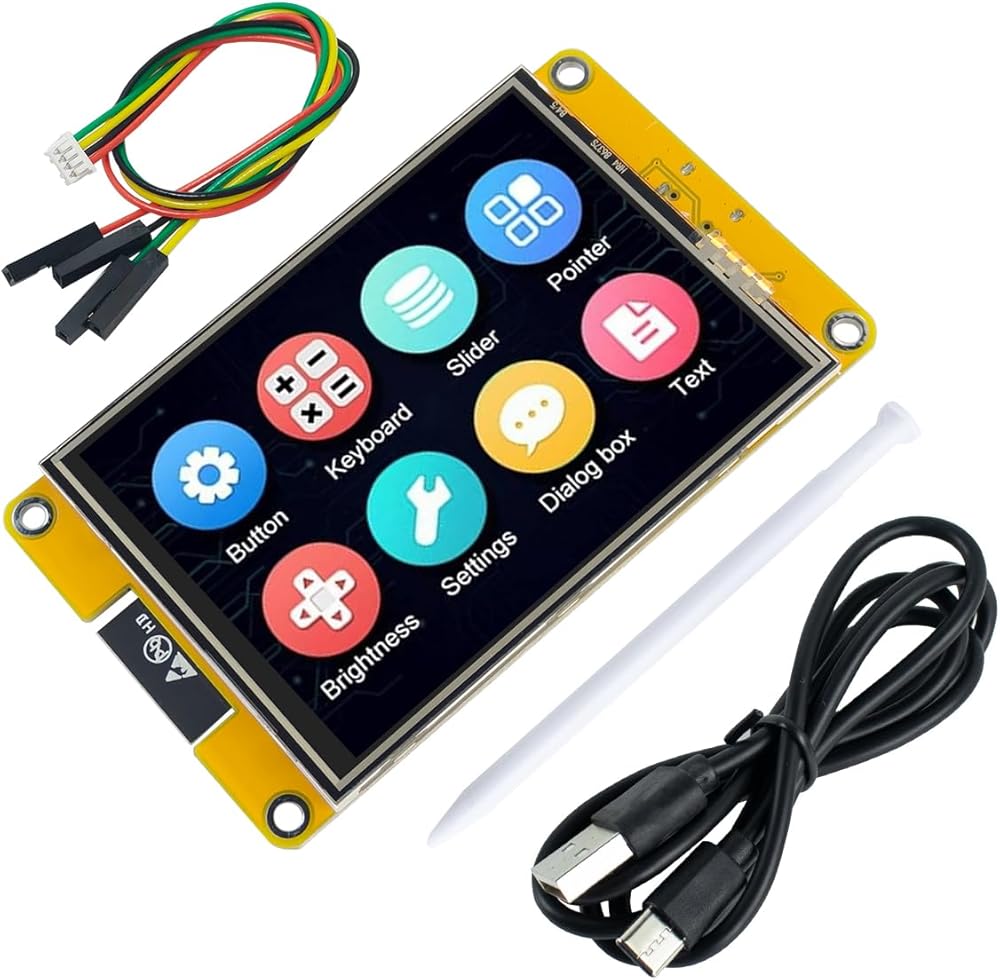

3.2'' ESP32 Display Resistive Touchscreen with WiFi+BT, ST7789P3 Driver 240x320 TFT LCD SPI Screen Module for Arduino

KWD 7.500
KWD 8
Brand
Hosyond
Weight
131 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Controller: Adopts ESP32-32E module, dual-core MCU, integrated Wi-Fi and Bluetooth, main frequency up to 240MHz, memory of 520KB SRAM and 448KB ROM, 4MB flash memory.
  • Touch Screen: 3.5-inch LCD color screen, resolution of 240x320, maximum support 262K color (RGB666), rich colors, with resistive touch function.
  • Rich interfaces and expansion: supports multiple interfaces such as I2C, SPI, UART, built-in micro TF card slot for easy storage expansion, and has a Type-C interface for easy power supply and program download.
  • Multi-function: Contains LCD display, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.
  • Development and learning support: built-in sample programs and detailed online documents, providing low-level driver support, suitable for beginners and professional developers to quickly get started and develop applications.

Description

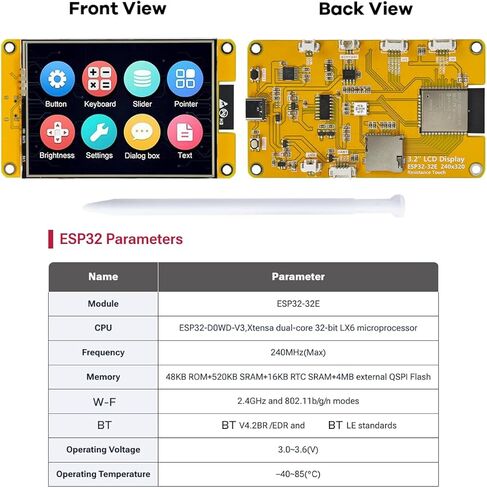

ESP32 Parameters:
Module: ESP32-32E
CPU: ESP32-D0WD-V3,Xtensa dual-core 32-bit LX6 microprocessor
Frequency: 240MHz(Max)
Memory: 48KB ROM+520KB SRAM+16KB RTC SRAM+4MB external QSPI Flash
WIFI: 2.4GHz and 802.11b/g/n modes
Bluetooth Bluetooth: V4.2BR /EDR and Bluetooth LE standards
Operating Voltage: 3.0~3.6(V)
Operating Temperature: –40~85(℃)

LCD Parameters:
Panel Size: 3.2 inch
Panel Type: TFT
Resolution: 240xRGBx320(pixels)
Active Area: 48.60(W)x64.80(H)(mm)
Number of Colors: Max: 262K(RGB666)/Common: 65K(RGB565)
Driver IC: ST7789P3
Display Interface: 4-Line SPI(Connect to ESP32)
View Angle: ALL 0'CLOCK
Backlight Type: White LED*6
Operation Temperature: -10~50(℃)
Storage Temperature: -20~60(℃)

Touch Screen Parameters:
Touch Active Area: 3.2 inch
Touch Screen Type: Resistive touch screen
Touch Screen Resolution: 240x320(pixels)
Driver IC: XPT2046
Touch Screen Visual Area: 50.60(W)x66.80(H)(mm)
Communication Interface: SPI
Material: ITO film +ITO glass
Operation Temperature: -10~60(℃)
Storage Temperature: -20~70(℃)

Size Parameters:
Module Outline Size: Have Touch Screen: 55.04(W)x93.70(H)x5.70(D)(mm)
