Specifications:
Module property: non-isolated buck module
Input Voltage: 4.5V-28V
Output Voltage: 0.8V-20V
Output Current: 3A (Max)
Conversion efficiency: 92% (Highest)
Output Ripple: less than 30mV
Switching frequency: 1.5MHz (highest) typically 1MHz
Operating Temperature: -45 ℃ to 85 ℃

Note:
1.This is buck converter. Only used to lower voltage, not to raise voltage, so the output voltage should be lower than the input voltage.

2.If the output voltage is always equal to the input voltage. Please first turn the potentiometer clockwise more than 10 laps.

3.Do not reverse the positive and negative poles to avoid possible damage. Do not use a light load (less than 10% of the output power) or without load.

Application:
DIY mobile power supply, monitoring power supply, children's car power supply, camera power supply, vehicle power supply, communication equipment power supply, all kinds of occasions (such as aircraft model) that have strict requirements on volume and weight.

Package contain:

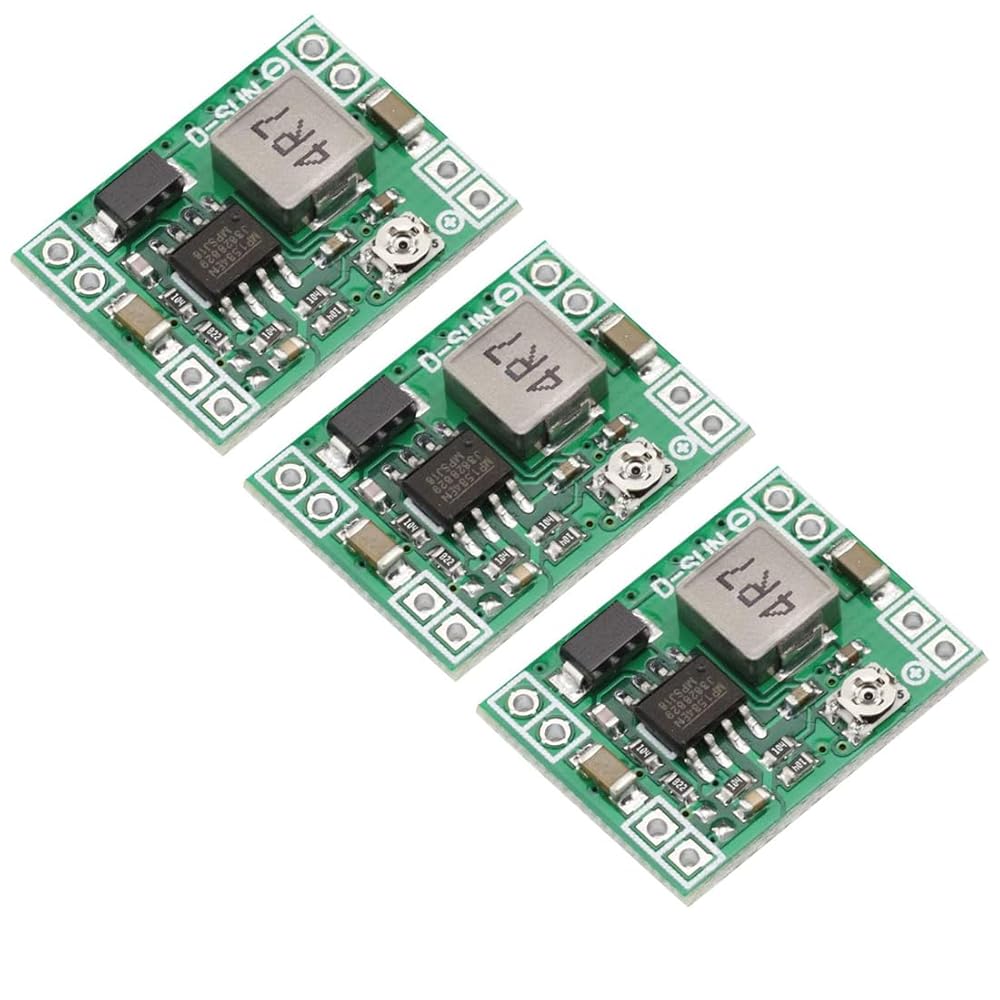

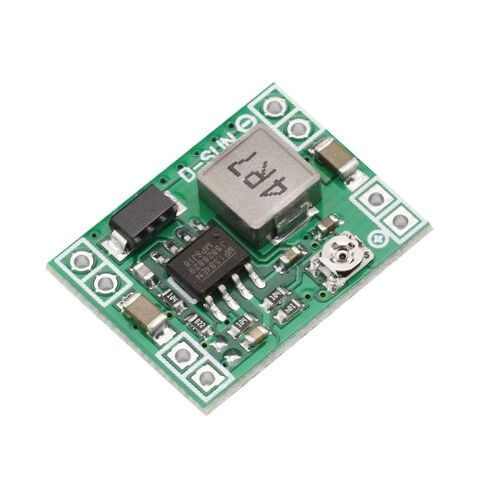

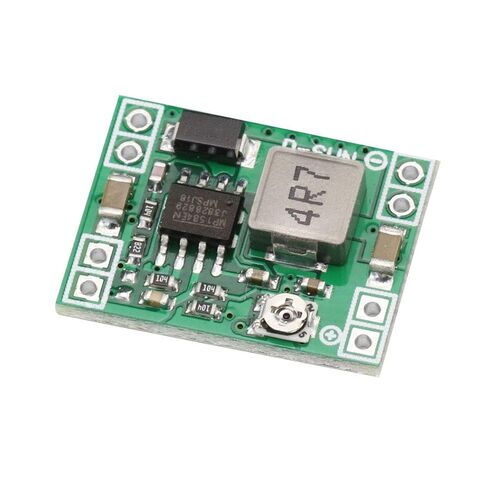

3PCS MP1584EN DC-DC Buck module
