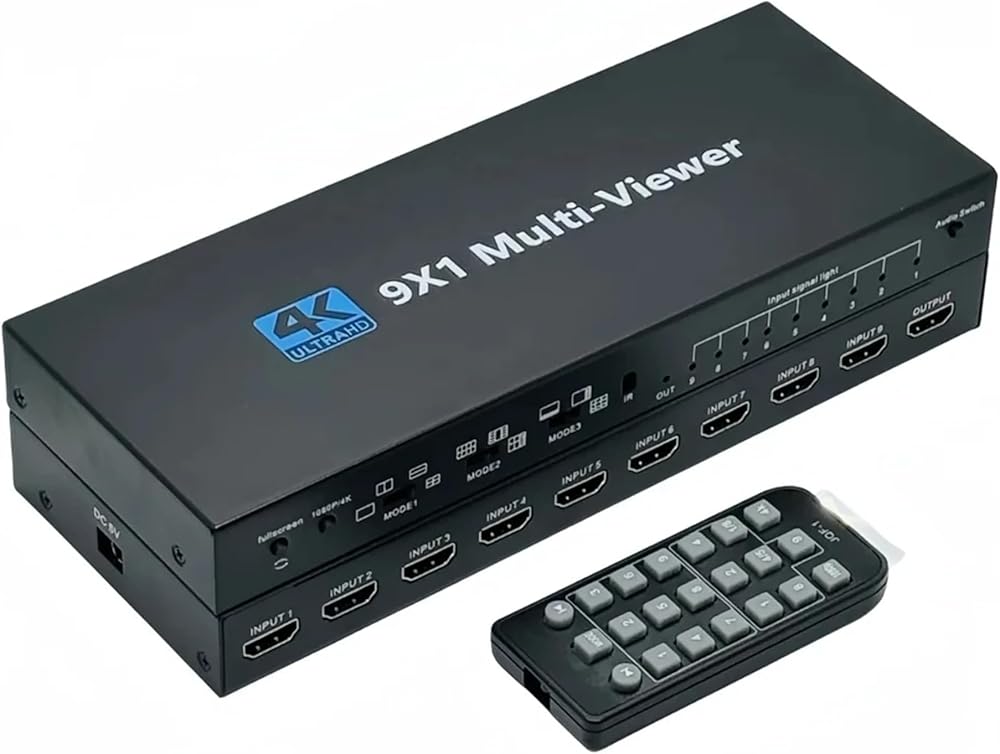

9x1 Model Product Description:

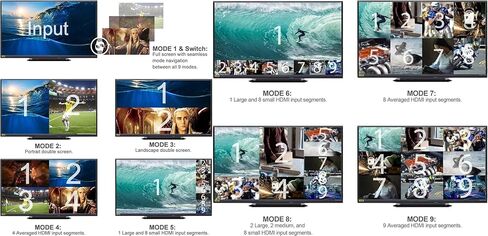

This HDMI 9 Multi-viewer is a high-performance switch withnine-channel HD screen segmentation and seamless switching output. lt candisplay 9HD digital video signal on the same screen, and has a variety ofvideo segmentation, seamless switching 9 HD input signal synchronously. Thecontrol methods of the switch is flexible, it can be switched via button and IRcontrol. lt is a very practical and stable switch that easy to install. lt can beused in the major projects, meeting halls and other places.
HDMl output resolution up to 1080P/60Hz and 4K/30Hz, and there are 9average screens in multi-viewer mode when you first use the product. Thescreen shows color bar in case of no signal input.
Product Features:

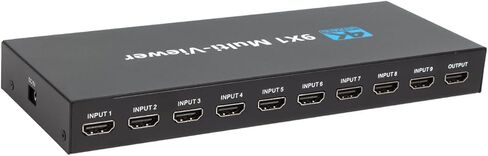

Support 9 HDMI input, 1 HDMI output
Support 9 HDMl signal screen segmentation
Support 9 HDMl signal seamless switching
Switch between 1080P/60Hz and 4K/30HZ， 4K30HZ (RGB) and backwardcompatible.
Support HDMI1.4 HDCP1.4 and backward compatible.
HDMl input and output transmission distance:high speed HDMI cable canreach up to 15M(HDMI cable 19+128AW)
Support IR control*Power Supply: DC5V2A
Specifications:
Support HDMl resolution:24/50/60fs/4K30HZ/1080P/1080i/720p/576p/576i/480p/480i
Support video color format:24bit/30bit/36bit.
Support audio input format:DTS-HD/Dolby-realHD/Dolby-AC3/DSD
Support audio output format: LPCM,PCM2
Max bandwidth: 330Mhz
Max bandrate:10.2Gbps
Input/Output TMDS signal:0.5~1.5V p-p(TTL)
Input/Output DDC sianal: 5Volts p-p(TTL))
Input cable distance: Outout cable distance: Max working current: 5V/0.6A
Operating Temperature range: (-15~+55°C)
Operating Humidity range: 5-90%RH(No Condensation))
Dimension (LX Wx H): 148*63*23mm
