Descriptions:

The biggest advantage of this product is that the components adopt SMT patch technology, built-in protective tube ,anti reverse connection, is a multi purpose converter, The MOS tube and the rectifier tube adopt the new original installation to make sure the safety and stability of the converter, The shell uses new aviation aluminum to heat the heat quickly, Decreasing PCB board area, circuit board wiring is more reasonable, system work steadily

Features:

1.This step down converter adapter features high inverter frequency, quick response, small size, light weight, low energy consumption
2.The electric bicycle transformer converter high efficiency, energy saving energy,with a strong adaptability, such as low temperature, high temperature, humidity, dust, vibration
3.DC electric bicycle converter work steadily and with wide voltage with reverse connection, overflows and short circuit protection, safe and reliable
4.The DC 12v electric scooter converter range of anti voltage fluctuation is wide, the ability is strong, the control accuracy is high.
5.The 72v to 36v electric bicycle converter modular design of circuit structure are convenient for fast installation

Specifications:

Input voltage: DC 36V-72V
Output voltage: DC12V
Output current: ≤10A
Output power: ≤120W, continuous output power 85 (W)
Output voltage waveform: square wave
Inverter efficiency: 90 (%)
Voltage adjustment rate: 0.5 (%)
Load adjustment rate: 1 (%)
Scope: Electric Scooter, horn, LED, hernia lamp, instrument panel, etc
Weight:107g

Package Included:

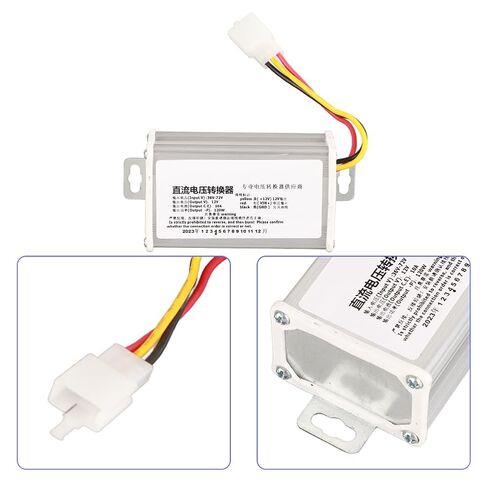

1 x Electric Scooter Converter
