HDMI ARC Audio-Only or Digital S/PDIF Extender Over Ethernet with ARC | Extends Audio Signals up to 150m/490ft Over Cat5e/6 | Supports PCM, DTS and Dolby Digital Audio Formats | CEC Pass Through
Extends digital S/PDIF or HDMI ARC audio signals up to 150m/490ft via a single Cat5e or Cat6 cable
Supports PCM, DTS and Dolby Digital audio formats
High performance, zero signal loss
Supports CEC pass-through between HDMI ARC Input port and ARC Output port
Dual digital audio inputs: 1 x S/PDIF and 1 x HDMI ARC
Dual digital audio outputs: 1 x S/PDIF and 1 x HDMI ARC can output each signal separately
Selectable ARC and S/PDIF modes through toggle switches on both Tx and Rx
Description

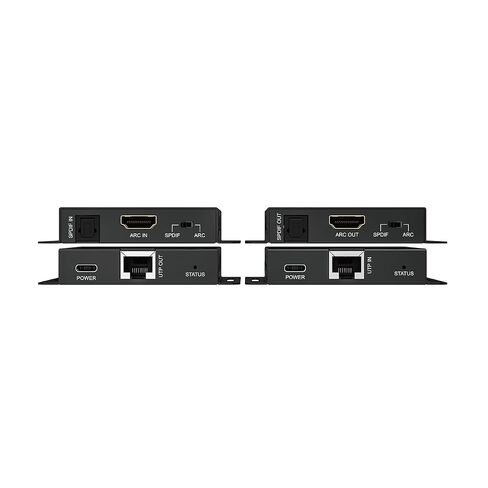

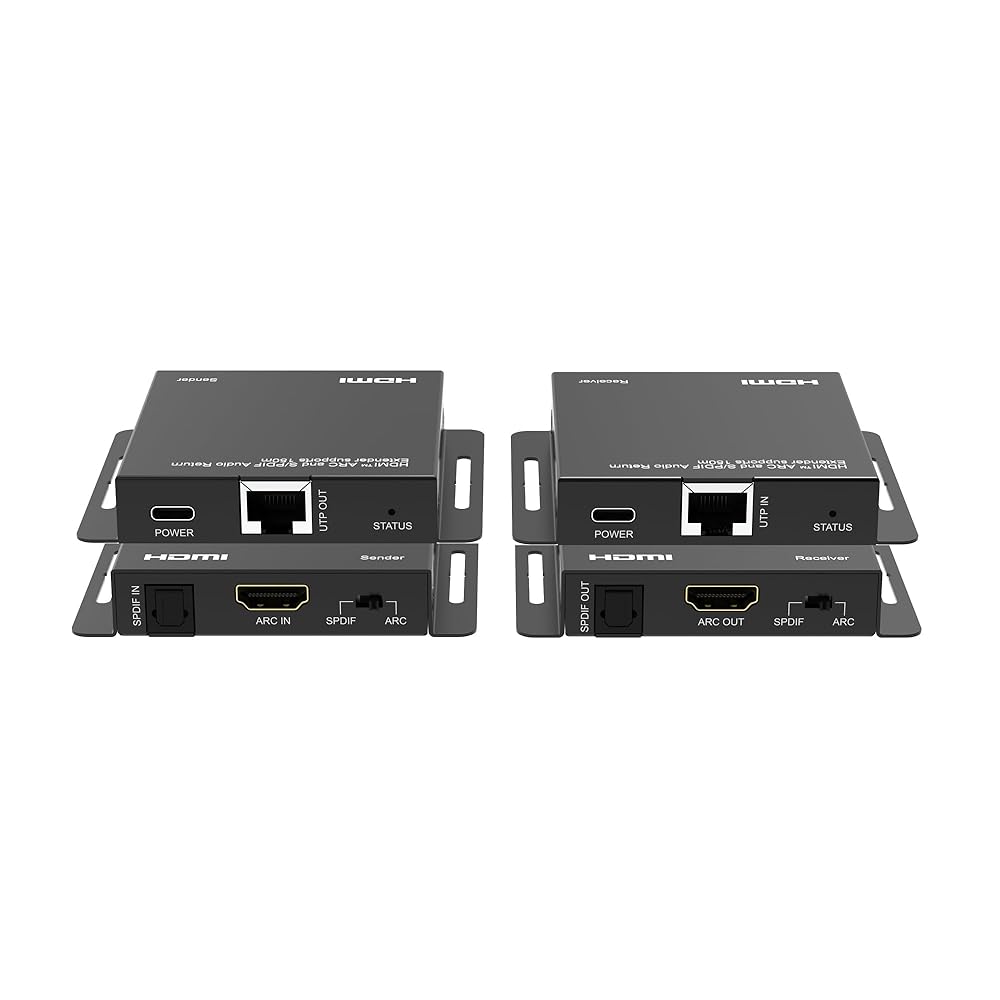

DVDO-CAT-HDMIAudio-150 is an extender that can transmit HDMI ARC (audio-only) or S/PDIF signals up to 490ft/150m via a single CAT6/5e cable. The transmitter includes one HDMI and one S/PDIF audio inputs. The receiver includes one HDMI and one S/PDIF audio outputs. For TVs featuring HDMI ARC, DVDO-CAT-HDMIAudio-150 extends the audio signal from the TV's HDMI ARC port back to the receiver's HDMI input. It supports CEC pass-through, allowing both devices to be controlled with a single remote. For TVs that don't support HDMI ARC, DVDO-CAT-HDMIAudio-150 extends the audio signal from the TV's S/PDIF output back to the receiver's S/PDIF input.
