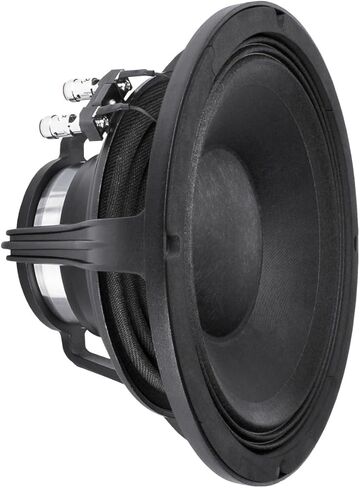

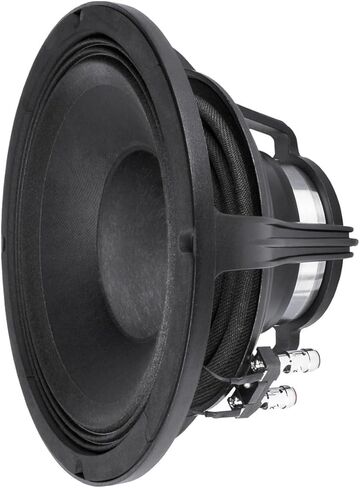

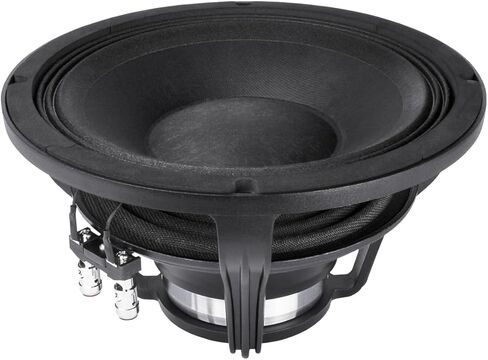

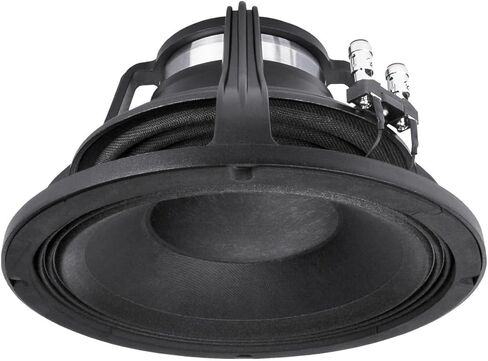

FAITALPRO 10FH500-4 10-inch Midbass Speaker 4-Ohms with 3-in Voice Coil 500 Watt Rms 1000 Watt Max Power Capacity Triple Roll Surround Neodymium Magnet

KWD 59.500
Brand
DEEJAYLED
Category
Car Electronics
Weight
3.8 kg
– 1 +

Special Features

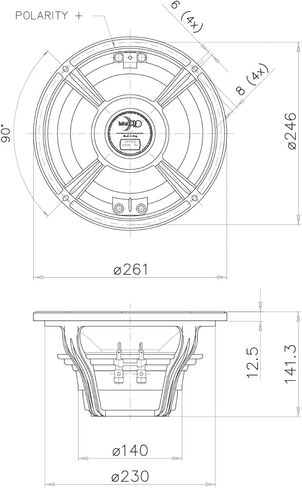

  • "NOMINAL SPECIFICATIONS || Nominal Diameter : 250 mm (10 in) || Overall Diameter : 261 mm (10.28 in) || Bolt Circle Diameter : 246 mm (9.69 in) || Baffle Cutout Diameter : 232 mm (9.13 in) || Depth : 141.3 mm (5.56 in) || Flange and Gasket Thickness : 12.5 mm (0.49 in) || Net Weight : 3.4 kg (7.5 lb) || Shipping Box (Single Carton Box) : 294 x 290 x 203 mm (11.6 x 11.4 x 7.8 in) || Shipping Weight : 4 kg (8.8 lb) || "
  • "TECHNICAL PARAMETERS || Nominal Impedance : 4 Ohm || Minimum Impedance : 4 Ohm || AES Power Handling (1) : 500 W || Maximum Power Handling (2) : 1000 W || Sensitivity (1W/1m) : 96 dB || Frequency Range : 60÷4000 Hz || Voice Coil Diameter : 77 mm (3 in) || Winding Material : Al || Former Material : Glass Fiber || Winding Depth : 18 mm (0.71 in) || "
  • "TECHNICAL PARAMETERS || Magnetic Gap Depth : 10.5 mm (0.41 in) || Flux Density : 1.2 T || Magnet : Neodymium Slug || Basket Material : Aluminum || Demodulation : No || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 1.6 dm^3 (0.057 ft^3) || Spider Profile : 1x constant height waves || "
  • "THIELE AND SMALL PARAMETERS Fs : 60 Hz || Re : 3.3 Ohm || Qes : 0.26 || Qms : 6.2 || Qts : 0.25 || Vas : 24.2 dm^3 (0.85 ft^3) || Sd : 351 cm^2 (54.41 in^2) || Xmax (4) : 7.25 mm || Xdamage (5) : 12.5 mm || Mms : 50.1 g || Bl : 15.5 N/A || Le : 0.64 mH || Mmd : 42.7 g || Cms : 0.14 mm/N || Rms : 3.0 kg/s || Eta Zero : 1.95 % || EBP : 231 Hz || "
  • "SPECIFICATIONS || * Brand : FAITALPRO || * Model Number : 10FH500-4 || 10FH500 || * PART NUMBER (P/N) || Push Terminals - 8 Ohm Version : 02503924 || "

Description

FAITAL 10" MIDBASS 500W 4 OHM
