Specifications:
Image Sensor: 1/2.9-inch Sony Exmor CMOS image sensor
Effective Pixel: 1920*1080 in HD mode; 960H in Analog Mode
Lens: 3.6 mm fixed megapixel lens
Infrared LED: 14µ x 36 pieces with 65-100 feet infrared distance based on environment.
Camera Feature: Day/Night; OSD menu language; Auto/Manual White Balance; Gain control; Noise Reduction; Picture Adjustment; DWDR; OSD support; UTC support (HD mode)

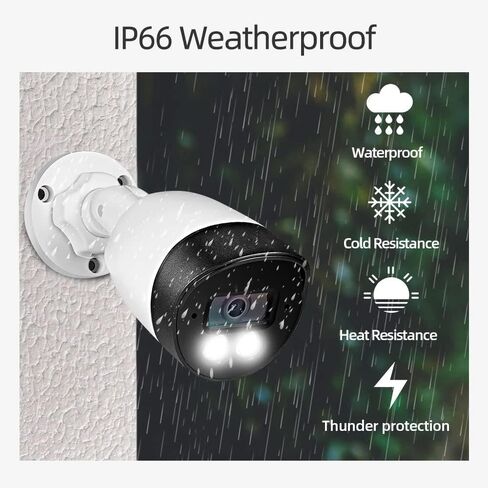

Housing: Metal, IP66
IR-cut Filter: Yes
Power Source: DC12V±10%; 700mA Operation Temperature: 14F-122F, RH95% Max

This 4-in1 camera is fully compatible for the following HD DVRS:
Hikvision, Dahua, GW, LTS, Q-see, Swann, Samsung, Night Owl, Best Vision, HD View,
HQ-CAM, Annke, Aposonic, I-DVR Pro, Vonnic, Digital Watchdog, Logisaf, Sannce,
Venetech, Speco, Alibi, KT&C, Cantek, ZOSI and many more.

Troubleshooting
Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.

2.Check the video output from the camera is securely connected to a video input channel on the DVR.

3.Check the power from the camera is securely connected to a power supply.

4. The camera mode do not match your DVR.there is 2 ways to setup .
(1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR.
(2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.
