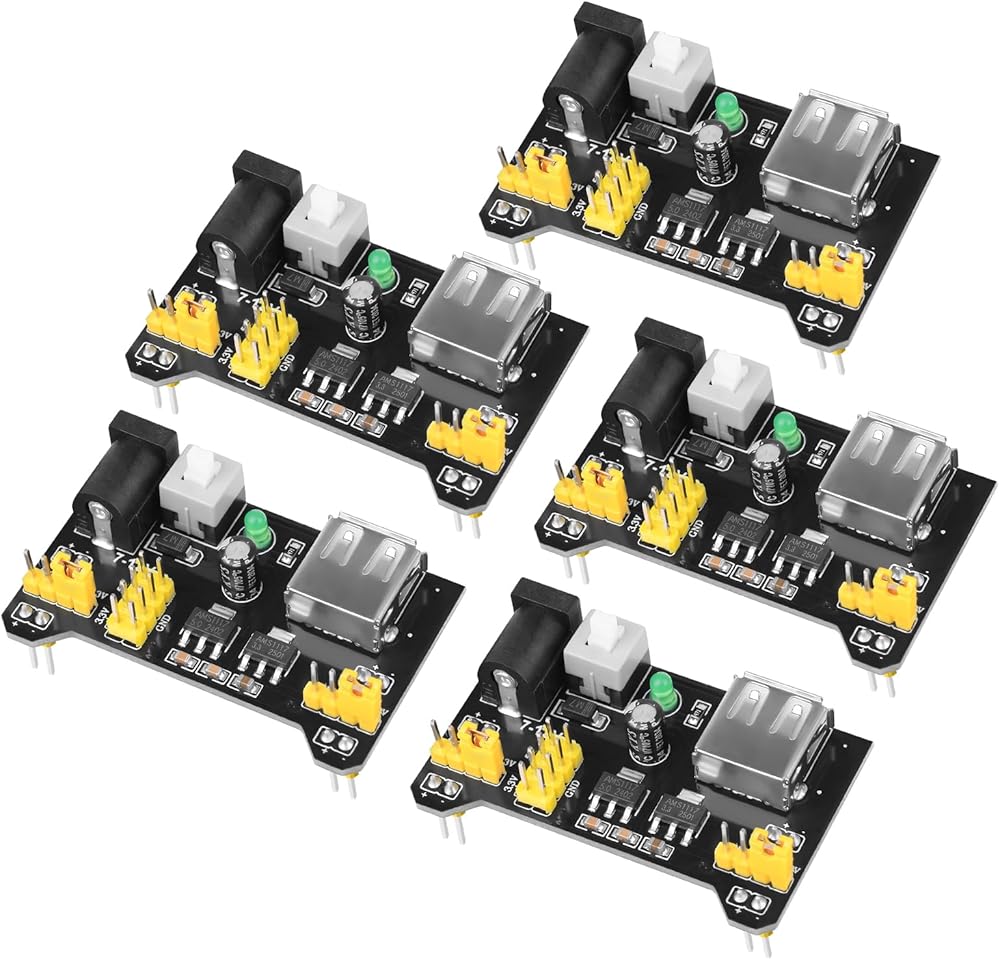

5PCS 3.3 5V Breadboard Power Supply Module

KWD 4
KWD 4.500
Brand
YELUFT
Weight
258 g
Color5PCS 3.3 5V Breadboard Power Supply Module
– 1 +

Special Features

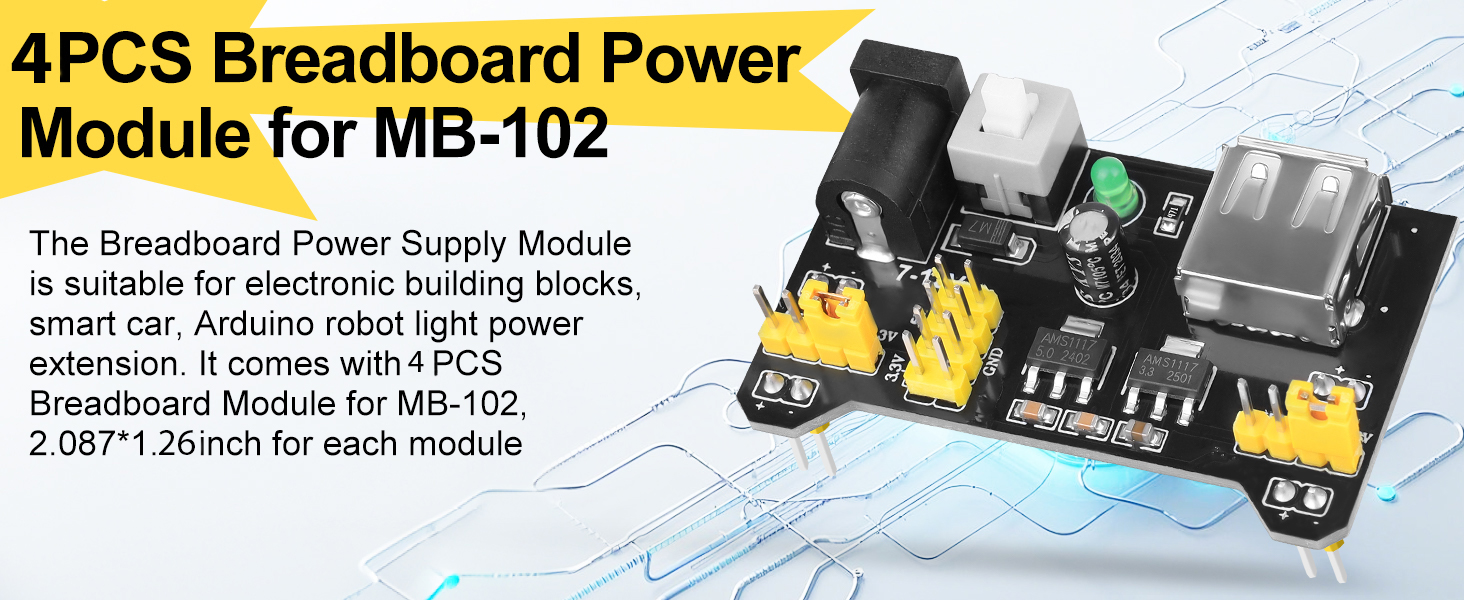

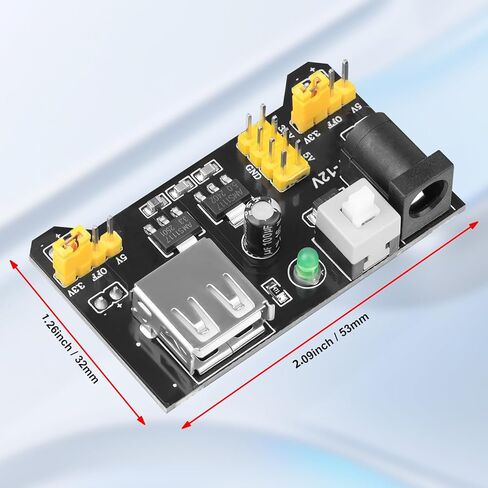

  • Usage: The Breadboard Power Supply Module is suitable for electronic building blocks, smart car, Arduino robot light power extension. It comes with 4PCS Breadboard Module for MB-102, 2.09*1.26inch for each module
  • Specifications: Input voltage: 6.5-12V（DC）or USB power supply; Output voltage:3.3V/5V can switch over; Maximum output current:＜700ma； Fluctuation two road independent control can switch over to 0V, 3.3V, 5V; On-board two groups of 3.3V, 5V DC output plug pin is convenitent to external lead use

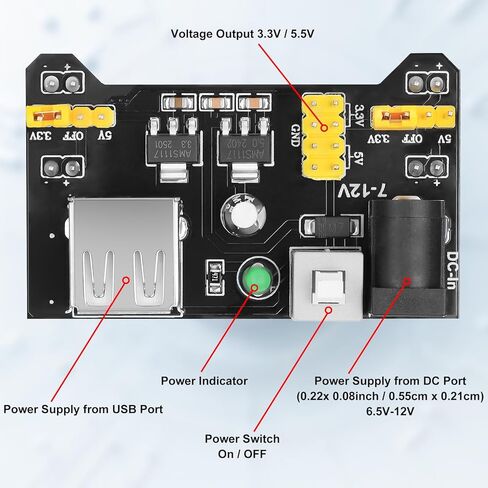

  • Power Indicator: The breadboard is designed a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board

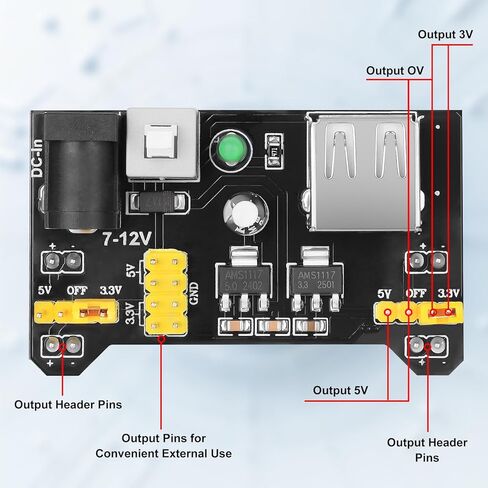

  • Independent Control: Jumper pins are used to select the voltage levels on each side of the breadboard power rails. You can choose between 5V, OFF, and 3.3V
  • Note: The module requires a DC input voltage in the range of 6.5V to 12V. If the input voltage is 5V and the output voltage is not reaching to 5V, there will be a voltage drop between the input and output of the voltage regulator chip
