Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, CM5 Base Board with Color-Coded 40PIN GPIO Header/PCIe/MIPI/HDMI/USB 3.2/USB 2.0 FFC/Gigabit Ethernet Interface,etc.

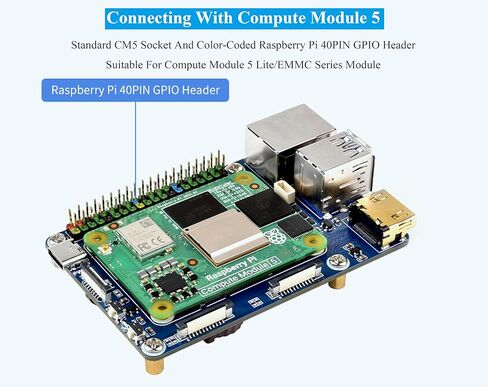

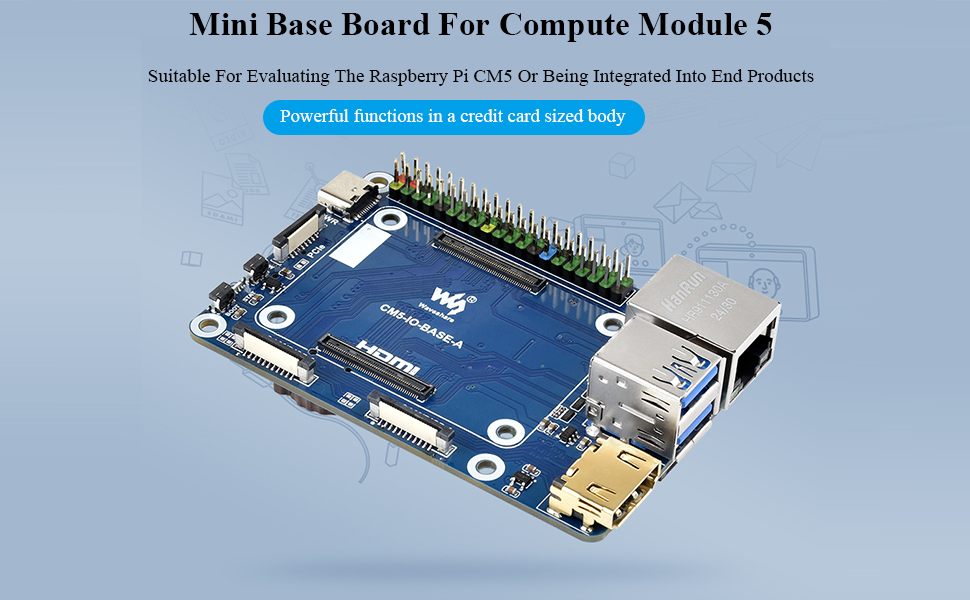

This is Mini Base Board (A) with standard CM5 socket and color-coded RPi 40PIN GPIO header, compatible with Compute Module 5 Lite/eMMC Series. Suitable for evaluating the Raspberry Pi CM5 or being integrated into end products

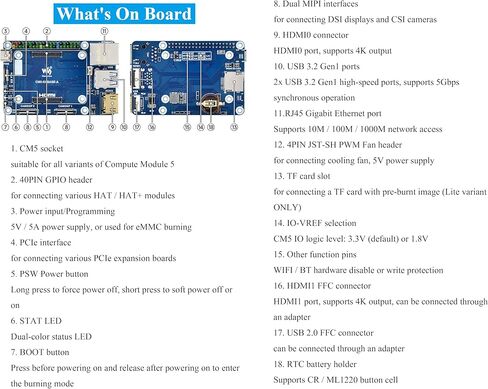

Onboard multiple connectors, more convenient to use. Including 16PIN PCIe/ MIPI/HDMI/USB 3.2/USB 2.0 FFC/ RJ45 Gigabit Ethernet Interface, etc.
GPIO Header and PCIe Connector: Equipped with Color-Coded 40PIN GPIO header, for connecting various HAT / HAT+ modules. And it equips with 16PIN PCIe (PCIe Gen2/3 x1) for connecting various PCIe expansion boards
4K Video Output and Dual HDMI Port: One is HDMI0 port, supports 4K output. The other is HDMI1 FFC connector, supports 4K output too, which can be connected through an adapter
Rich USB Interfaces: Onboard with Dual USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation. And onboard with USB 2.0 ports via a 6-pin FFC connector

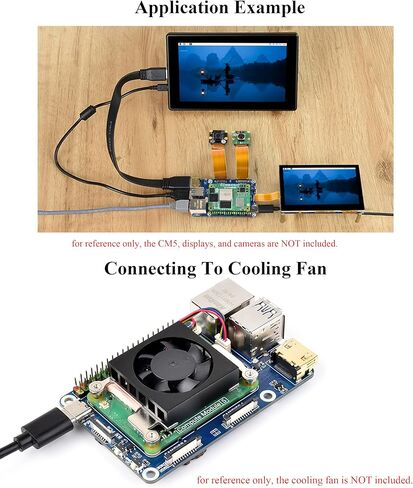

Dual MIPI Interfaces and Fan Header: Onboard with Dual MIPI interfaces for connecting DSI displays and CSI cameras. Fan Header and Power Input: 5V, 4PIN JST-SH PWM connector. Power Input is DC 5V 5A
Comes with Online Development Resources / User Manual / Precautions, please follow there: bit.ly/43btnqj
