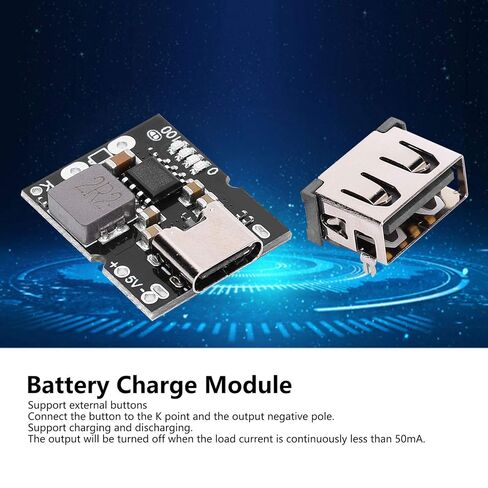

When the load current is less than 50mA continuously, the output will be turned off. Support charging and discharging.

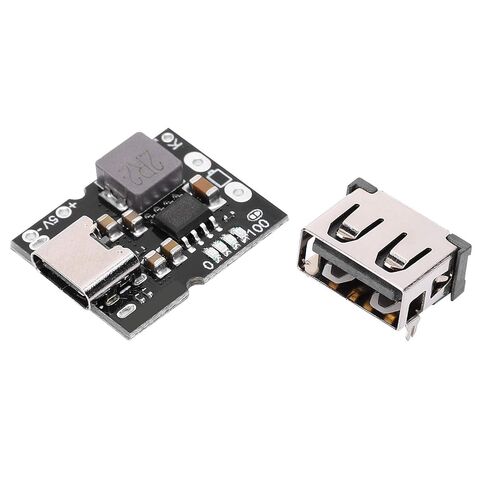

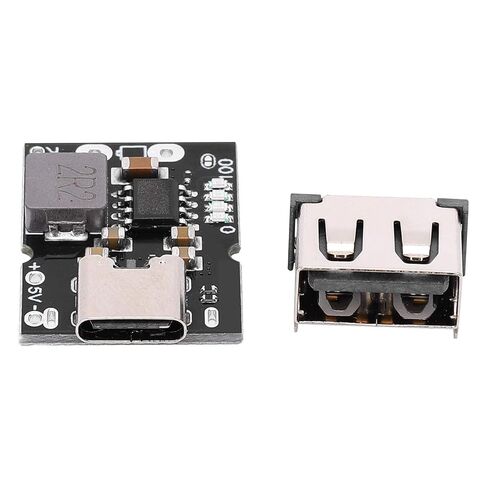

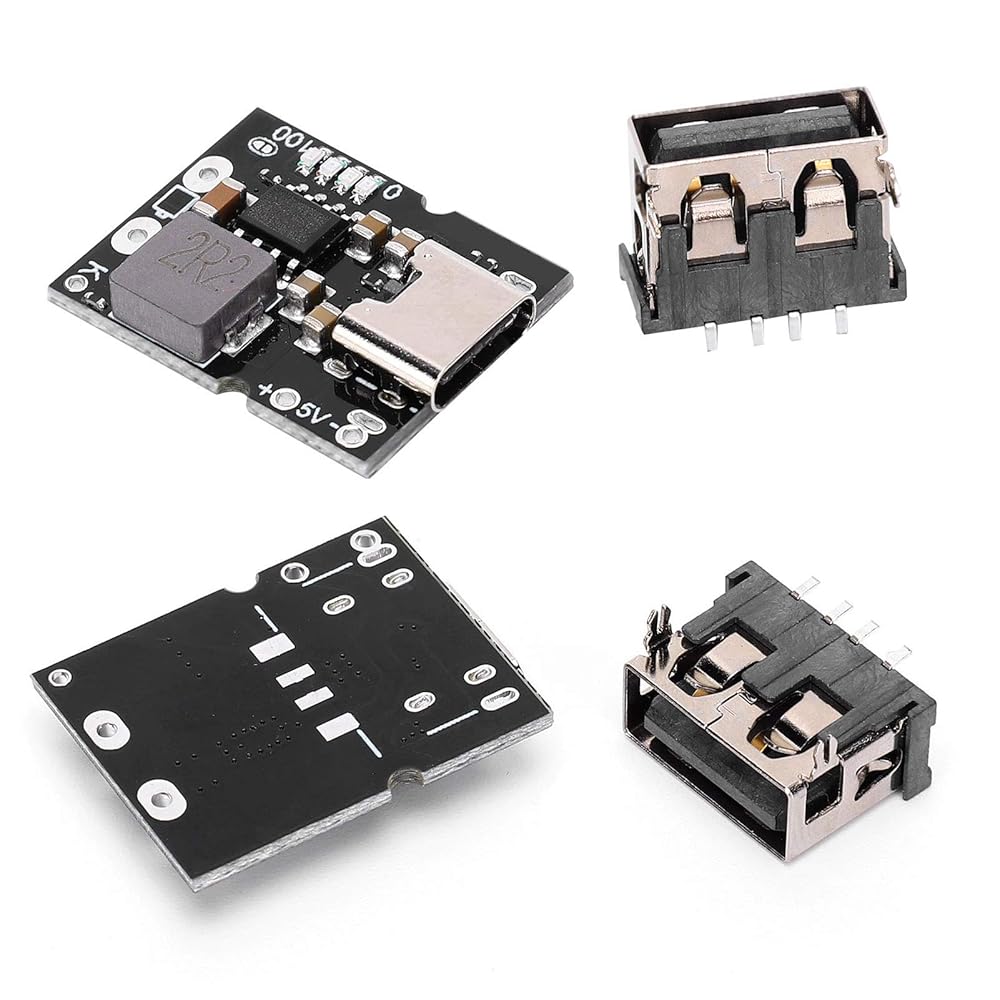

USB-A female socket soldering position is provided on the back of the product, and the female socket can be installed manually.

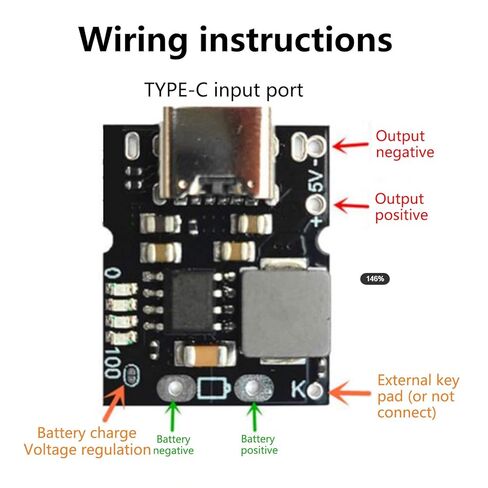

Use: Battery module supports external button, connect the button to K point and output negative terminal, short press to turn on power display and turn on 5V output, short press twice in a row will turn off power display and turn off 5V output.
Auto termination: When the final voltage is reached and the current drops to 100mA, the cycle will be automatically terminated.
Note: The cycle restarts when the battery voltage drops below 4.1V. When the battery voltage falls below 2.8V, the battery will be pre-charged with a current of 180mA.
