The LM2596 regulator is monolithic integrated circuit ideally suited for easy and convenient design of a step−down switching regulator(buck converter). It is capable of driving a 3A load with excellent line and load regulation. With a small input voltage of 4 V and a max of 40 V, this will supply sufficient power to your circuit.
Specifications:
Input voltage:4V - 40V
Output voltage: 1.25V - 37V(Note: The input voltage must be more than 1.5V higher than the output voltage)
Output current: 3A, recommendations within 2.0A use, high current needed to enhance heat dissipation
Conversion efficiency:92%( highest )
Switching frequency:150KHz
Work temperature:-40 - +85
LED Voltmeter Range: 0V - 40V(Note: The input voltage is lower than 4V, and the onboard voltmeter does not work and display)
LED Voltmeter Error: 0.1V
Built in over-temperature protection function
Built in current limit function
Built in output short-circuit protection function
Size: 57mm * 36mm * 14mm/ 2.24″×1.42″×0.55″(L*W*H)
Weight: 21g
NOTE:
Tap the right button to switch the input or output voltage measurements and has a light display which is being measured voltages, and save the settings, even then boot off
Voltmeter can be turned off when not needed can easily touch the left button
the trimpot (potentiometer) on this module may need several COUNTERCLOCKWISE turns of adjustment before you start to see any change in the output voltage
Package Included:

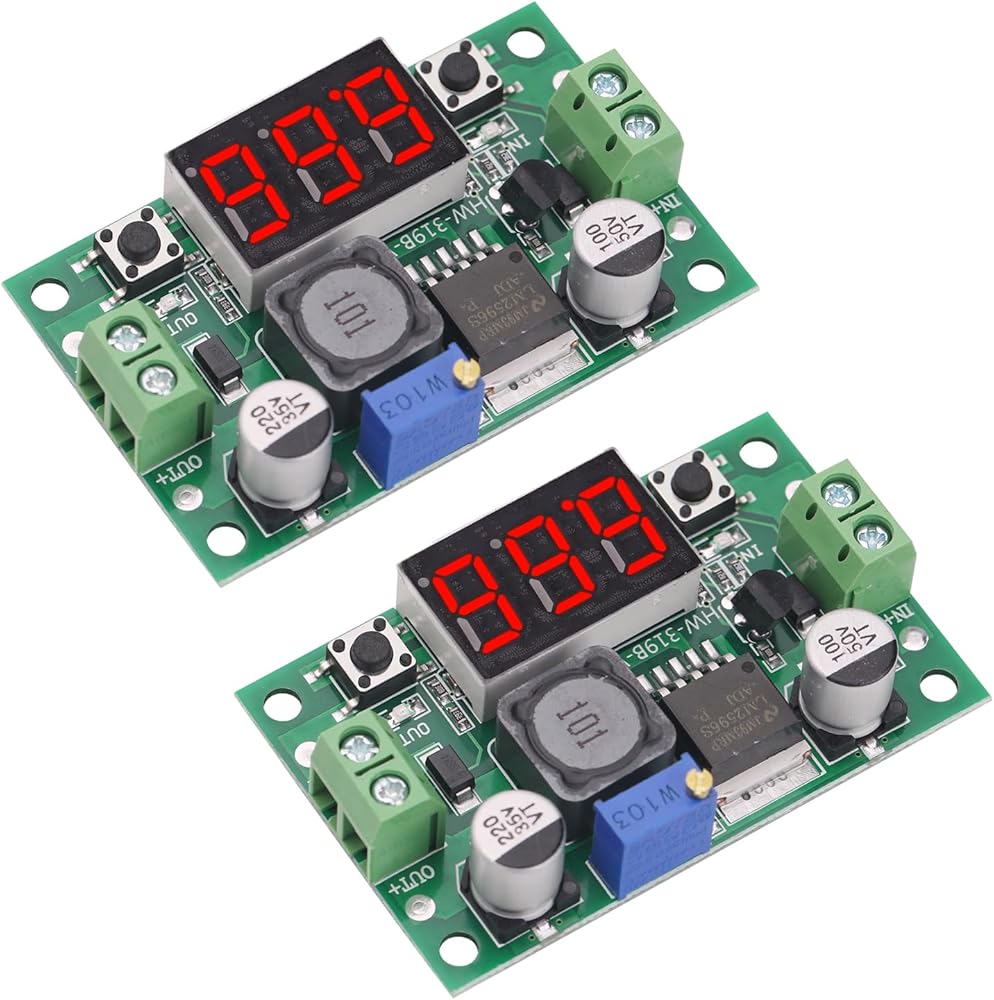

2 x LM2596 Adjustable Switching Buck Converter Module
