ESP32-S3 with 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-Core Processor, 368×448 Pixels, Onboard Audio Codec, Support Offline Speech Recognition and AI Speech Interaction
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

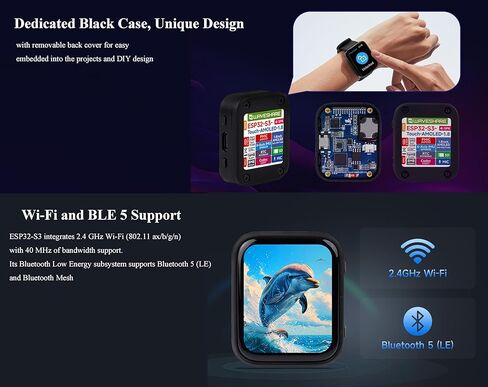

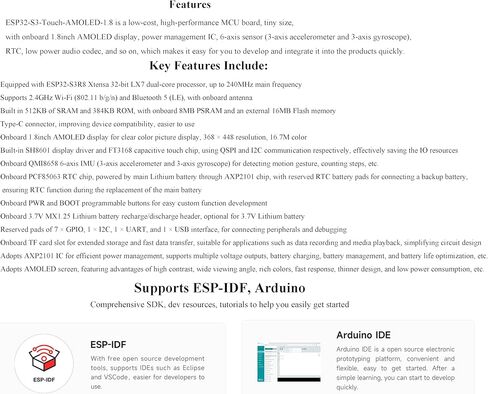

Powerful Processor: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Support 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna, to meet the networking needs of IoT devices.

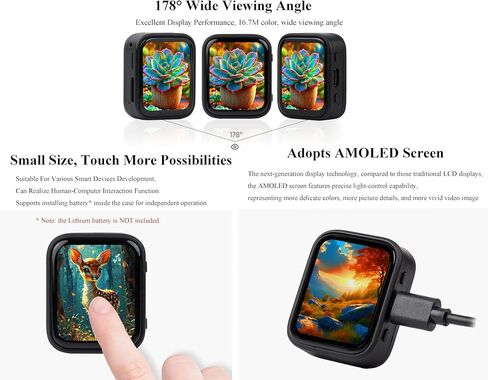

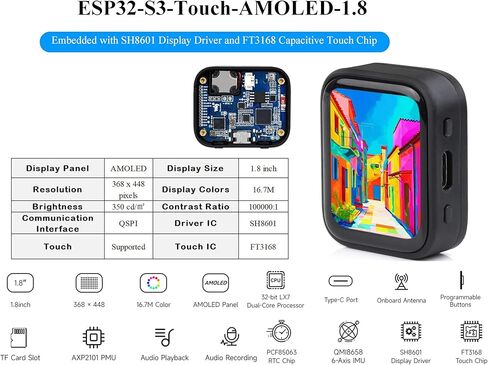

AMOLED Touch Display: Onboard 1.8inch AMOLED capacitive touch display for clear color picture display, 368 x 448 resolution, 16.7M color. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.

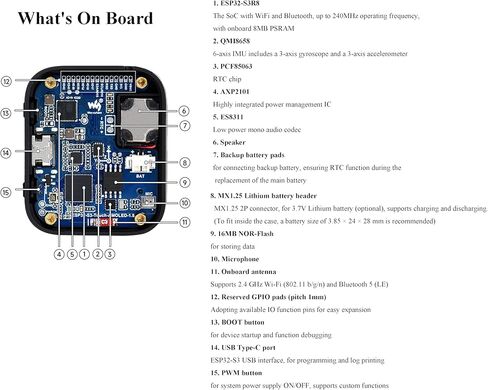

Driver and Touch: SH8601 driver chip (controls screen display through QSPI interface, saving pin resources). FT3168 capacitive touch chip (achieves precise multi-touch through I2C interface).
Multifunctional Sensor: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Power Supply and Connection: Type-C connector. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery. Onboard 3.7V MX1.25 Lithium battery recharge/discharge header ( Note: Battery is not included)

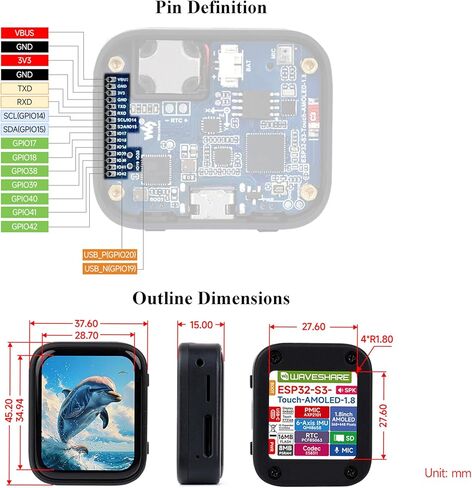

Rich Peripheral Interface: Reserved pads of 7 x GPIO, 1 x I2C, 1 x UART, and 1 xUSB interface, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design. Onboard PWR and BOOT programmable buttons for easy custom function development.

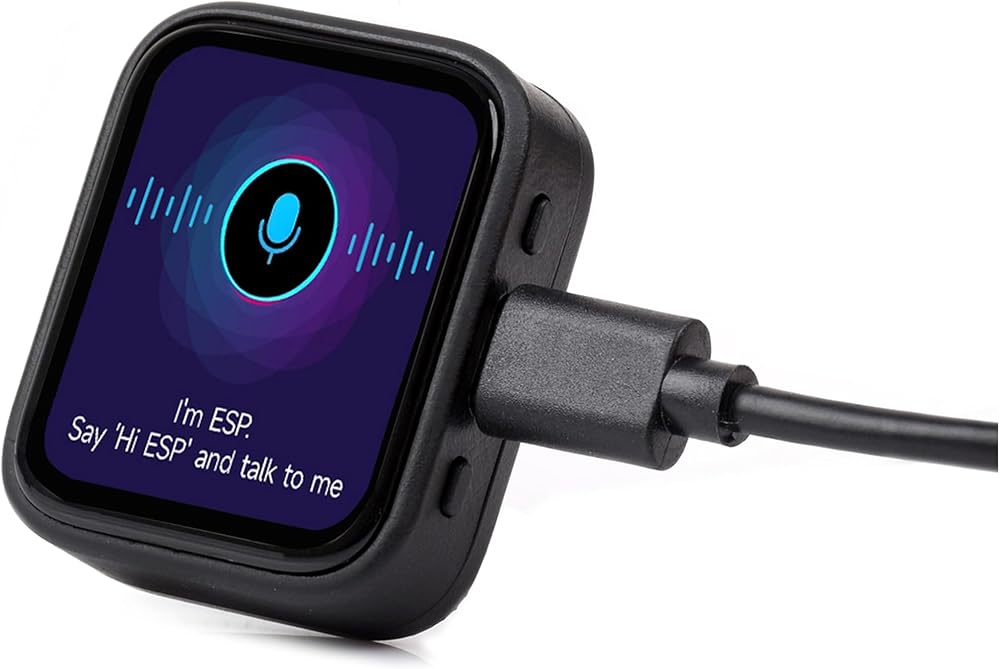

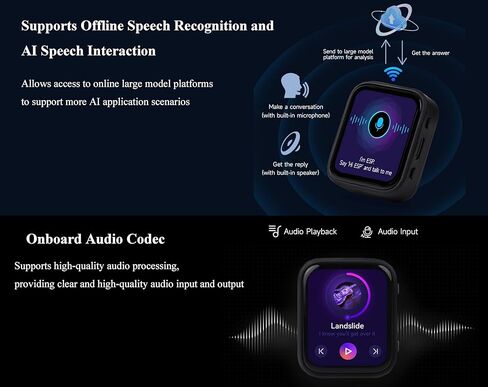

Support AI Speech Interaction: Onboard audio codec, supports high-quality audio processing, providing clear and high-quality audio input and output. Supports Offline Speech recognition and AI Speech Interaction, allows access to online large model platforms to support more AI application scenarios.
Application: It is based on high-performance hardware + rich peripherals + low-power design. It is suitable for the development of smart devices that require interactive interfaces, motion sensing, and wireless networking. It is an ideal solution for the Internet of Things, consumer electronics, and industrial control fields.
Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4hieV3N
