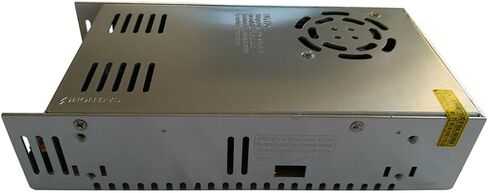

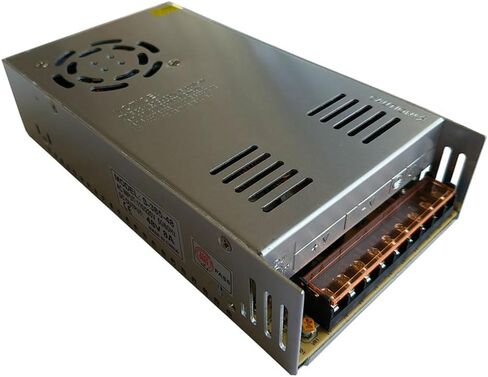

AC 110V/220V to DC 48V 8A 380W Universal Regulated Switching Power Supply Adapter Transformer Driver Converter for LED Strip Light, Security Camera System, Computer Project

KWD 8

Brand
Henxlco
Weight
499 g
1 +

Special Features

  • Dual input voltage: AC 110V/220V. Output: DC 48V 8A max, Output voltage is adjustable ±15%. IN-DOOR USE ONLY!
  • With independent output channels, it can power more devices. The maximum output of each channel can reach 8A 380W. Total output power is 8A 380W.
  • Works with device that draws less than 8A, such as DC 48V 1A~6.4A. The max use of power should be no more than 80% of the full loads 6A 300W.
  • Over Voltage Protection, Overload Protection,Short Circuit Protection,Over Current Protection
  • High quality Widely used in Industrial automation, electronic equipment, LED display, LED Lighting, LED Strip, CCTV cameras Security System, Radio, Computer Project, home appliance etc.
  • Over Voltage Protection, Overload Protection,Over Current Protection, Over Temperature Protection, Short Circuit Protection Why does the LED power supply stop working? Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.

Description

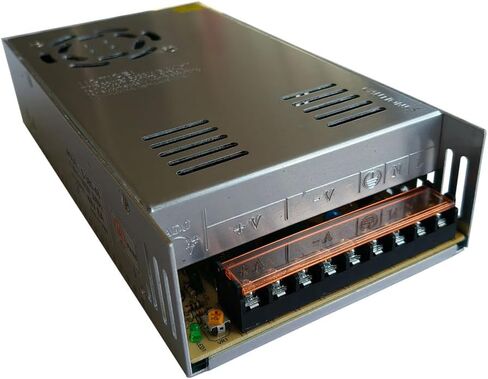

Package: 1 x 48V 8A 380W Regulated Switching Power Supply (power cord is not included). Be sure to confirm the input and output voltage first: 1. You can choose the proper input voltage (110V/220V) by a black switch to avoid damaging. Left is: AC 110V, Right is AC 220V. Please set the switch to 110V for USA/CA. 2. The 48V 8A output voltage can be regulated by ±15%, which greatly expand its application range. There is a yellow botton on the right corner. Turn the yellow button clockwise, the output voltage could be fine tuning. 3. The max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 48V 8A 360W power supply to power devices less than 6A 300W. 4. This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended. 5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary. 6. Connection instruction: L/N: AC power input(L: Live wire,N: Negative wire); +V: DC power output“+”; -V: DC power output“-“; +V ADJ: Adjust the output voltage (15%). 7. It comes with built-in cooling fan and temperature detector. Cooling fan will not run until the inner temperature reaches 113°F (45℃), which makes heat dissipation more efficient. *Over Voltage Protection, Overload Protection,Over Current Protection, Over Temperature Protection, Short Circuit Protection. *Why does the LED power supply stop working? Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
