SEE BEHIND WITH CLARITY, YOUR FAITHFUL REVERSE-DRIVING COMPANION
Product Information

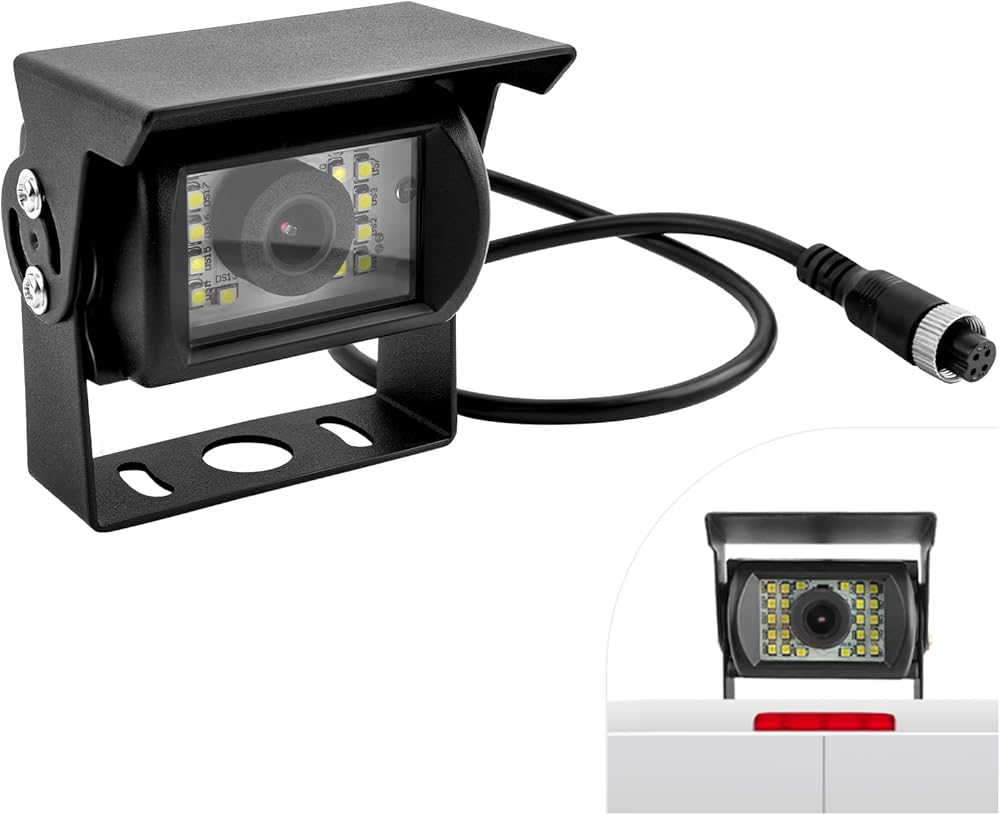

Overall Size: 3.10 * 3.00 * 2.85 inch
Mounting Bracket Size: 2.85 * 1.10 * 1.04 inch
Glass Screen Size: 2.55 * 1.71 inch
Waterproof Visor Size: 3 * 1.83 inch
Connection Cable Size: 1.79ft * 0.20in * 0.20in
Mounting Hole Diameter: 0.19 inch
Weight: 8.89 oz
Material: Glass, Copper, Aluminum Alloy
Color: Black
Package: 1 x 4Pin Back Up Camera for Cars
Warm Reminder
Please check that your in-vehicle display or wired system uses the standard GX12 and M12 4-pin connector before purchasing
Product Parameters
Operating Voltage: DC 12V / 24V
Connector: Standard GX12 or M12 4 Pin Connector

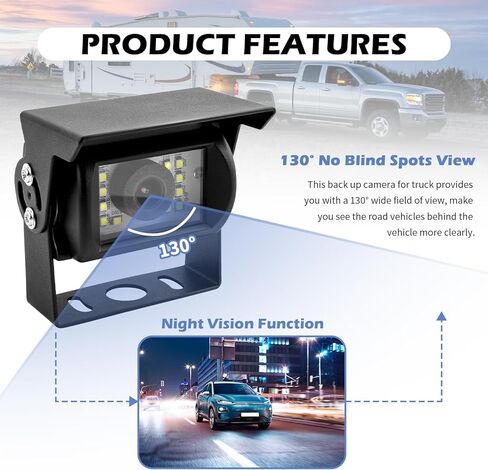

Viewing Angle: 130°
Waterproof Rating: IP69
Signal System: PAL / NTSC / AHD
Pixel: 752 * 5852
Number of Lamp: 24
Interface: Aviation Plug
Positive Image / Mirror Image: Mirror Image
Product Features
Intelligent Processing Chip: Equipped with an intelligent image processor and pure copper cable, bring you no lag, and no frame dropout image effect
Night Vision: Equipped with 24pcs LEDs allow you to see up to 50 feet away even when driving at night
HD 6 Layer Lenses: Photosensitive sensor makes it easy to cope with low light. The thicked 6 layer lenses, providing clear vision effects
Water and Fog Proof: Adopt the sealing process with glue injection, waterproof, fogproof, shockproof
360° Adjustable: The HD backup camera can rotate 360° up and down, get the best viewing angle easily
Product Installation
1. Secure the camera to the back of the car with screws
2. Loosen side screw to adjust the camera according to your need
3. After determining the angle, tighten the screws on both sides of the camera
Product Wiring Method
1. Connect the aviation head of the wire to the convex part of the aviation wire end, and tighten the locking cap clockwise.
2. Connect the other end of the aviation cable to the display
3. Please refer to the instruction manual in the package for the specific wiring method of the display cable
