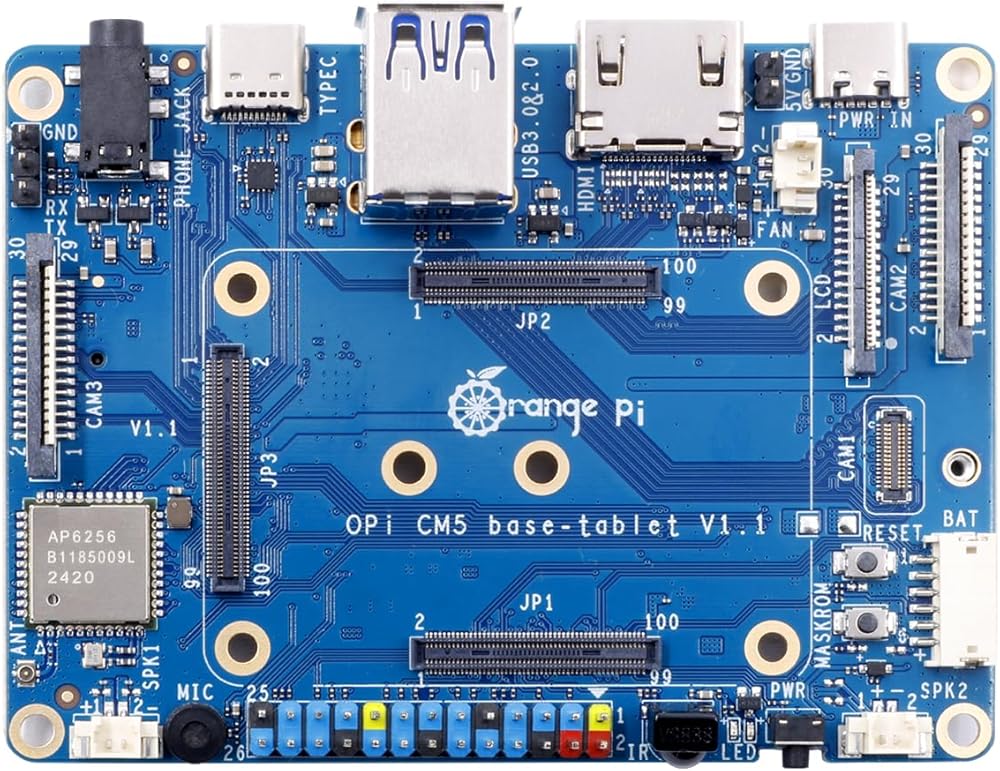

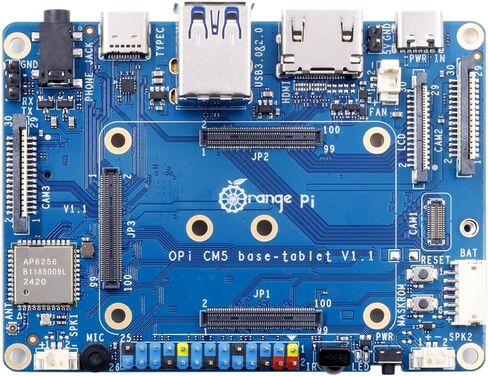

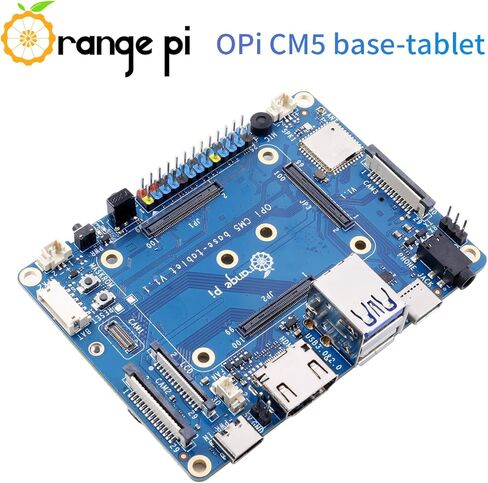

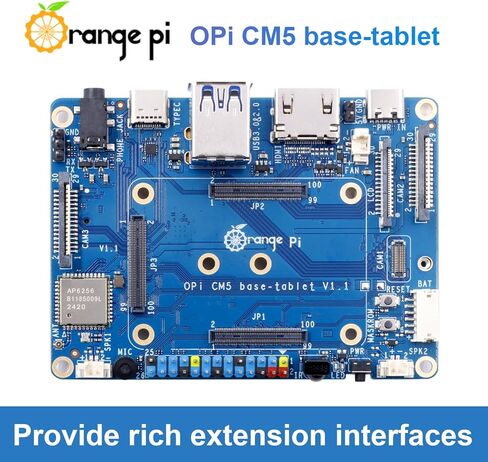

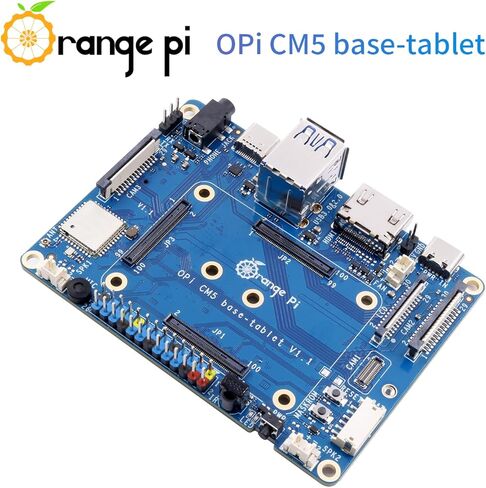

CM5 Tablet Baseboard with M.2 M-Key Slot, Supports WiFi 5.0 and Bluetooth 5.0, Compatible with Orange Pi CM5 Core Board

KWD 13
Brand
Orange Pi
Weight
91 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

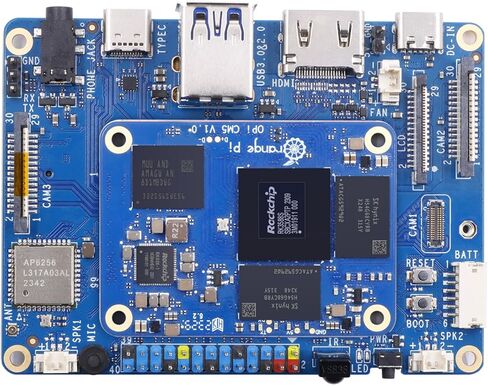

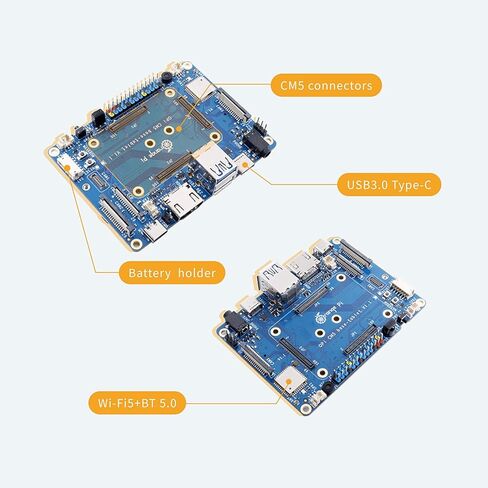

  • 🍊[Orange Pi CM5 Tablet Base Board]: This official base board is designed for seamless integration with the Orange Pi CM5 core board, providing a versatile platform for development or as an embedded solution in end products.
  • 🍊[Wireless Connectivity]: Equipped with Wi-Fi 5, Bluetooth 5.0, and BLE support, enabling fast and reliable wireless communication for various applications.
  • 🍊[Battery Support]: Includes a battery holder with a board-to-wire connection (6-pin, 1.5mm pitch), supporting single Li-ion battery charging with a current of up to 3.78A.
  • 🍊[Video Output]: Supports HDMI 2.1 with up to 8K@60Hz resolution, DP1.4 ALT (4 Lane) via a shared Type-C connector, and MIPI DPHY TX (4 Lane) for versatile display integration.
  • 🍊[Camera Interface]: Features MIPI CSI (4 Lane) and 2×MIPI DPHY RX (2 Lane) interfaces for advanced image and video input processing.

Description

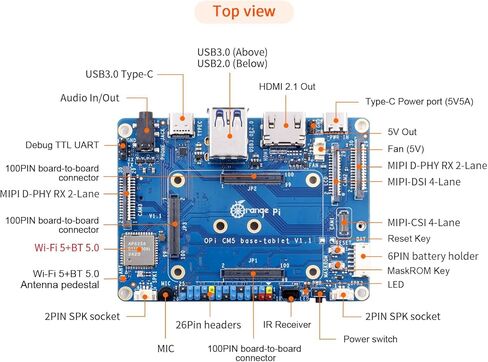

Hardware Parameters
Board-to-board connector: 3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4v
Memory: MicroSD (TF) slotM.2 MKEY slot/ NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSD
USB: Type-C USB3.0/USB3.0/USB2.0
Video output: HDMI2.1, supports up to 8K @60Hz/DP1.4 ALT 4Lane (shared TYPE C connector)/MIPI DPHY TX 4 Lane
Camera: MIPI CSI 4 Lane/2*MIPI DPHY RX 2Lane
Audio:3.5mm headphone jack audio in/out/HDMI 2.1 eARC/Input: onboard MIC/Output: 2*SPK sockets, 2pin 1.25mm
Wi-Fi, BT module: Onboard Wi-Fi5+BT 5.0/BLE module:AP6256

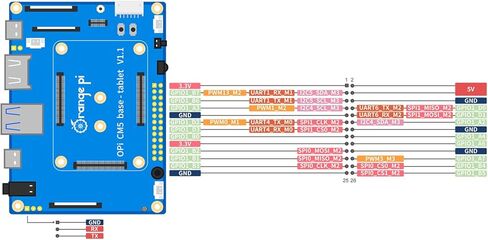

Expansion port: 26pin double-row pinsDual row pin: 2.54mm 26PinSupport DC 5V and 3.3V power output.Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* MaskRO/1*RESET/1 * PWR IN
Power supply: Support Type-C power supply, 5V @ 5A
Battery Holder: Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A
Button interface: 6pin FPC socket, pin distance 0.5mm
Sensor interface: 6pin FPC socket, pin distance 0.5mm
LED: Power indicator: red; status indicator: green
Fan: 5V 2pin 1.25mm socket
SPK: 2PIN 1.25mm socket
RTC: Test pad spare, can be connected to 3V spare RTC battery
Debugging: Debugging serial port UART
PCB: 90mm*66mm*1.6mm
Weight:43g
