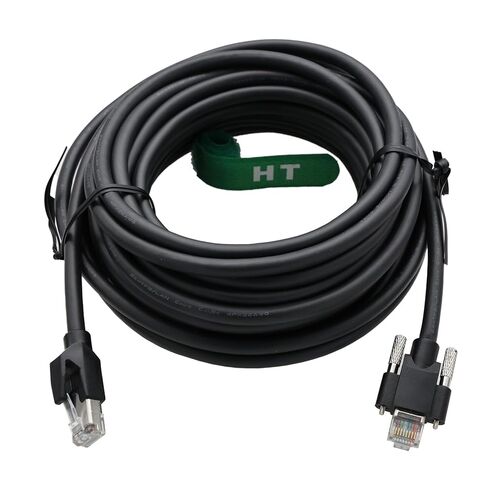

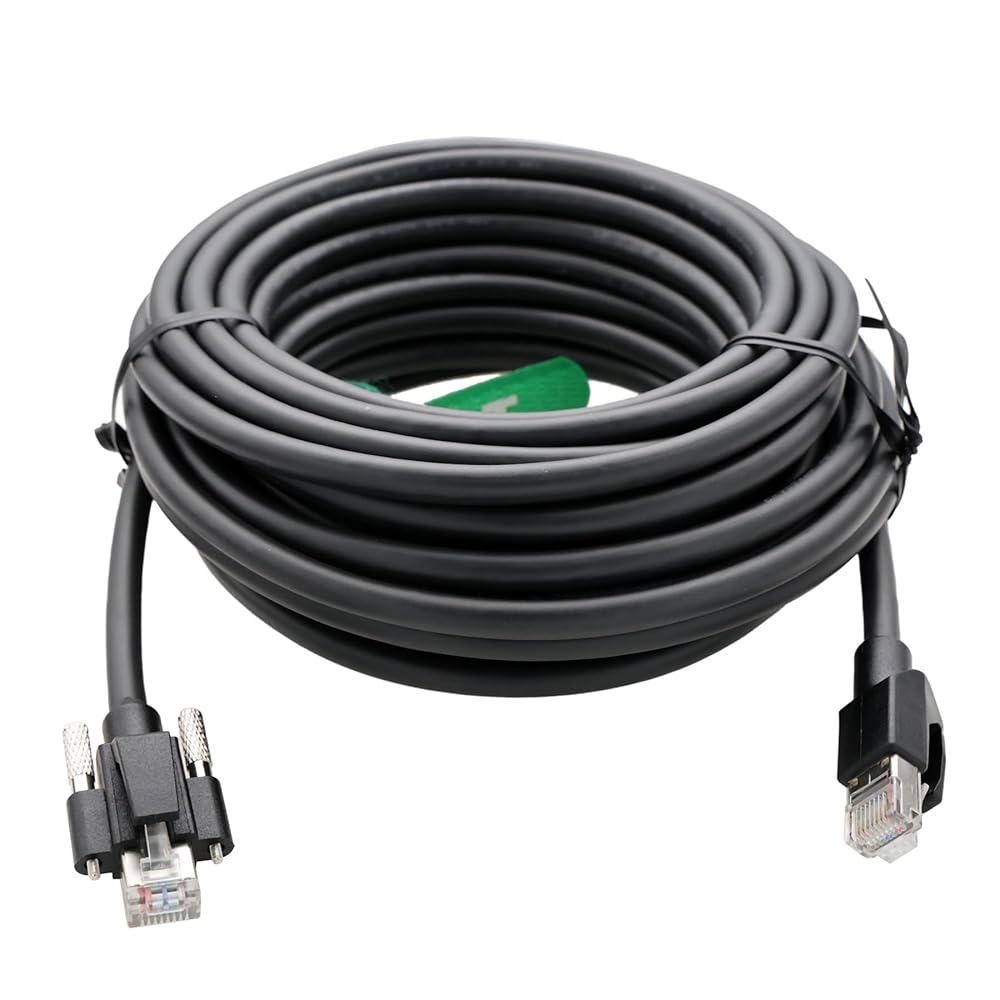

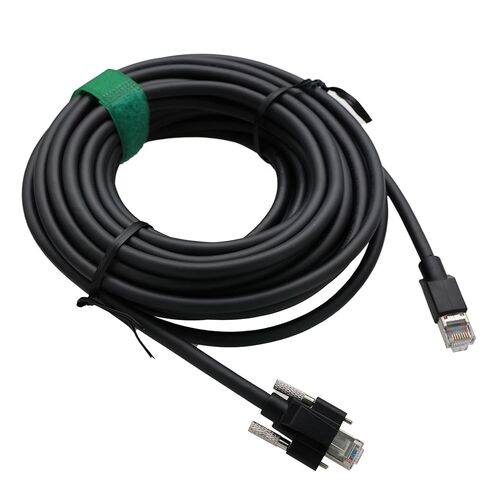

Horizontal screw locking to latch RJ45 30m

KWD 7.500
Brand
HangTon
ColorHorizontal screw locking to latch RJ45
Size30M
– 1 +

Special Features

  • Gigabit Ethernet CAT6 RJ45 cable for connecting a industrial GigE camera and image frame grabber to a vision system for data transmission, camera control, PoE power supply

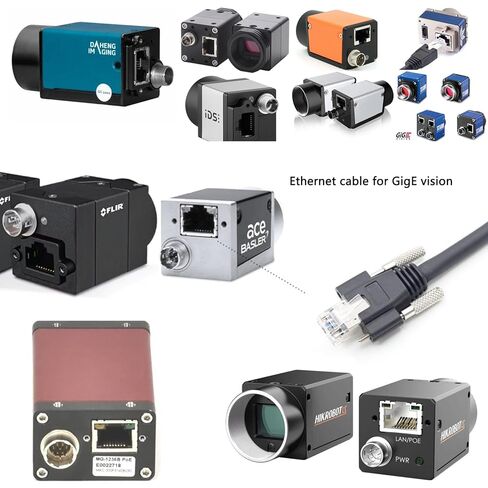

  • The cable is perfect for Allied Vision AVT Manta Mako Prosilica Goldeye Guppy Pro, Basler ace2 aviator racer runner ToF, Baumer SXG LX, Cognex In-Sight 8000 8405 and industrial camera, Teledyne Dalsa Genie Nano Spyder3, FLIR Pointgrey Blackfly Grasshopper Zebra2 Flea3, Hikvision HikRobot CS, iDS imaging CP EnsensoX NXT rio SCP SE Warp10, JAI C Go Spark Apex Fusion Sweep, Keyence, Sony XCG, SICK, The Imaging Source 33 38
  • Also fits for DAHENG Mercury Mars, Emergent Vision Bolt Accel Eros, illunis CMV, Imperx Bobcat, MindVision, Microvision, Omron M, PixeLINK, TOSHIBA TELI BG, Vieworks, and more GigE CCD imaging camera to computer, laptop, PC, network router, server, switch in area of industrial automation, motion control, machine vision, automated factories
  • [ Connectors ] RJ45 with horizontal thumb locking screws, to RJ45 with patch. Gold plated contacts, 8P8C, shielded, durable and stable solid connection. This cable is screwable to the camera GigE interface. Shock and vibration resistant
  • [ Cable Features ] Cat 6, high-speed data transmission 5 Gbps, 250 MHz bandwidth. Cable length is 1 meter. Bare copper conductors, STP shielded twisted pair ( better protection against EMI/RFI interference ), flexible PVC cover, 24 AWG conductor gauge, and 6.8mm cable diameter. IP67 waterproof weatherproof for outdoor use, UV resistant

Description

Built with high flex, outdoor CMX rated, double shielded cable and using RJ45 connectors, these assemblies are as robust as they come. They are designed to exceed category standards to ensure network throughput even in harsh industrial or weather environments.

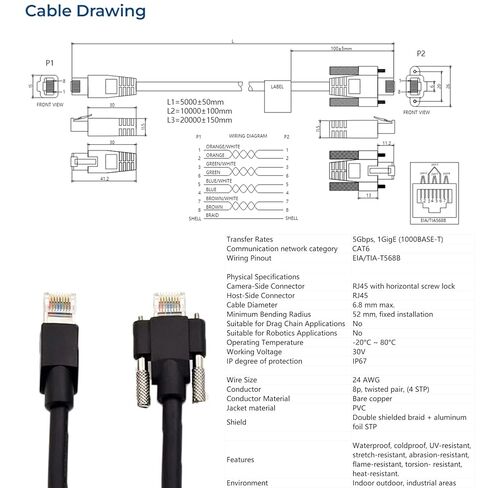

Transfer Rates 5Gbps, 1GigE (1000BASE-T)
Communication network category ‌CAT6
Wiring Pinout EIA/TIA-T568B

Physical Specifications
Camera-Side Connector RJ45 with horizontal screw lock
Host-Side Connector RJ45
Cable Diameter 6.8 mm max.
Minimum Bending Radius 52 mm, fixed installation
Suitable for Drag Chain Applications No
Suitable for Robotics Applications No
Operating Temperature -20°C ~ 80°C
Working Voltage 30V
IP degree of protection IP67

Wire Size 24 AWG
Conductor 8p, twisted pair, (4 STP)
Conductor Material Bare copper
Jacket material PVC
Shield Double shielded braid + aluminum foil STP

Features Waterproof, coldproof, UV-resistant, stretch-resistant, abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
Environment Indoor outdoor, industrial areas
