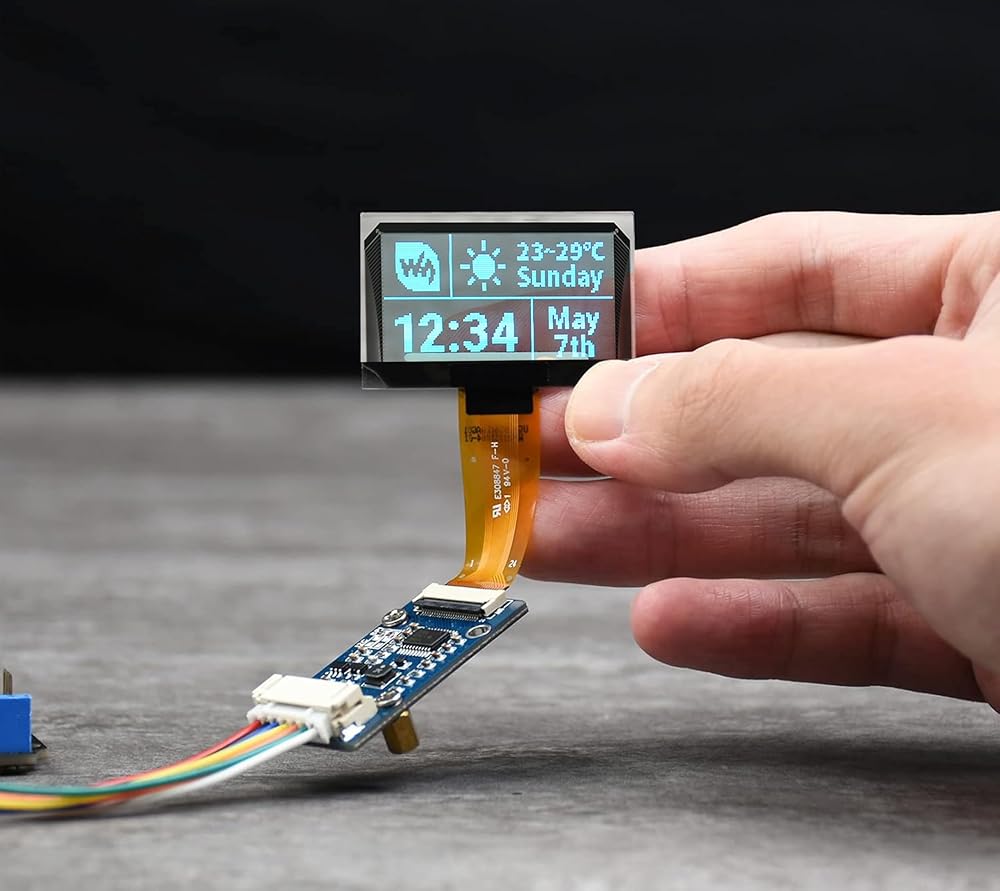

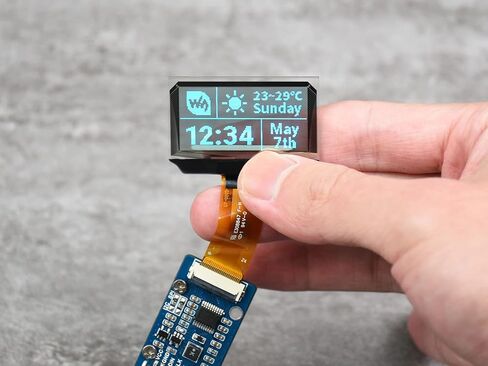

1.51inch Transparent OLED Compatible with Raspberry Pi 5/4B/3B+/3B/A+/Pi Zero W/Pi Zero 2W, 128 x 64 Resolution, SPI/I2C Interfaces, Embedded Independent Driver Chip, Light Blue Color Display
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

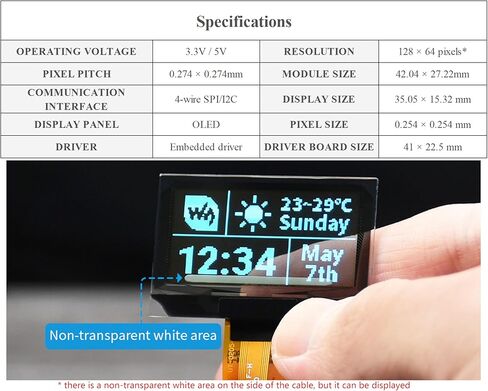

1.51inch Transparent OLED, full viewing angle, 128 x 64 Resolution, embedded independent driver chip, using SPI/I2C Interfaces. Operating voltage is 3.3V / 5V.

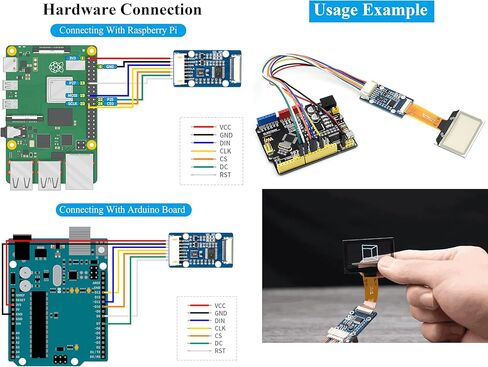

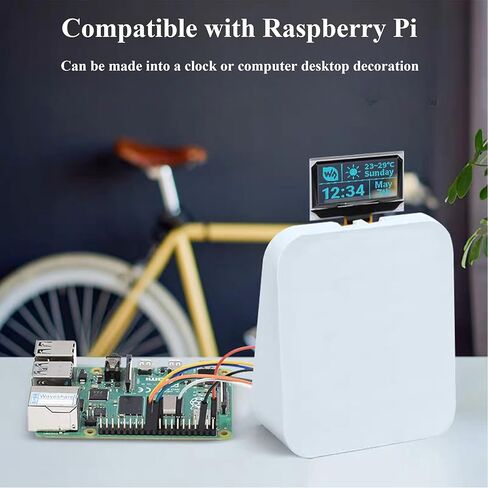

Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate. Compatible with Raspberry Pi (Pi 5/4B/3B+/3B/A+/Pi Zero W/Pi Zero 2W,etc.)/Ardui-no/STM32.

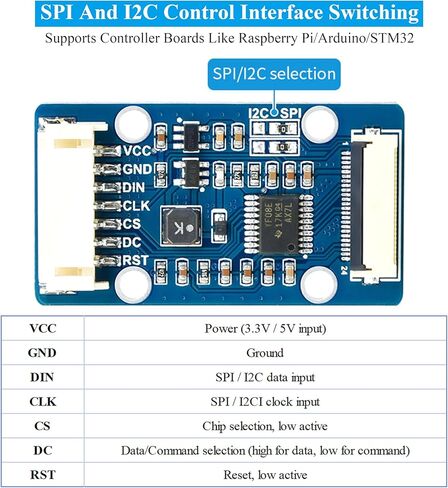

Note: The program defaults to SPI mode. If you need to switch the mode, please modify DEV_Config.h. For details, please refer to the program description - bottom hardware interface - interface selection.
Using Attention: 1. Be careful not to connect the power supply in reverse. 2. The same picture cannot be displayed for a long time, or there will be afterimages and cause damage to the OLED.
Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4keLnGx
