JTAG Debugger Programmer, Downloader Supports two Modes of MDK JTAG/SWD,Virtual Serial Port, Applicable to GD32/STM32, etc.

KWD 8
Brand
Treedix
Weight
64 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Widely Applicable】The downloader is suitable for the entire ARM Cortex-M series, including GD32/STM32, etc.

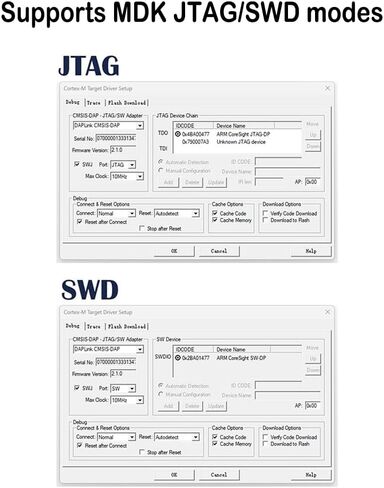

  • 【Supports MDK JTAG/SWD Modes】Standard 20PIN JTAG/SWD can be used without installing drivers; supports MDK compilation download.

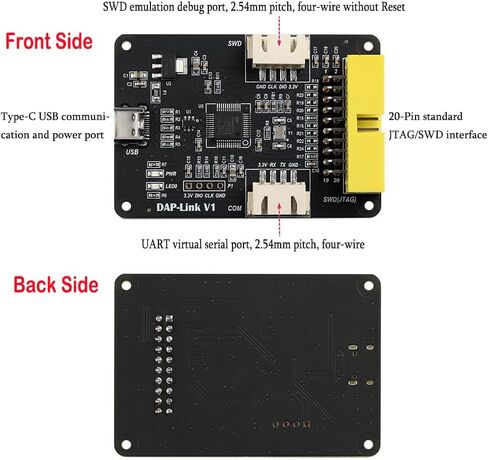

  • 【Supports Virtual Serial Port】SWD debugging port, 2.54mm pitch, four-wire without reset; UART virtual serial port, 2.54mm pitch, four-wire.

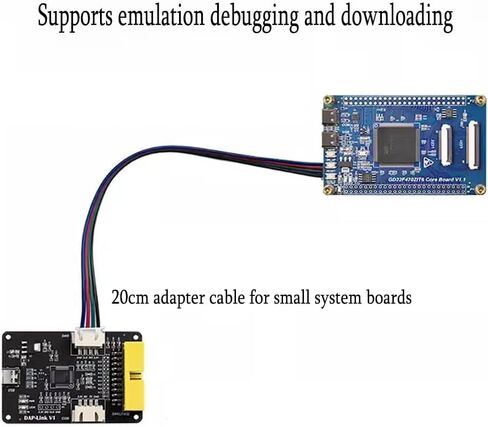

  • 【Supports Connect to Small System Boards】Equipped with a dedicated 20cm adapter cable for small system boards, the dedicated SWD port can directly connect to small system boards via the dedicated cable. Supports debugging and downloading.

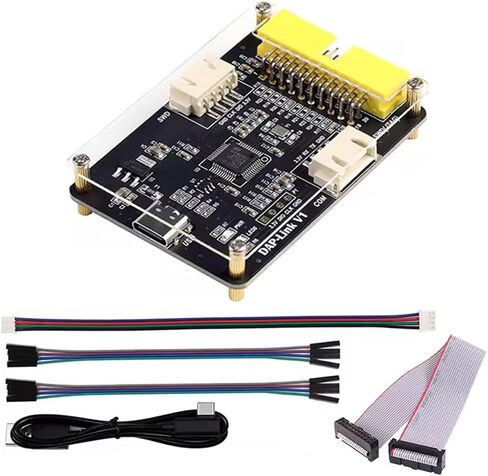

  • 【Package Includes】1pcs DAP-Link V1 downloader; 1pcs Acrylic and copper pillar screws and nuts (not pre-installed by default);1pcs 20cm 2.54mm pitch to 2.0mm pitch adapter cable;1pcs 15cm 2.54mm pitch standard DuPont cable set (4 wires, 2 sets);1pcs 50cm angled Type-C USB data cable;1pcs 20cm 2.54mm pitch 20-pin standard JTAG FC gray ribbon cable

Description

Specification:
Power Current: 20-30mA
Power Voltage: 5V
Dimensions: 45mm*65mm

Functions:
1. Supports ARM Cortex-M series core chips, including GD32/STM32.
2. Comes with a USB virtual serial port / two-in-one.
3. Standard 20PIN JTAG/SWD can be used without installing a driver.
4. Supports MDK compile download.
5. SWD dedicated port can be directly connected to small system boards through a dedicated cable.

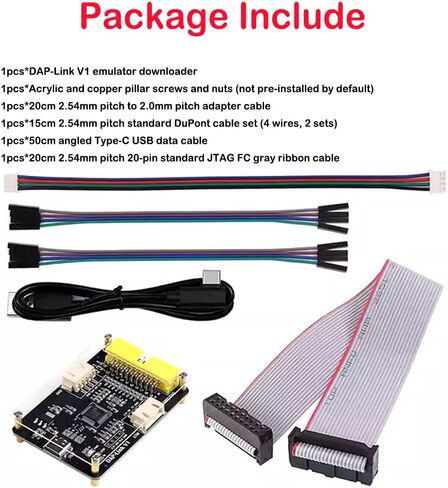

Package Includes

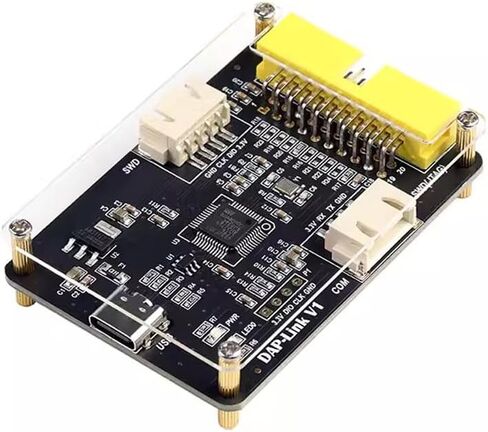

1pcs*DAP-Link V1 downloader
1pcs*Acrylic and copper pillar screws and nuts (not pre-installed by default)
1pcs*20cm 2.54mm pitch to 2.0mm pitch adapter cable
1pcs*15cm 2.54mm pitch standard DuPont cable set (4 wires, 2 sets)
1pcs*50cm angled Type-C USB data cable
1pcs*20cm 2.54mm pitch 20-pin standard JTAG FC gray ribbon cable
