Special Features

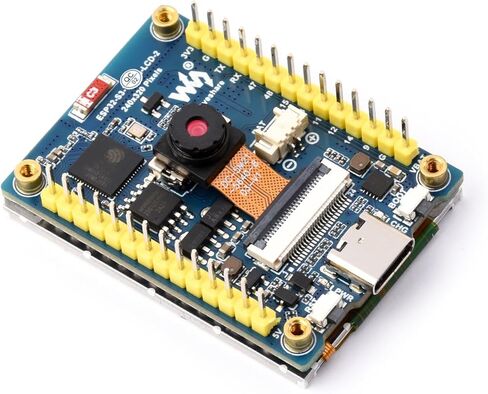

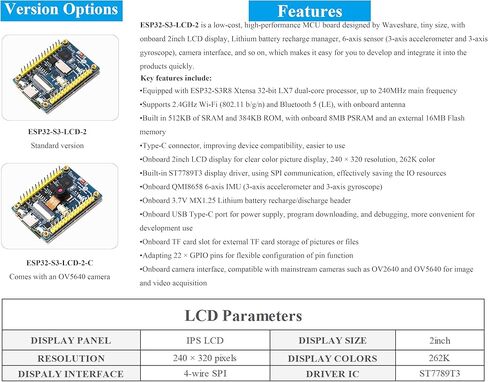

ESP32-S3 2inch Display Development Board, comes with an OV5640 camera. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Onboard 2inch LCD display for clear color picture display, 240 × 320 resolution, 262K color. IPS Display Panel, wide viewing angle.
Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use.
Built-in ST7789T3 display driver, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use.
Onboard TF card slot for external TF card storage of pictures or files. Adapting 22 × GPIO pins for flexible configuration of pin function.

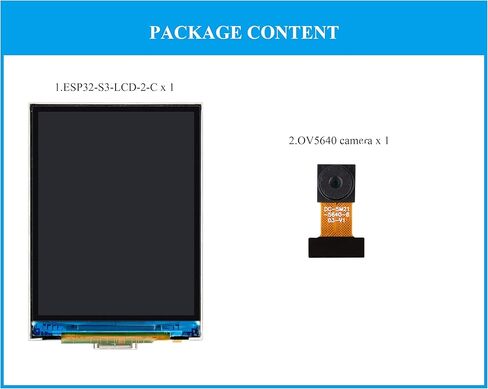

Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition. This version comes with OV5640 5MP camera module, suitable for image capture, video monitoring and other applications to meet different needs.
Comes with Online Development Resources /User Manual, please follow there: bit.ly/4jMHTL4
