Spec:
Item Type: Radio Transceiver
Material: ABS
Screen: 3.2 inch TFT resistive touch screen
Transmit Power: 5-15dBm (10MHz-2150MHz), 13-15dBm (2150-2750MHz), 0-5dBm (2750-4000MHz), -10-0dBm (4000-6000MHz)
RF Bandwidth: 20MHz
Sampling Rate: 2Msps-20Msps
Power Supply Transmission Interface: USB2.0 (external power supply)
Received Power: -5dBm
Clock Accuracy: 0.1-0.5pp
Working Frequency Range: 1MHz-6GHz
Duplex Mode: Half duplex transceiver
Storage Card: Shipped without storage card
Main Chip:
Processor: LPC43xxARM Cortex M4
Complex Programmable Logic Device: CPLD CoolRunner II
Wireless RF Transceiver: MAX2837(2.3-2.7GHz transceiver)
Mixer RFFC5072 (30MHz-6GHz)
Application: Radio communication technology research, information security technology research, for ZigBee, WiFi, for LTE, for ADS B, for DVB, etc.
Update:

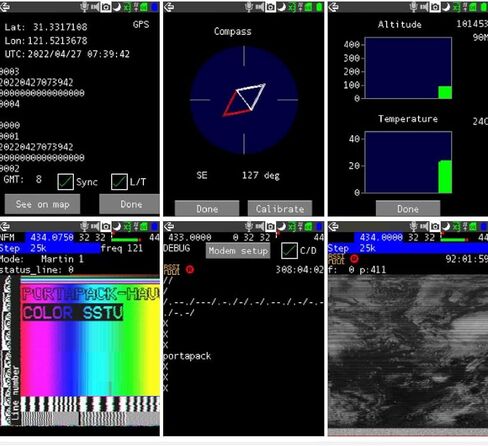

SSTV (robot8, for martin m1 and m2, for Scottie s1 and s2, pd 120) reception
NOAA reception

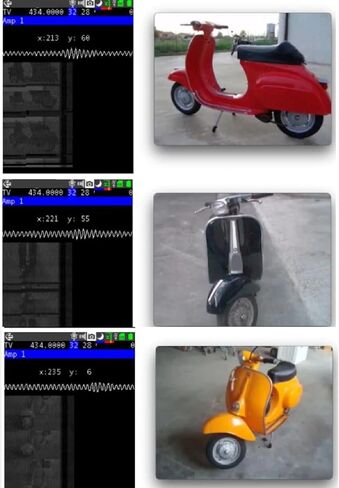

Improved analog TV receiver (with AGC and line synchronization)
Improved generator and soundboard (added AM support)
Built in microphone
Built in GPS receiver for position and time synchronization
Built in battery and battery indicator
Built in barometer
Built in

How to Use:
1. Turn the red toggle switch on the right side to the on position, press the middle button of the knob to enter the function interface.
2. Add the device to your software defined radio and forget about your laptop! Added LCD touch screen, navigation control, headphone jack, real time clock, and mini storage card slot.
3. Just add a USB battery to explore the radio spectrum anytime, anywhere. The firmware is suitable for fast ARM processors. No computer required (except for firmware reprogramming).

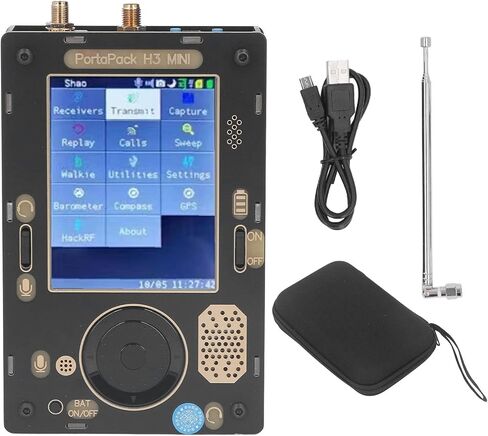

PackageList:
1 x Radio Transceiver (Storage Card Not Included)
1 x Antenna
1 x Data Cable
1 x Storage Bag
