Olivechard TFT LCD Screen Replacement with Frame for Samsung Galaxy A16 4G/5G – No Fingerprint Function
Compatible with SM-A166B, SM-A166B/DS, SM-A166P, SM-A166P/DS, SM-A166E, SM-A166E/DS, SM-A165F, SM-A165F/DS, SM-A165M, SM-A165M/DS

🔹 Key Differences: TFT vs. Original AMOLED
This replacement screen uses TFT LCD technology, which differs significantly from the original AMOLED display found on Samsung Galaxy A16.
Brightness & Color: TFT screens lack deep blacks and high contrast, making colors appear less vibrant.
Power Consumption: TFT displays consume more battery than AMOLED, reducing battery efficiency.
Thickness & Fit: This TFT screen is thicker than the original, which may slightly affect the overall fit within the phone frame.
Screen Area: The visible display area is slightly smaller, with a more noticeable bezel around the edges.

🔹 Pre-Installed Frame for Convenient Installation
This replacement comes with a pre-installed frame, making it easier to attach to your device without transferring components from the old screen. The frame enhances durability, providing additional stability and reducing the risk of screen breakage during installation.

🔹 Important Notice: No Fingerprint Recognition
This replacement screen does not support fingerprint unlocking. If fingerprint functionality is essential, consider an aftermarket OLED or OEM AMOLED screen replacement instead. Contact us for recommendations.

🔹 Professional Installation Recommended
Before installing, disconnect the battery flex cable from the motherboard to prevent short circuits.
Test the screen before fully installing it to confirm functionality.
If you're unfamiliar with screen replacement, seek professional assistance to avoid damage.

📦 Package Includes:

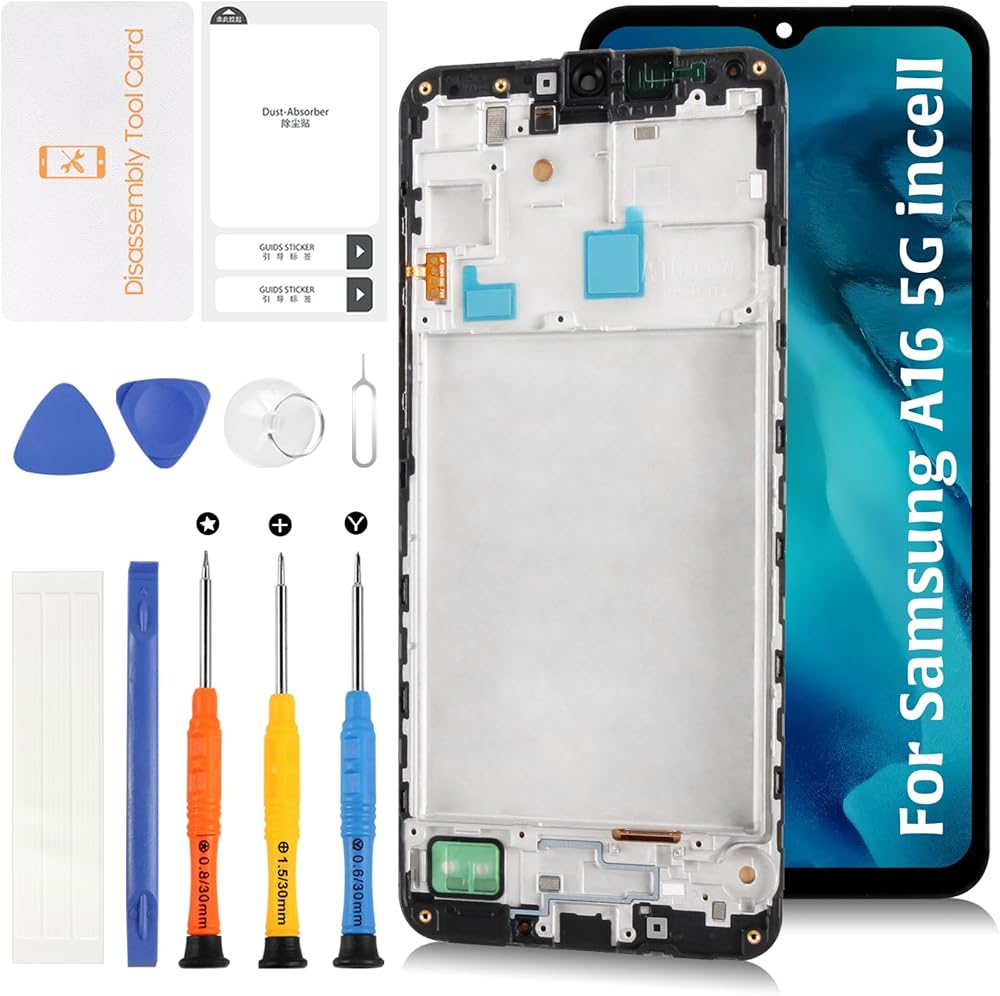

✔ 1x 6.6" TFT LCD & Touch Digitizer Assembly with Frame for Samsung Galaxy A16 4G/5G
✔ 1x Screwdriver Set
✔ 1x Pry Tool Kit
✔ 1x Adhesive Tape
✔ 1x Dust Removal Sticker

📞 Customer Support:
If you receive a damaged item or have installation difficulties, contact us immediately with a photo or video. We offer replacement or refund for non-human product damage and will assist with troubleshooting.

🛠🛠Simulation Test:
1️⃣During testing, do not remove any protective films or labels.
2️⃣Pay attention to static electricity issues. Ground yourself using an ESD (Electrostatic Discharge) wrist strap to prevent damage from static electricity.
⚠3️⃣After removing the old screen, the first step is to remove the flexible cable clamp between the battery and the device motherboard.
Disconnect the power supply connecting the screen flex cable.
After connecting the flex cable of the new screen, the final step is to install the flexible cable clamp of the battery.
It is important not to reverse this sequence.
4️⃣Then, connect the charging cable, turn on the phone power, and check if the screen is working properly.
5️⃣If abnormalities are observed, please contact us promptly with attached video or photos. Do not force installation.

Q: Is this screen compatible with all Samsung Galaxy A16 models?
A: Yes, it supports both A16 4G and A16 5G models, including SM-A166B, SM-A166P, SM-A166E, SM-A165F, and SM-A165M. Always check your model number before purchasing.

Q: Does this screen support fingerprint unlocking?
A: No, this TFT replacement screen does not support fingerprint functionality. If you need fingerprint recognition, consider an aftermarket OLED or OEM AMOLED replacement.

Q: How does the TFT display compare to the original AMOLED screen?
A: TFT screens offer lower brightness, contrast, and color accuracy than AMOLED. They also consume more battery and are thicker, affecting the overall fit.

Q: What are the benefits of choosing a screen with a frame?
A: A pre-installed frame simplifies installation, as you don't need to transfer the old frame from your broken screen. It also provides better structural stability and reduces the risk of damaging the new screen during installation.

Q: Can I install this screen myself?
A: If you have experience in phone repairs, you can follow YouTube tutorials. However, professional installation is strongly recommended to avoid accidental damage.

Q: What should I do if the screen doesn't work after installation?
A: Ensure all flex cables are securely connected and that you have disconnected and reconnected the battery cable during installation. If problems persist, contact our support team for troubleshooting.
